HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument
HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument
HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument
HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument
Specifications
Supply Ability :
10 Sets/Month
The first measuring range (mm) :
6 - 90
Brand Name :
HUATEC
Bar diameter application range(mm) :
Φ6 – Φ50
Payment Terms :
T/T,Western Union,Paypal
The second measuring range (mm) :
7-180
Delivery Time :
7-10 working days after receipt of your payment
maximum value permissible error of Bar diameter :
≤±1
Certification :
CE
Place of Origin :
China
Model Number :
HPT50(+)
MOQ :
1 SET
Packaging Details :
aluminum alloy box+Outer carton packaging
Description

HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument


Features
·investigation depth could reach 180mm

·Single comprehensive probe. No need to replace during test.

·back-lit screen let instrument can be normal used under the condition of insufficient light

·Machine software is complete .The report could be printed automatically connecting with computer


Technical Specification


Bar diameter application range(mm)

Φ6 – Φ50

maximum value permissible error of Bar diameter

≤±1

Protective layer thickness measuring range

The first measuring range (mm)

6 - 90

The second measuring range (mm)

7-180

The maximum error of reinforced protective layer thickness test value

The first measuring range (mm)

The second measuring range (mm)

6 - 59

7 - 79

≤±1

60 - 69

80 - 119

≤±2

70 -90

120 - 180

≤±4

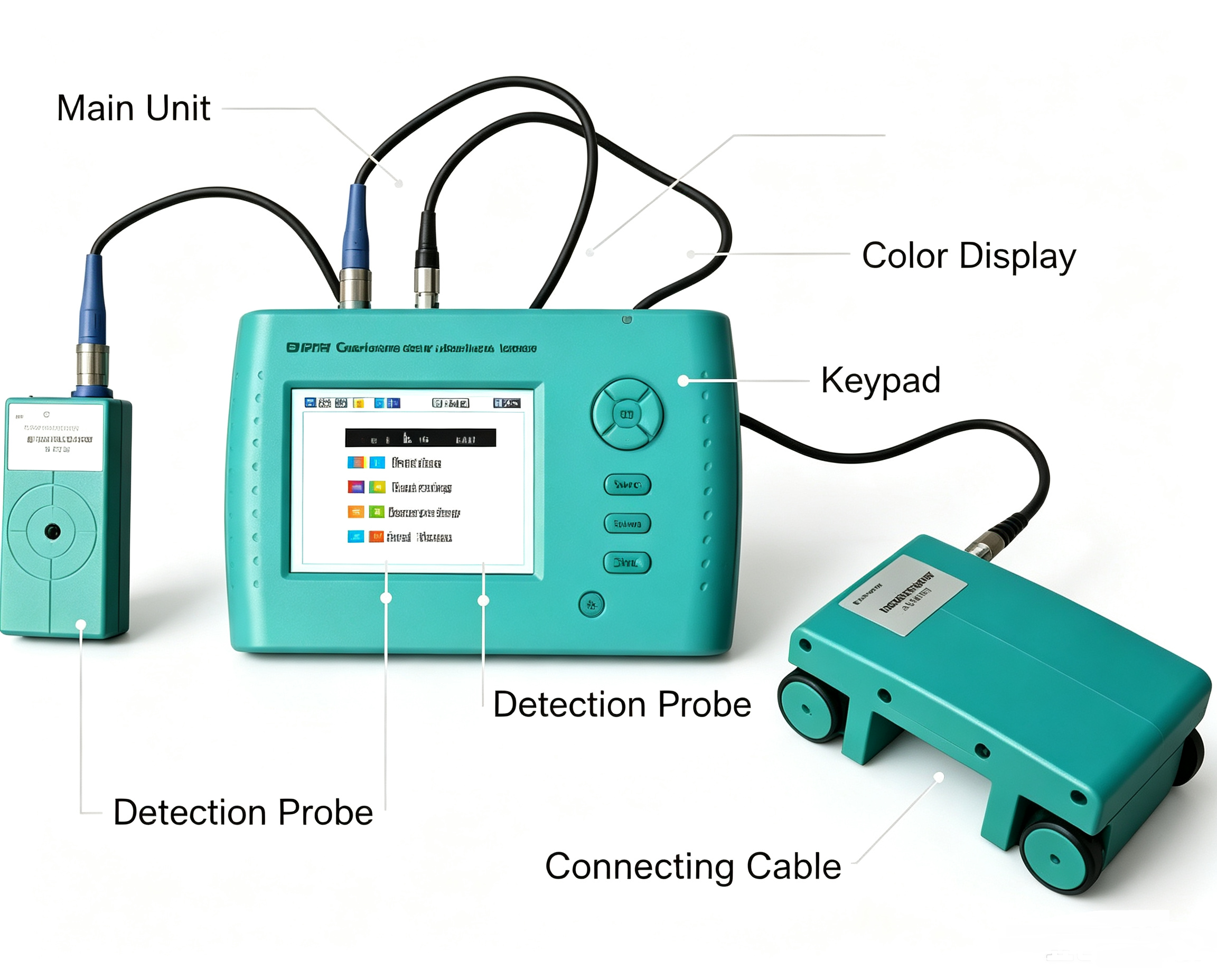

Standard Delivery

Optional Accessory

Main unit, Software

USB connecting cable

Power charger

Carborundum stone

Instruction manual

Warranty card

1

1

1

1

1

1

Printer

Power Charger for printer

(9V/2V)


Work environment condition
No strong alternating electromagnetic field

No corrosive gas in the air.

Avoid larger vibration and impact

Avoid the LCD panel contact with sunlight directly


Product usage

Testing concrete cover thickness

Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution

Estimation bar diameter

Detection of Cable and Plumbing pipe
