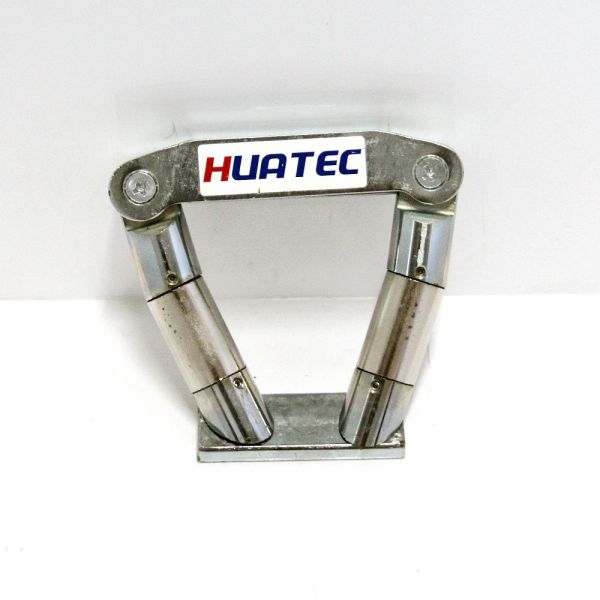

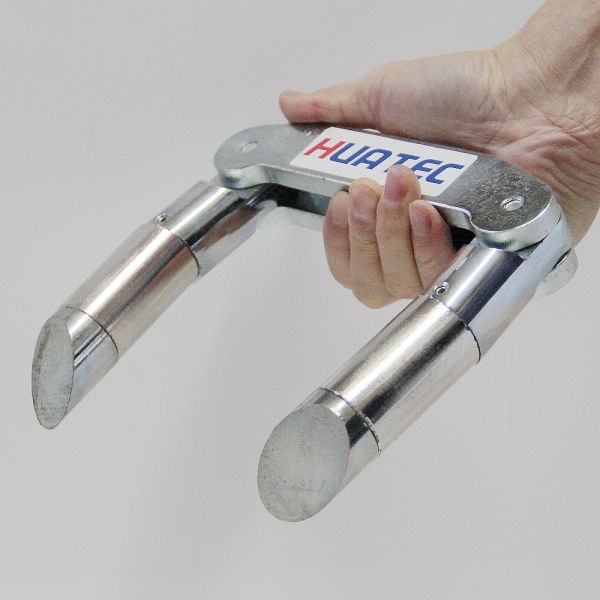

HCDX-300 Lightweight Magnetic Powder Yoke Rotatable Probe For High Altitude No Power Supply Ferromagnetic Workpiece NDT Inspection Tool
HCDX-300 Lightweight Magnetic Powder Yoke Rotatable Probe For High Altitude No Power Supply Ferromagnetic Workpiece NDT Inspection Tool
HCDX-300 Lightweight Magnetic Powder Yoke Rotatable Probe For High Altitude No Power Supply Ferromagnetic Workpiece NDT Inspection Tool
HCDX-300 Lightweight Magnetic Powder Yoke Rotatable Probe For High Altitude No Power Supply Ferromagnetic Workpiece NDT Inspection Tool
Specifications
Model Number :
HCDX-300
Certification :
CE
Brand Name :
HUATEC
MOQ :
1 pc
Lifting power :
>18kgs
Supply Ability :
10sets/Month
Payment Terms :
T/T,Paypal
Delivery Time :
7-10 working days after receipt of your payment
Outline dimension :
175mmX160mmX45mm
Place of Origin :
China
Magnetic electrode distance :
50-200mm continuous adjustable
Description

HCDX-300 Lightweight Magnetic Powder Yoke Rotatable Probe For High Altitude No Power Supply Ferromagnetic Workpiece NDT Inspection Tool


HCDX-300 Permanent Magnetic Yoke flaw detector, it is special use for magnetic powder inspection, the testing tool is small and portable, and do not need power supply.
It is mainly use on working shop, laboratory, and most suitable space where do not have power supply. Such as testing spot or flammable and explosive special environment.


Technical Parameters

Lifting power >18kgs,No.2 test block, A type clearly display
Magnetic electrode distance 50-200mm continuous adjustable
Outline dimension 175mmX160mmX45mm
Gross Weight 1.5kg


Operating principle
Utilize the strong magnetic field of permanent magnet; magnetize the surface of ferromagnetic material, It could form partial magnetic pole on or close the surface,
And scatter high-quality magnetic powder, It will be absorb on the flaw place by the magnetic pole,
By this mean, we could find the shape and situation of the flaw


Structure feature
The distance between magnetic pole is 50-200mm, and it is continuous and adjustable. The probe is rotatable, so it could detect flaw on various surface.
Also, it could work segmented and partial on large work piece, it is much more superior on these occasion that working at heights and inconvenience power supply

Operating method
Please get ready before you do flaw detection, take off the fill iron and test it, lifting power>12kg, it could be use.
When you do flaw detector, adjust the distance between the magnetic pole,so that the work piece could touch the yoke and work as the detector technology rule. Large work piece could segment and partial test.
After operate completed, short out the two yoke use the fill iron and make loop control, so that it could reduce the disturb of ground and outside magnetic.
