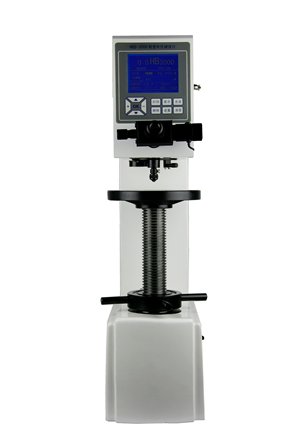

HB-3000DX Industrial Digital Brinell Hardness Tester Automatic Force Compensation Metal Material Hardness Test Equipment
HB-3000DX Industrial Digital Brinell Hardness Tester Automatic Force Compensation Metal Material Hardness Test Equipment
HB-3000DX Industrial Digital Brinell Hardness Tester Automatic Force Compensation Metal Material Hardness Test Equipment
HB-3000DX Industrial Digital Brinell Hardness Tester Automatic Force Compensation Metal Material Hardness Test Equipment
Specifications
Model Number :
HB-3000DX
Test force accuracy :
62.5～250kgf≤1% 500～3000kgf≤0.5%
Payment Terms :
T/T,Paypal
Distance of Indenter to outer wall :
155mm
Measuring device resolution :
0.1um
Dwell time :
0～99S
Certification :
CE
MOQ :
1 pc
Delivery Time :
7-10 working days after receipt of your payment
Hardness value resolution :
0.1HBW
Price :
USD5290/set - USD5980/set
Power supply :
AC220+5%,50~60Hz
Supply Ability :
10sets/Month
Max Height of Specimen :
200mm
Place of Origin :
China
Packaging Details :
Carton packing box
Brand Name :
HUATEC
Description

HB-3000DX Industrial Digital Brinell Hardness Tester Automatic Force Compensation Metal Material Hardness Test Equipment


Main features:

1. Adopts electronic automatically add load, with high accuracy sensor, have special closed-loop control system , automatic compensation for each shift

2. Eyepiece structure with digital encoder, measure D1, D2 value, LCD displays hardness value and D1, D2 value directly

3. Can be calibrated according to standard hardness block or length scale.

4. The test force can be modified automatically by standard dynamometer.

5. The hardness values of rockwell and vickers can be converted.

6. All data is stored in EXCEL format on U disk, or can choose built-in printer, RS232 is optional.

Technical specification:

Model

HB-3000DX

Brinell scale

HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125,HBW5/250, HBW5/750,HBW10/100,HBW10/250,HBW10/500,HBW10/1000, HBW10/1500,HBW10/3000

Test force(Kgf)

62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N),

187.5kgf(1839N),250kgf(2452N),500kgf(4903N),750kgf(7355N) 1000kgf(9807N),1500kgf(14710N),3000kgf(29420N)

Carried standard

BSEN 6506, ISO 6506, ASTM E10, GB/T231

Test force accuracy

62.5～250kgf≤1% 500～3000kgf≤0.5%

Measuring device resolution

0.1um

Hardness value resolution

0.1HBW

Dwell time

0～99S

Data output

LCD display

Data storage

All data is stored in EXCEL format on U disk, or can choose built-in printer

Max. Height of specimen

200mm

Distance of indenter to outer wall

155mm

Dimension

550×210×800mm

Weight

110kg

Power supply

AC220+5%,50～60Hz


Standard Accessories:

Item

Quantity

Item

Quantity

Eyepiece

1

Large, Medium, “V” shaped Testing Table

Each 1

Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter

Each 1

Standard block(HBW10/3000, HBW10/1000,HBW2.5/187.5)

Each 1

U disk, touch pen

1

Dust bag

1

Power cable

1

Fuse 2A

2

Certificate, warranty card

1

Manual

1
