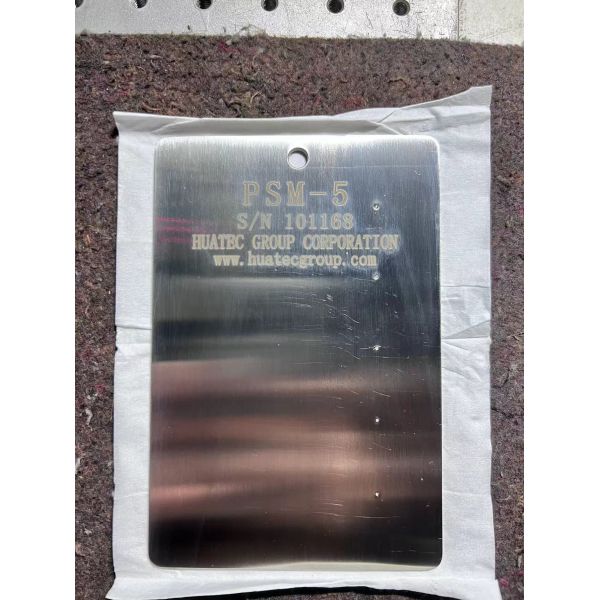

PSM-5 TAM Panel NDT Penetrant Testing Five Star Crack Test Panel Liquid Penetrant System Calibration Specimen for Fluorescent Dye Penetrant Inspection
PSM-5 TAM Panel NDT Penetrant Testing Five Star Crack Test Panel Liquid Penetrant System Calibration Specimen for Fluorescent Dye Penetrant Inspection
PSM-5 TAM Panel NDT Penetrant Testing Five Star Crack Test Panel Liquid Penetrant System Calibration Specimen for Fluorescent Dye Penetrant Inspection
PSM-5 TAM Panel NDT Penetrant Testing Five Star Crack Test Panel Liquid Penetrant System Calibration Specimen for Fluorescent Dye Penetrant Inspection
Specifications
Model Number :
PSM-5
MOQ :
1 SET
Delivery Time :
7-10 working days after receipt of your payment
Payment Terms :
T/T,Western Union,Paypal
Depth :
106µm
Material :
stainless steel
practicable tolerance :
+/-0.1mm
Certification :
CE
Price :
USD322-USD364/SET
Width :
0.2~0.5µm
Supply Ability :
10 Sets/Month
Test standard :
MIL-STD-6866、ASME E1417P & WA TAM146040
Place of Origin :
China
Packaging Details :
aluminum alloy box+Outer carton packaging
Brand Name :
HUATEC
Description

PSM-5 TAM Panel NDT Penetrant Testing Five Star Crack Test Panel Liquid Penetrant System Calibration Specimen for Fluorescent Dye Penetrant Inspection


The five point test piece is used to verify the sensitivity of the penetrant and the accuracy of the operating process. At the same time, the test block has a rough surface in the sandblasting area, which is used to verify the cleaning performance of the penetrant and the accuracy of the cleaning method. Its sensitivity is determined by the number of defects displayed and the diameter of each point and its radial domain.



Specification

 All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated.
Material: Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B
Depth 106µm
Width 0.2~0.5µm
Oxidizing property In -55℃ ~ 200℃ - store between three years not metamorphism,no oxidation,colour and lustre is silver
TRACEABLITY Calibration standards used are traceable to international standards





PSM-5 TAM Panel NDT Penetrant Testing Five Star Crack Test Panel Liquid Penetrant System Calibration Specimen for Fluorescent Dye Penetrant InspectionPSM-5 TAM Panel NDT Penetrant Testing Five Star Crack Test Panel Liquid Penetrant System Calibration Specimen for Fluorescent Dye Penetrant InspectionPSM-5 TAM Panel NDT Penetrant Testing Five Star Crack Test Panel Liquid Penetrant System Calibration Specimen for Fluorescent Dye Penetrant Inspection
