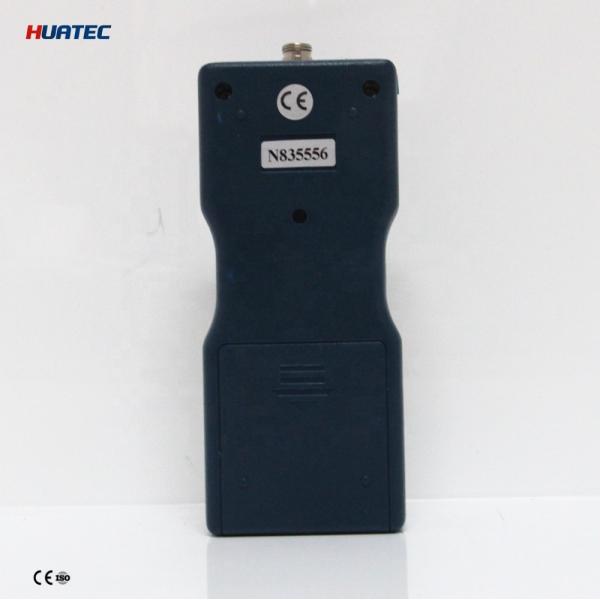

HG-5350 Industrial Vibration Monitoring Meter 3-in-1 Acceleration Velocity Displacement Measurement Auto Power Off Portable Machinery Fault Detector
HG-5350 Industrial Vibration Monitoring Meter 3-in-1 Acceleration Velocity Displacement Measurement Auto Power Off Portable Machinery Fault Detector
HG-5350 Industrial Vibration Monitoring Meter 3-in-1 Acceleration Velocity Displacement Measurement Auto Power Off Portable Machinery Fault Detector
HG-5350 Industrial Vibration Monitoring Meter 3-in-1 Acceleration Velocity Displacement Measurement Auto Power Off Portable Machinery Fault Detector
Specifications
Model Number :
HG-5350
MOQ :
1 pc
Delivery Time :
7-10 working days after receipt of your payment
Payment Terms :
T/T,Paypal
Velocity :
10Hz to 1KHz 0.1-200mm/s
Operating conditions :
0-+40℃(32℉-104℉), ≤90%RH
Accuracy :
＜5﹪
Certification :
CE
Price :
USD190/set - USD215/set
Displacement :
10Hz to 1KHz] 0.001-2.0mm
Supply Ability :
10sets/Month
Acceleration :
10Hz to 1KHz 10Hz to 10KHz 0.1-200m/s
Place of Origin :
China
Packaging Details :
Carton packing box
Brand Name :
HUATEC
Description

HG-5350 Industrial Vibration Monitoring Meter 3-in-1 Acceleration Velocity Displacement Measurement Auto Power Off Portable Machinery Fault Detector

Specifications:
Acceleration 10Hz to 1KHz 10Hz to 10KHz 0.1-200m/s
Velocity 10Hz to 1KHz 0.1-200mm/s ture RPM
Displacement 10Hz to 1KHz] 0.001-2.0mm
Accuracy:＜5﹪
Auto power off
Max hold
Operating conditions:0-+40℃(32℉-104℉), ≤90%RH

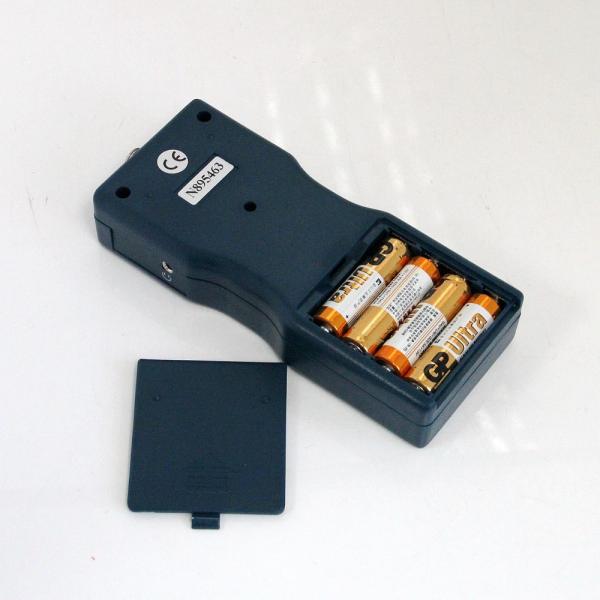

Power supply: 4x1.5V AA(UM-3)battery
Battery indicator: low battery indicator
Dimensions : 160x68x32mm
Weight: 181g(not including battery)

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank Rev(rpm) H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
80<H<132 132<H<225 225<H<400
Normal 600~3600 1.8 2.8 4.5
Good(R) 600~1800 0.71 1.12 1.8
1800~3600 1.12 1.8 2.8
Excellent(S) 600~1800 0.45 0.71 1.12
1800~3600 0.71 1.12 1.8

Standard Delivery:
Main Unit 1

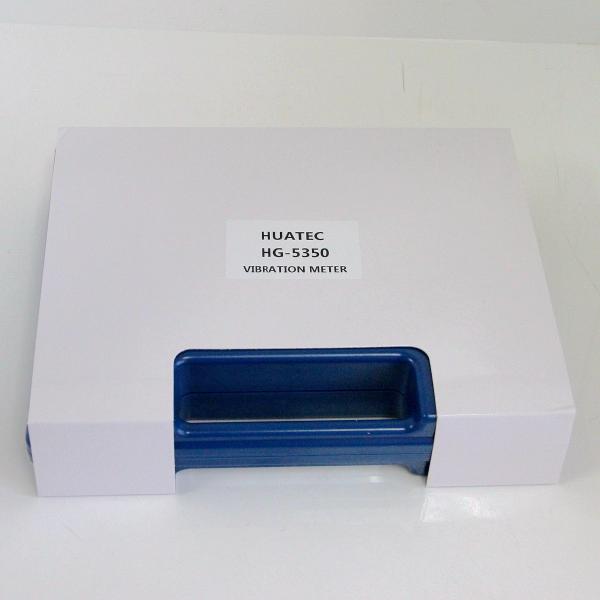

Carrying Case 1
Powerful Rare Earth Magnet 1
Piezoelectricity Transducer 1
Instruction Manual 1

Optional Accessories
Headset
RS-232C/USB data Cable with Software
Bluetooth Data Adapter with Software
