4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration
4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration
4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration
4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration
Specifications
Model Number :
4.5kg
MOQ :
1 SET
Delivery Time :
3-5 working days after receipt of your payment
Payment Terms :
T/T,Western Union,Paypal
Certification :
CE
Brand Name :
HUATEC
Price :
USD135-USD150/SET
Supply Ability :
10 Sets/Month
standard :
ISO 3452-3:1998(E),JB/T6066,NB/T47013-2015,ASME,GB/T26951-2011
Place of Origin :
China
Packaging Details :

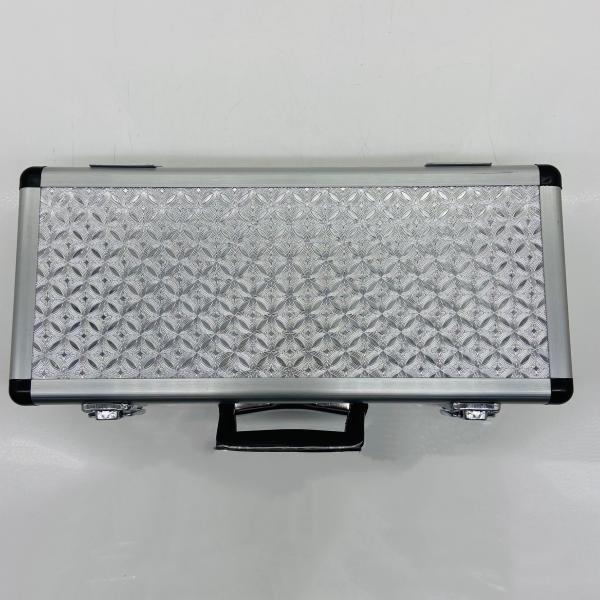

aluminum alloy box+Outer carton packaging
Description

4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration

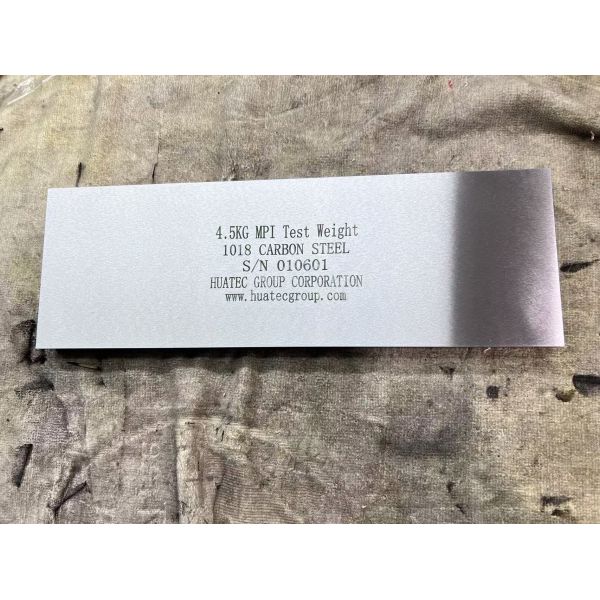

Weight Lift Test Bar designed for the calibration and certification of Magnetic Particle Inspection Yokes.

Test standard:ISO 3452-3:1998(E),JB/T6066,NB/T47013-2015,ASME,GB/T26951-2011


SPECIFICATION: All linear dimensions and heat treatment to the requirements of BS EN 27963:1992/ISO 7963:1985.where the tolerances are ﹢0.00 and -0.03mm
MATERIAL: Carbon steel 1018
CAST No: C-0805251
HEAT No: R-0805251
Treated to 920 degrees C for 30 minutes, water quenched,re-heating 650 degrees C for 2 hours, air cooled.
TRACEABILITY: Calibration standards used are traceable to international standards


NOTES: The lifting force of the magnetic powder test block is used to verify the size of portable magnetic particle detector lifting force
