AWS DSC Distance and Sensitivity Calibration Block Ultrasonic Angle Beam Transducer Calibration Test Block
AWS DSC Distance and Sensitivity Calibration Block Ultrasonic Angle Beam Transducer Calibration Test Block
AWS DSC Distance and Sensitivity Calibration Block Ultrasonic Angle Beam Transducer Calibration Test Block
AWS DSC Distance and Sensitivity Calibration Block Ultrasonic Angle Beam Transducer Calibration Test Block
Specifications
Model Number :
DSC
Supply Ability :
10pcs/month
Standard :
ASTM E164 and AWS 6.16. 1B.
Certification :
CE
Brand Name :
HUATEC
MOQ :
1pc
Packaging Details :
Carton packaging box
Payment Terms :
T/T,Paypal
Delivery Time :
3-5 working days
Dimensions :
1. 0”thick. Metric version available.
Place of Origin :
China
Material :
Carbon steel
Description

AWS DSC Distance and Sensitivity Calibration Block Ultrasonic Angle Beam Transducer Calibration Test Block


Standard: ASTM E 164-2013

The AWS-DSC Block measures distance, sensitivity, refracted angle and beam index calibration for angle beam transducers, per AWS and ASHTO requirements.


 ASTM E164 and AWS 6.16. 1B
Dimensions 1. 0”thick. Metric version available


Applications:

Calibration of transverse and longitudinal wave distance, setting determination of the sound beam point of incidence, angle of propagation and sensitivity.

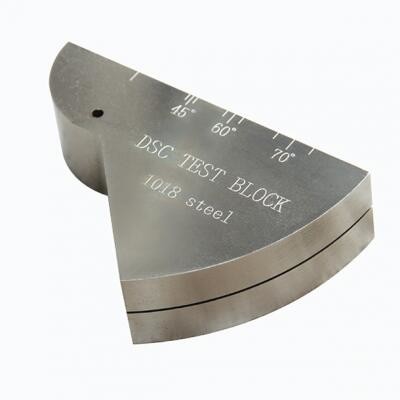

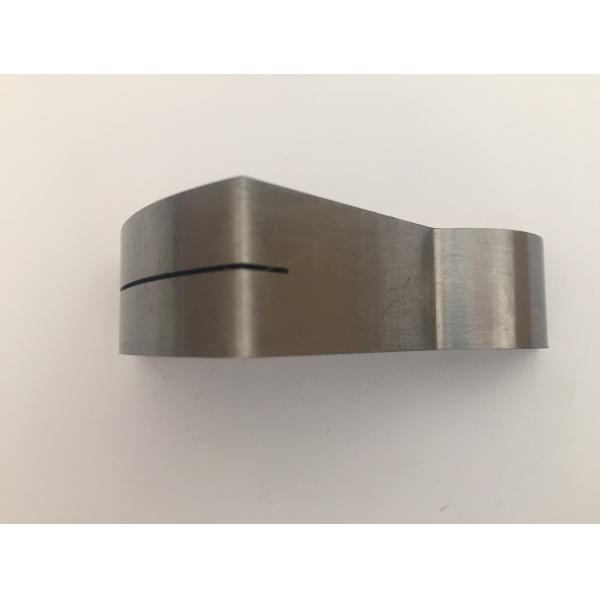

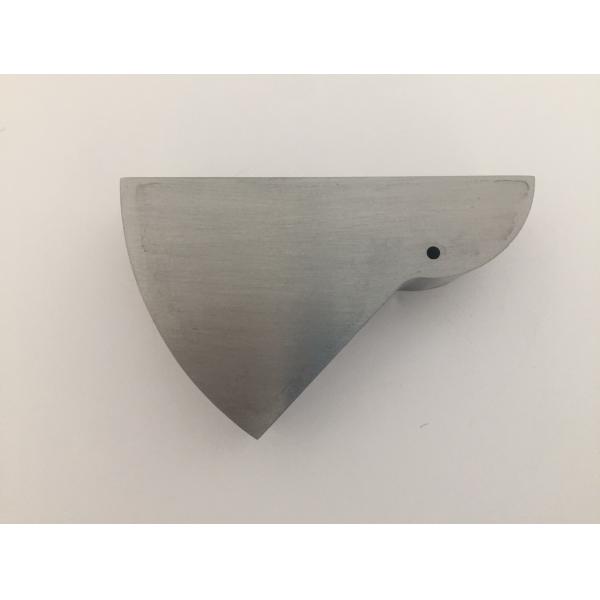

*AWS-type block used for shear wave distance and sensitivity calibration.Contains a 1.0" radius opposite a 3.0" radius. The 3.0”radius includes a 0.375* deep x .032”wide radiused slot. Also contains a 0° reference point for checking exit point on wedge, and a .125”diameter through hole and corresponding markings at 45°, 60 and 70° for measuring actual refracted angle.

AWS DSC Distance and Sensitivity Calibration Block Ultrasonic Angle Beam Transducer Calibration Test Block

AWS DSC Distance and Sensitivity Calibration Block Ultrasonic Angle Beam Transducer Calibration Test Block
