Specifications
Brand Name :
HUATEC
Model Number :
TG3300
Certification :
ISO
Place of Origin :
CHINA
Name :
ultrasonic thickness gauge
Use :
Detect wall thinning, corrosion, erosion in pipes, tanks, vessels
Application :
Construction & Steel Structure
Industries :
Steel & Metal Fabrication
Description

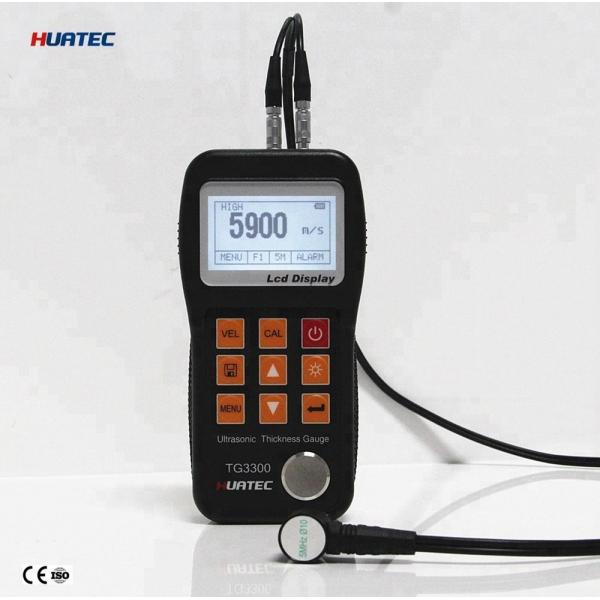

TG3300 metal plastic ceramic thickness gauge

HUATEC TG3300 is a portable digital ultrasonic thickness gauge used for non-destructive testing (NDT), measuring material thickness on one side without damaging the workpiece
Measure material thickness from one side without damageHUATEC GROUP CORPORATION
Detect wall thinning, corrosion, erosion in pipes, tanks, vessels
Verify thickness of metals, plastics, ceramics, composites, glass
High precision: 0.01mm resolution, range 0.75–300mm (steel)
Support metric/imperial, 2-point calibration, RS232 data output.

Product Specifications

No. Specification Item Detailed Parameters
1 Display 4.5 digits LCD with EL backlight
2 Measuring Range (0.75～300) mm (in Steel)
3 Sound Velocity Range (1000~9999) m/s
4 Resolution TG3000: 0.1mm

TG3100: 0.1mm / 0.01mm
5 Accuracy ±(0.5% Thickness + 0.04) mm, depends on materials and test conditions
6 Units Metric / Imperial unit selectable
7 Measurement Speed 4 readings per second (Single Point Measurement)

10 readings per second (Scan Mode)
8 Data Memory Up to 20 files storage, max 99 values per file
9 Power Source 2 × "AA" 1.5V alkaline batteries

100 hours typical operating time (EL backlight off)
10 Communication Port TG3100: RS232 serial port

TG3000: No communication port
11 Outline Dimensions 150mm × 74mm × 32mm
12 Net Weight 245g

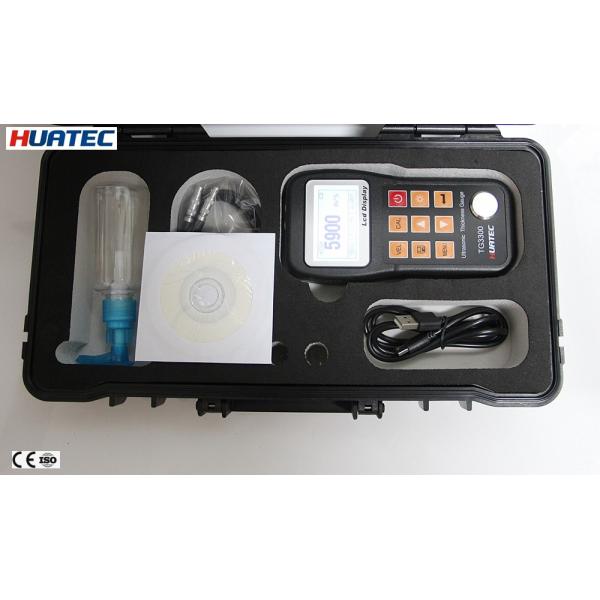

Configuration

No.

Item

Quantity

Note

Standard Configuration

1

Main body

1

2

Transducer

1

Model: N05/90°

3

Couplant

1

4

Instrument Case

1

5

Operating Manual

1

6

Alkaline battery

2

AA size

7

8

Optional Configuration

9

Transducer: N02

See Table3-1

10

Transducer: N07

11

Transducer: HT5

12

Mini thermal printer

1

Only for TG3100

13

Print cable

1

14

DataPro Software

1

15

Communication Cable

1
Applications
Pipe & Pipeline Inspection
Tank & Vessel Inspection
Corrosion & Erosion Monitoring
Incoming Quality Control (IQC)
Production Line Thickness Verification
Maintenance & In-Service Inspection
