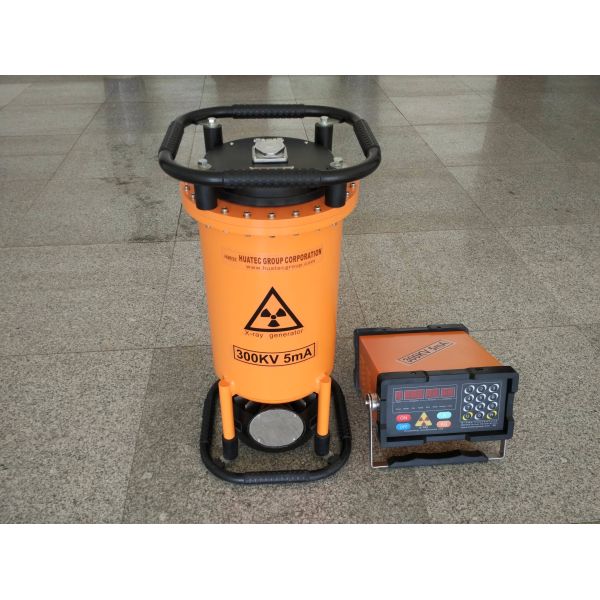

X-ray inspection equipment for welds/castings
X-ray inspection equipment for welds/castings
X-ray inspection equipment for welds/castings
X-ray inspection equipment for welds/castings
Specifications
Brand Name :
HUATEC
Model Number :
XXG3005
Certification :
Standard
Place of Origin :
China
MOQ :
1
Payment Terms :
D/P,T/T
Delivery Time :
5-8 working days
Packaging Details :
wooden box
Name :
X-ray inspection equipment for welds/castings
Use :
Pipeline weld inspection
Funcation :
Weld Inspection X-Ray
Keywords :
NDT X-ray scanner
Description

X-ray inspection equipment for welds/castings


X-Ray Flaw Detector is a non-destructive testing (NDT) device that uses X-rays to penetrate materials and reveal internal hidden defects without damaging the workpiece.
  • Detect internal flaws: cracks, porosity, slag inclusions, voids, incomplete penetration
  • Verify integrity of welds, castings, forgings, and critical components
  • Ensure safety and compliance in quality control (ISO, ASME, Nadcap)
  • Support real-time imaging, defect analysis, and reporting


TYPE

ITEM

XXG3005

Max Penetration thickness Steel (A3)

50mm

Focal Distance

600mm

Exposure Time

5min

Film Type

TianJin Ⅲ

Double lead foil Intensifying screen

0.03

Darkroom Disposal

20±2℃

Development

5minutes

Blackness

1.5

Input

Voltage (V)

220V±10% 50―60Hz

Capacity (KVA)

2.0

Output

Tube voltage (KVP)

150-300

Tube current (mA)

5

Stability

±1%

X-RAY

Tube

Focus mm2

1.5×1.5

Radiation Angle

40±5°

Sensitivity

k≤1.8%

Operation Mode

Intermittent operation, Radiating time to cooling time is 1:1

X-Ray

Controller

Dimension

270×270×140

Weight

9kg

Circuit Structure

Micro-computer control ,Modular structure,Voice prompt

X-RAY

Generator

Cooling

Force air cooling

Insulation

SF6 Gas Insulation

Working Pressure

0.35Mpa-0.45Mpa

Dimension

340×340×670

Weight (kg)

32kg

Working Temperature

-10℃―+40℃

X-ray flaw detectors can test Pipelines internal defects it include volumetric defects such as pores, shrinkage cavities,

and slag inclusions. ·Area type defects: cracks, lack of fusion, lack of penetration. ·Abnormal shape and size: internal

structural deformation, thickness changes, assembly errors (such as missing or misplaced parts). ·Density difference:

Identify foreign objects of different materials or densities.
