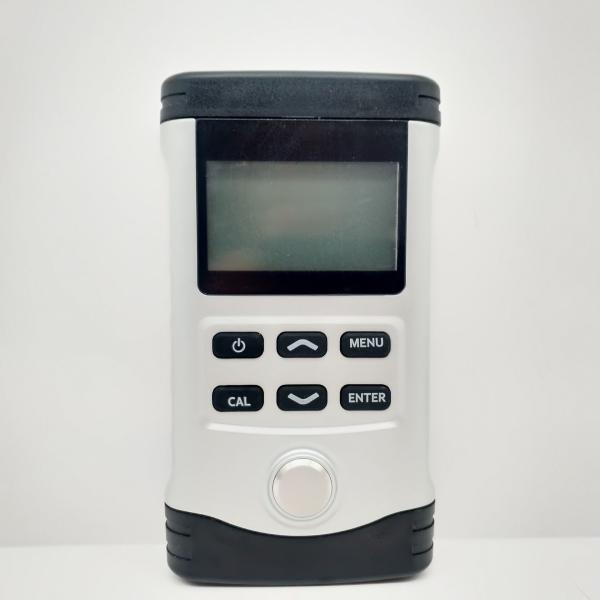

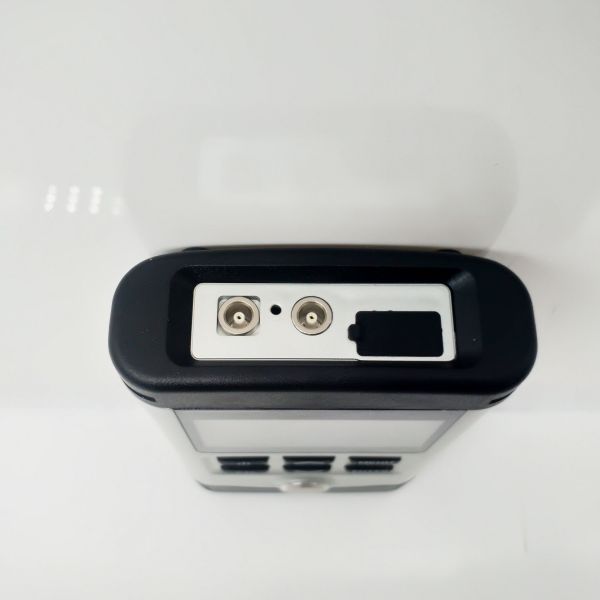

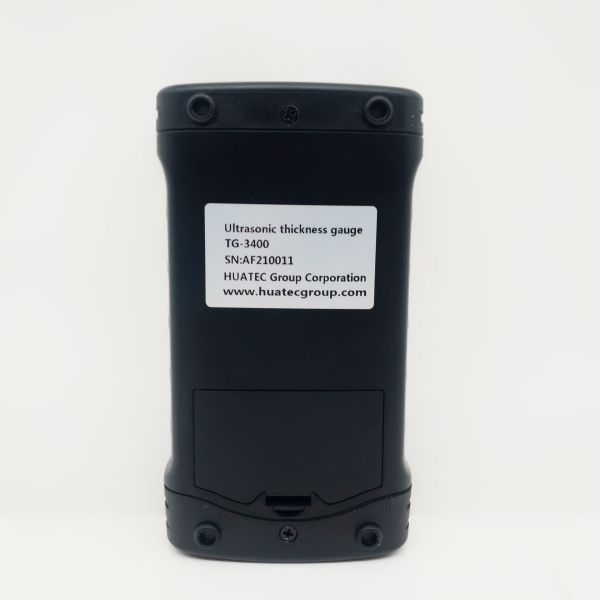

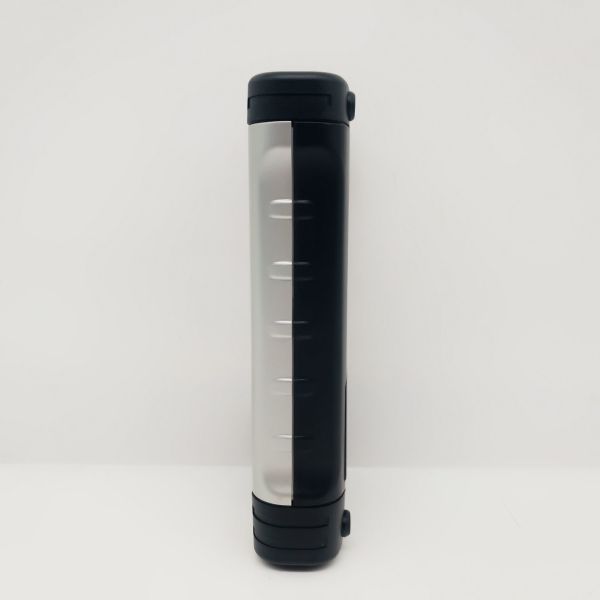

TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum
TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum
TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum
TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum
Specifications
Certification :
CE
Measuring Range :
0.65～500mm (45＃Steel)
Precision :
0.01mm
Payment Terms :
T/T,Paypal
Operating Environment :
Temperature Between -10℃～60℃Relative Humidity < 90％
Brand Name :
HUATEC
Probe Frequency :
2MHz-10MHz
Supply Ability :
5sets/Month
Model Number :
TG-3400
Packaging Details :
Carton packing box
Error :
1％ * Thickness Value±0.05mm
Sound Velocity Range :
1000～9990m/s
Place of Origin :
China
MOQ :
1 pc
Delivery Time :
5-7 working days after receipt of your payment
Description

TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum


Application: used for measuring the thickness of hard materials, such as: steel, stainless steel,aluminum, copper, chrome and other metal materials, as well as plastics, rubber, ceramics, glass and other nonmetals. The gauges are widely used in petroleum, chemical industry, electric power, boiler,metallurgy, shipbuilding, aviation, aerospace and other fields.

Specifications

Measuring Range 0.65～500mm (45＃Steel)
Sound Velocity Range 1000～9990m/s
Precision 0.01mm
Error 1％ * Thickness Value±0.05mm
Operating Environment Temperature Between -10℃～60℃Relative Humidity < 90％
Dimension 175*70*25mm
Probe Frequency 2MHz-10MHz
Display Auto Backlight

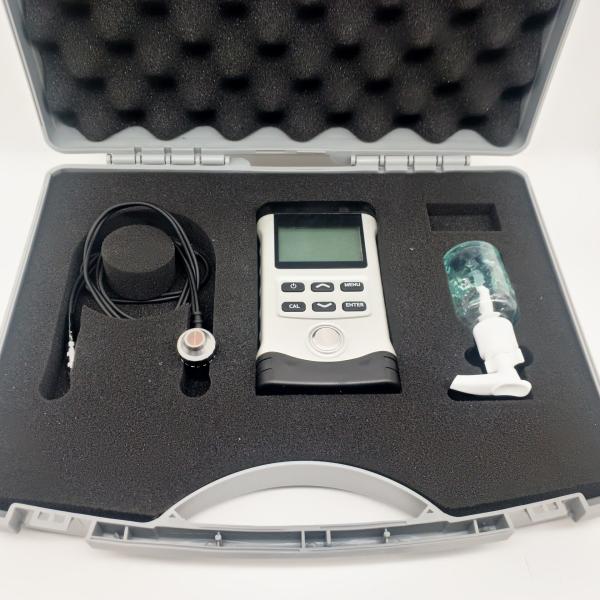

Standard accessories

1,TG-3400 Unit 1 Set

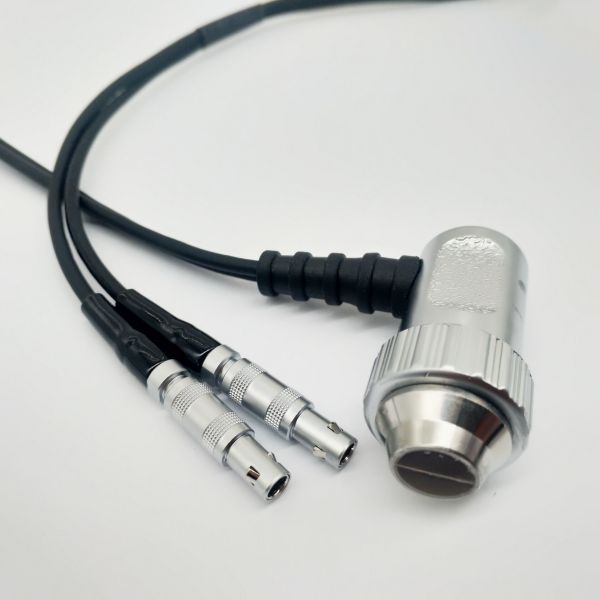

2,Probe (one forφ6 and one forφ10) 2

3,Couplant 1 Bottle

4,Steel File 1

5,Step Block 1

6,1.5V Battery 2

7,Instruction Manual 1

8,Guarantee Card and Certificate of Conformity 1

9,Carrying Case 1

Optional accessories:

1,Print and Connections for Communication and Printing 1

2,Microcomputer Communication Software 1

3,Tool Kit for Measurement 1

Reference Sound Velocity of Common Materials:

Material

Sound Velocity(M/S)

Material

Sound Velocity(M/S)

Aluminium

6400

Copper

4700

Zinc

4170

Stainless Steel

5790

Silver

3600

Brass

4640

Gold

3240

Tin

3230

Steel & Iron

5900

Organic Glass

2730

Note: The thickness of many other materials can also be measured.

TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum

TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum

TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum

TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum

TG-3400 Portable Industrial Ultrasonic Thickness Tester 1000-9990m/s Sound Velocity for Boiler Shipbuilding Petroleum
