HEF-CC100 Lightweight Multi-channel Eddy Current Inspection Equipment 8-Frequency Sorting Module Nuclear Power Auto Parts Laboratory Detector
HEF-CC100 Lightweight Multi-channel Eddy Current Inspection Equipment 8-Frequency Sorting Module Nuclear Power Auto Parts Laboratory Detector
HEF-CC100 Lightweight Multi-channel Eddy Current Inspection Equipment 8-Frequency Sorting Module Nuclear Power Auto Parts Laboratory Detector
HEF-CC100 Lightweight Multi-channel Eddy Current Inspection Equipment 8-Frequency Sorting Module Nuclear Power Auto Parts Laboratory Detector
Specifications
Model Number :
HEF-CC100
Brand Name :
HUATEC
MOQ :
1 pc
Packaging Details :
Carton packing box
Hardware amplification factor :
1dB ～ 39.9db, continuously adjustable, step: 1dB
Supply Ability :
10sets/Month
Gain range :
0.0dB ~ 99.0dB continuously adjustable, step: 0.1dB
Filtering factor :
0-30000
Detection channels :
1-8 (scalable as needed)
Payment Terms :
T/T,Paypal
Gain ratio :
（X/Y）0.1～10.0
Delivery Time :
7-10 working days after receipt of your payment
Frequency range :
5 Hz ~ 12 MHz, continuously adjustable, 2-4 independent selectable frequency, multiple mixing unit
SNR :
≥ 10dB (up to 30dB)
Certification :
CE
Place of Origin :
China
Description
HEF-CC100 Lightweight Multi-channel Eddy Current Inspection Equipment 8-Frequency Sorting Module Nuclear Power Auto Parts Laboratory Detector
Key Features
  • Multi-channel detector with digital, intelligent, highly integrated features (1-8 channels optional)
  • Advanced computer technology with DSP digital processing and FPGA technology
  • Powerful data output capabilities and excellent scalability
  • Comprehensive software features including parameter saving, data storage, and report analysis
  • Supports flexible customization of various high-performance detection probes

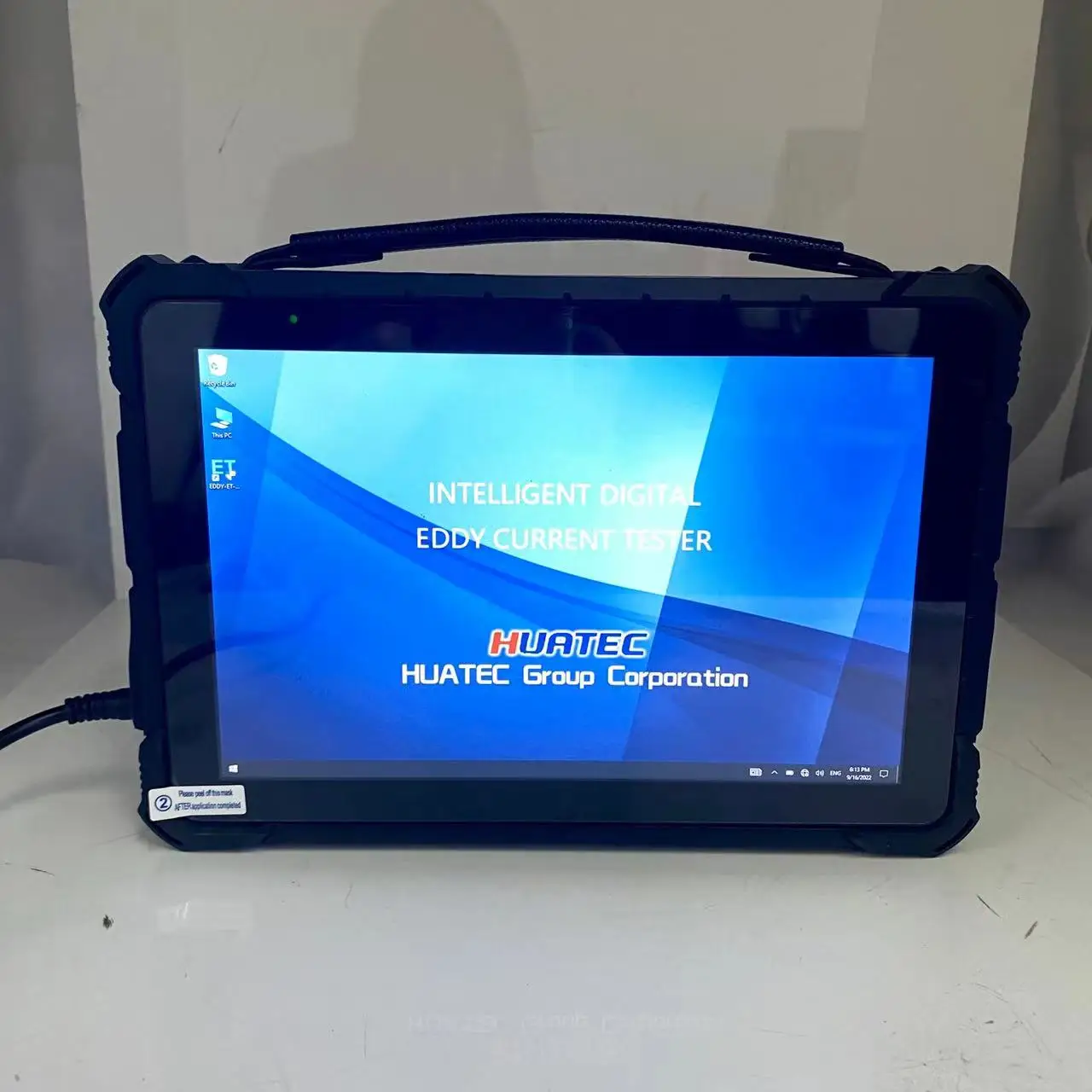

  • Intuitive operation with 10.1 inch capacitive full touch color screen
  • Multi-language support with quick language switching
Technical Specifications
Attribute Value
Detection channels 1-8 (scalable as needed)
Frequency range 5 Hz ~ 12 MHz, continuously adjustable, 2-4 independent selectable frequency
Gain range 0.0dB ~ 99.0dB continuously adjustable, step: 0.1dB
Gain ratio (X/Y) 0.1～10.0
SNR ≥ 10dB (up to 30dB)
Filtering factor 0-30000
Hardware amplification factor 1dB ～ 39.9db, continuously adjustable, step: 1dB
Additional Specifications
  • Phase rotation: 0 ~ 360° continuously adjustable, step: 1°
  • Probe drive level: 1～16 adjustable
  • Maximum measurement range: 10 ~ 10000, step 1
  • Multiple excitation modes: DP/di; differential, absolute and various customized probes
  • Stability: 16 hours ≤ 2dB
  • Working temperature: 0℃～ +45℃, storage temperature: -20℃～ +50℃
  • Dimensions: 280 × 190 × 70mm (L × W × H), Weight: < 2.5kg
  • Battery life: Continuous operation for 6h (depending on environment)
Application Areas

Nuclear power, electric power, petroleum, chemical industry, metallurgy and other in-service testing, teaching in colleges and universities, various laboratories, special equipment and other industries.

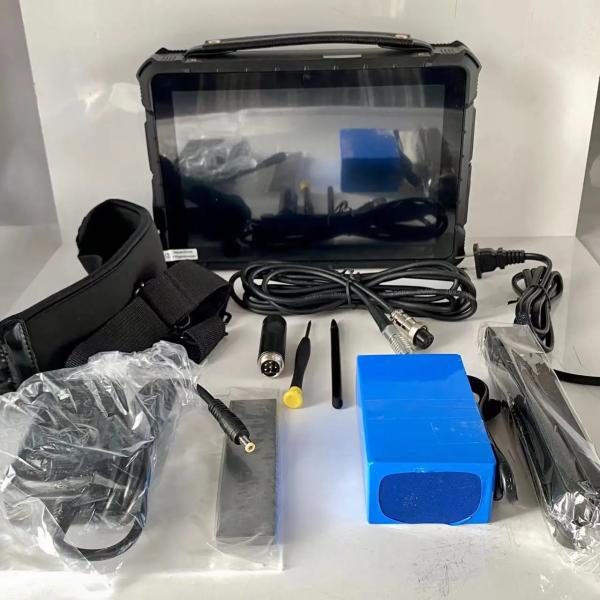

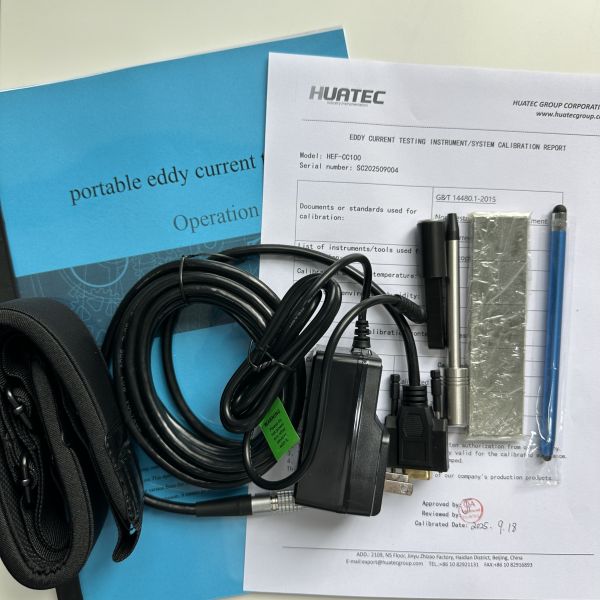

Standard Configuration
  • Host: A multifunctional intelligent digital eddy current tester
  • Probe and accessories: Customizable according to user's material, specification and shape
  • Standard test block (optional or customized)
  • Operation manual: One copy
  • Warranty card: One copy
  • Product list: One copy
