HUATEC HG-5020i vibration measuring instruments
HUATEC HG-5020i vibration measuring instruments
Specifications
Model Number :
HG-5020i
Brand Name :
HUATEC
MOQ :
1PCS
Temperature: Operation :
0oC to 50 oC
Range :
0~2.0mm
Prode :
5mm and 8mm probes
Display :
3 1/2 digit display for acceleration, velocity or displacement
Certification :
ISO, CE, GOST
Place of Origin :
China
Description

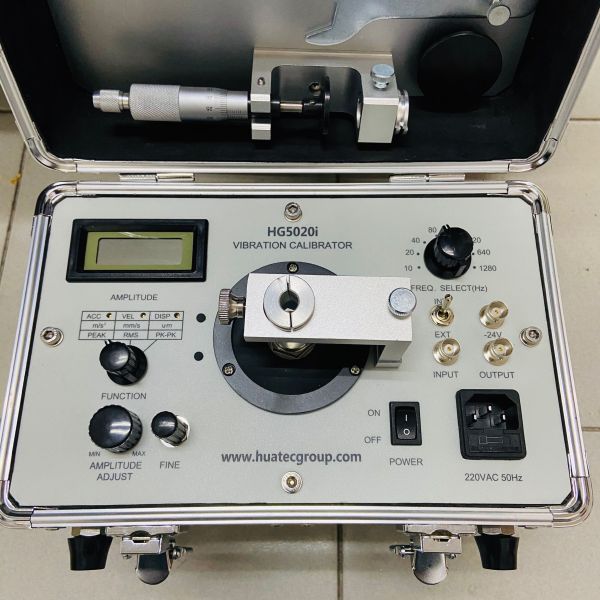

HG-5020i Vibration Calibrator

Can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instruments. Standard sine signals at frequency 10, 20, 40, 80, 160, 320, 640 and 1280 Hz can be generated from the calibrator. It also has a socket for input from an external signal generator for any vibration frequency and even sweep signal. The amplitude of the, acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated.

HG-5020i combines sine signal generator, power amplifier, standard transducer and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Maximum vibration amplitude and maximum load
Wt
Freq		 <100g <250g <650g
a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *

Size: 280 x 180 x 250(mm) Gross Weight: 10 kg

Temperature: Operation: 0oC to 50 oC Storage: -20 oC to 70 oC

Power: 220Vac (optional 110Vac)

Specifications

Frequency: Fixed 10, 20, 40, 80, 160, 320, 640, 1280Hz and external input for any signal with continuous frequency adjustment, sweep, non-sine

Amplitude accuracy:

  • Acceleration(@30m/s2 pk) 40Hz to 320Hz + 0.3dB + 1digit
  • 20Hz to 1280Hz + 0.5dB +1digit
  • Velocity ( @25mm/sec pk) 40Hz to 320Hz +0.5dB +1digit
  • Displacement(@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit

Proximity probe linearity

Prode: 5mm and 8mm probes Range: 0~2.0mm

Display: 3 1/2 digit display for acceleration, velocity or displacement
