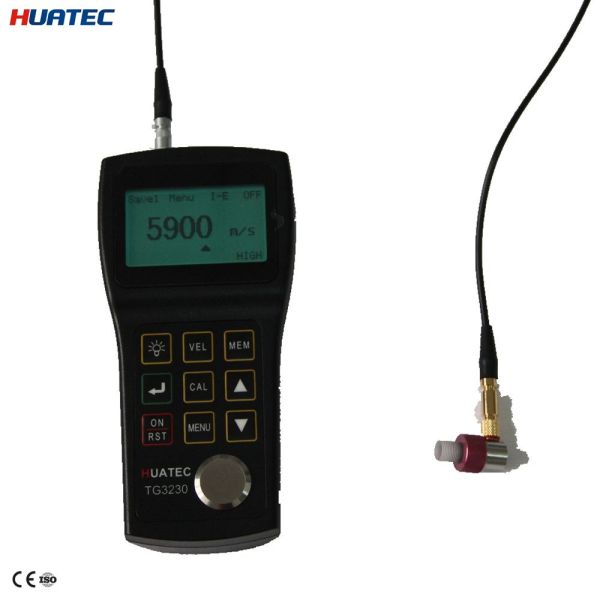

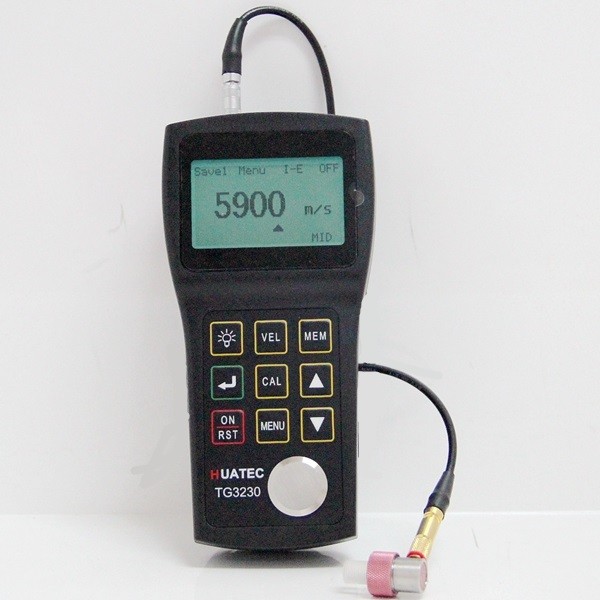

TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument
TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument
TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument
TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument
Specifications
Resolution :
mm : 0.1 / 0.01 / 0.001 inch : 0.01 / 0.001 / 0.0001
MOQ :
1 SET
Packaging Details :
Outer carton packaging
Model Number :
TG-3230
Memory Capacity :
5 arrays are divided to store 500 thickness values
Certification :
CE
Sound Velocity :
1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)
Measuring Refresh Frequency :
4Hz in normal mode, up to 25Hz
Place of Origin :
China
Delivery Time :
7-10 working days after receipt of your payment
Accuracy :
±0.005mm or 0.0002 inch (if thickness < 3mm) ±0.05mm or 0.002 inch (if thickness < 20mm)
Display :
42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)
Brand Name :
HUATEC
Supply Ability :
10 Sets/Month
Payment Terms :
T/T,Western Union,Paypal
Description

TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument


FEATURES

  • HIGH ACCURACY AND RESOLUTION UP TO 0.001mm or 0.0001 inch
  • MEASURING ULTRA THIN SAMPLE AS LOW AS 0.15mm or 0.006 inch
  • DISPLAY UNITS : IMPERIAL and METRIC
  • AUTOMATIC SELF CALIBRATION
  • COUPLANT INDICATOR
  • AUTOMATIC POWER OFF DEVICE
  • HIGH-LOW LIMIT ALARM
  • LCD BRIGHTNESS ADJUST
  • LOW BATTERY INDICTOR

TECHNICAL SPECIFICATIONS

Measuring Range (for steel)

Interface-Echo Mode:

(I-E or Standard Mode)

1.50mm – 20.0mm

(0.059in – 0.787 in)

Echo-Echo Mode:

(E-E or High Precision Mode)

0.3mm – 10.0mm

(0.012in – 0.394in)

Measuring Accuracy

±0.005mm or 0.0002 inch (if thickness < 3mm)

±0.05mm or 0.002 inch (if thickness < 20mm)

Display Resolution

mm : 0.1 / 0.01 / 0.001

inch : 0.01 / 0.001 / 0.0001

Sound Velocity Range

1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)

Measuring Refresh Frequency

4Hz in normal mode, up to 25Hz

Memory Capacity

5 arrays are divided to store 500 thickness values

Multiple Calibrations

One point or Two Point

Display LCD

42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)

Power Source

2 pcs. 1.5v AA size batteries

Communication Port

USB port or Serial RS 232 port (Optional)

Continuous working period

About 200 hours (with backlight off)

Power off

Auto power off if idle for 4 minutes

Operating Temperature

-10 °C to +50 °C

Unit Size

2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).

Weight

200g

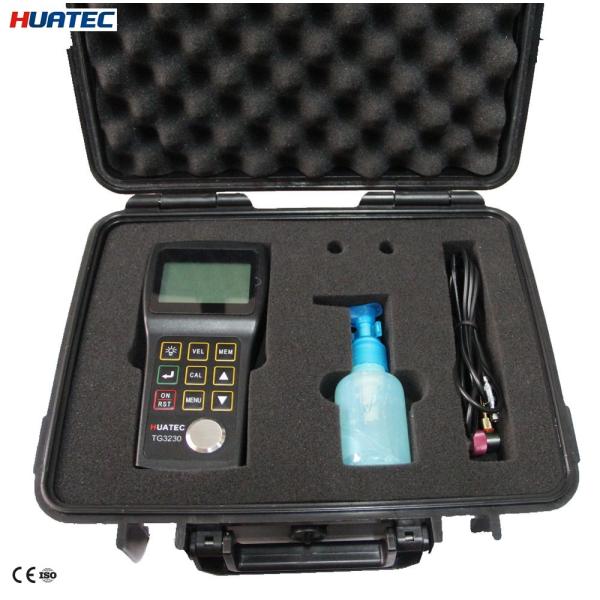

STANDARD DELIVERY

  1. Main unit with Calibration block (4.00 mm)
  2. Precision Probe (D11R) with Replaceable Delay Tip
  3. Coupling Paste
  4. Operation Manual
  5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
  6. Carrying Case

OPTIONAL ACCESSORIES

1. Single element probe

2. Probe cable

3. Wedge

4. Rubber sheath

5. Communication Option

6. Calibration step block
