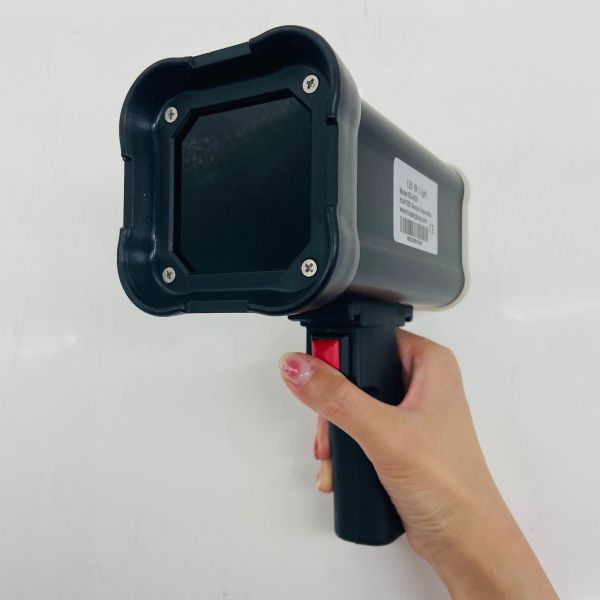

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light
DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light
DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light
DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light
Specifications
Model Number :
DG-8K
Brand Name :
HUATEC
MOQ :
1 pc
Packaging Details :
Carton packing box
Light distribution characteristics :
Central light distribution
Supply Ability :
10sets/Month
Flux error :
0-40℃ ±10%
Power :
UV LED-9VA Light-3VA
Payment Terms :
T/T,Paypal
Power Supply :
AC100- 240V，50/60Hz
Delivery Time :
7-10 working days after receipt of your payment
Irradiation area at depth of 380mm: (≥1000uw/cm²) :
Approximately 200mm in diameter
UV(Light)-FLUX Indoor temperature 25℃ :
10000uW/cm²
Wavelength :
Room temperature 25℃, 365nm±3nm (UVA)
Certification :
CE
Place of Origin :
China
Description

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light


Features

*Energy saving is only 9VA of power consumption.


*The average lifespan of a light source of 30000H.

*Original imported light source UVLED.

*The UV-B content is 0.

*3-4 hours of battery life.

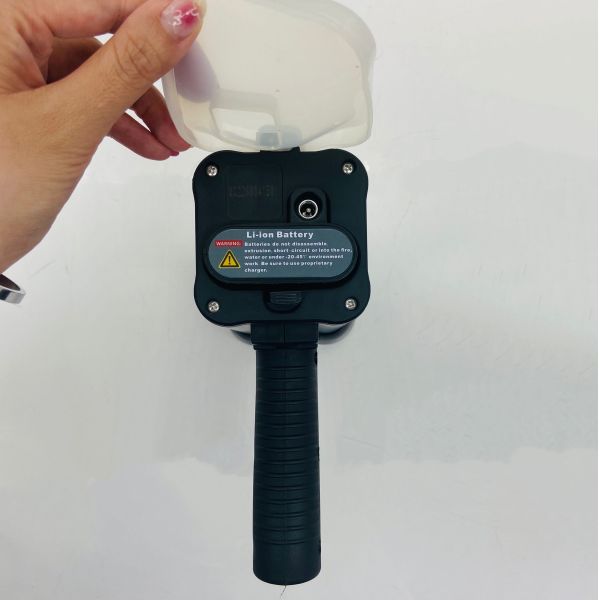

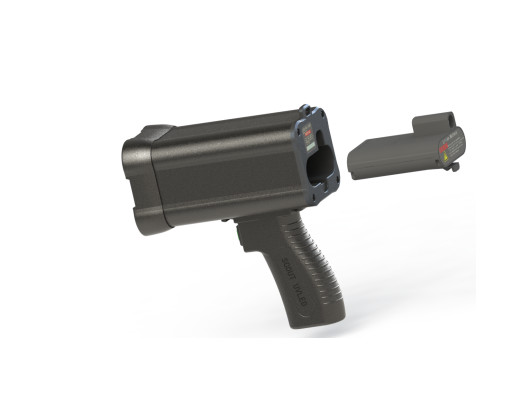

*Quick battery replacement

*Weight containing less than 500g of batteries.

*There is no external wiring.

*Quartz and optical glass module, non PMMA material, excellent weather resistance.

*Continuous working with an external surface temperature rise of less than 5K (5 ℃).

*No preheating required, instantly reaching 100% power.

*Equipped with dual functions of UV and white light, with one hand switching. 3pcs UV lamps, 1pc white light lamp


Project

Parameter / method

Form

Handheld

UV(Light)-FLUX

25 ℃ Room temperature ,Calibration at 380mm

UV -FLUX 10000uW/cm² Light-MAX1500LUX

Coverage area calibration at 380mm

Approximately 200mm in diameter

FLUX error

0-40℃ ±10％

Light distribution characteristics

Center light distribution

power supply

AC100-240V 50/60Hz

power

UV LED-9VA Light-3VA

wavelength

Room temperature 25℃ 365nm±3nm(UVA)

Dimensions

137mm(W)*73mm(D)*175mm(H)

weight

498g

battery capacity

2200mA/H 12.6V

Charging time

3-4H

Battery life (cumulative time)

UV LED 3-4H or Light 7H


















DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light
