H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment
H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment
H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment
H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment
Specifications
Supply Ability :
5sets/Month
Resolution :
3072 x 2560
Adapter In :
AC 100-240V,50-60Hz
Model Number :
H3025HWN-EG
MOQ :
1 pc
Packaging Details :
Carton packing box
Payment Terms :
T/T,Paypal
Energy Range :
40-370 KV
Certification :
CE
Delivery Time :
10-15 working days after receipt of your payment
Pixel Pitch :
100 μm
Brand Name :
HUATEC
Active Area :
304 x 254 mm
Place of Origin :
China
Description

H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment

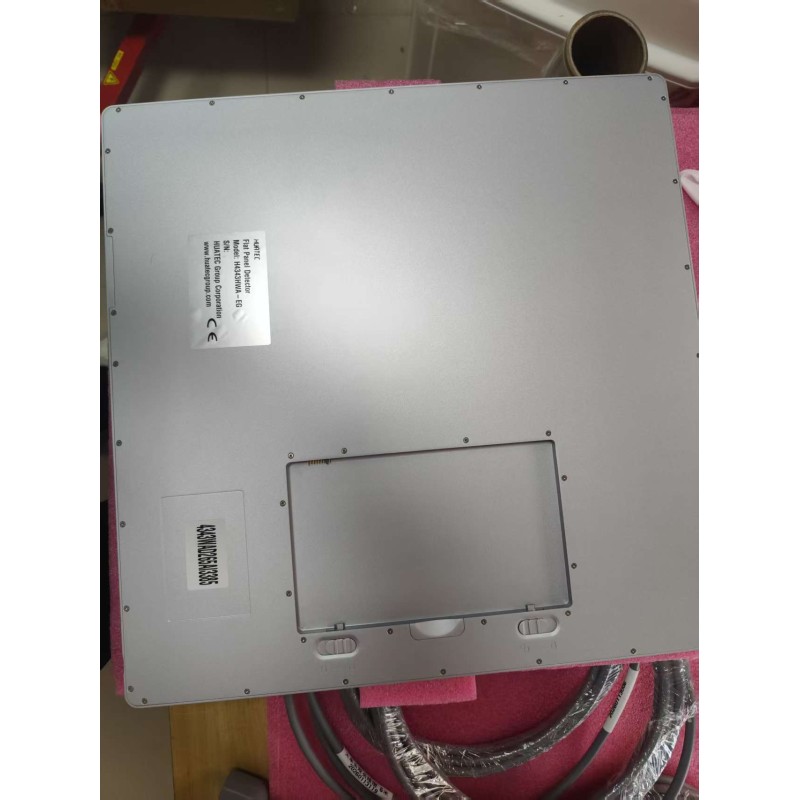

H3025HWN-EG is the first domestic battery replaceable, and the protection level of IP67 amorphous silicon detector, suitable for pipeline detection, security and other fields.



Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet/802.11ac 5G

Acquire Time wired: 1s; wireless: 3s

Exposure Control Software

Max exposure time 180s

Inbuilt memory 4 GB DDR4, 8 GB SD card

Mechanical
Dimension 333.6×322×18.0 mm

Weight 3.5kg

Material Aluminum and magnesium alloys

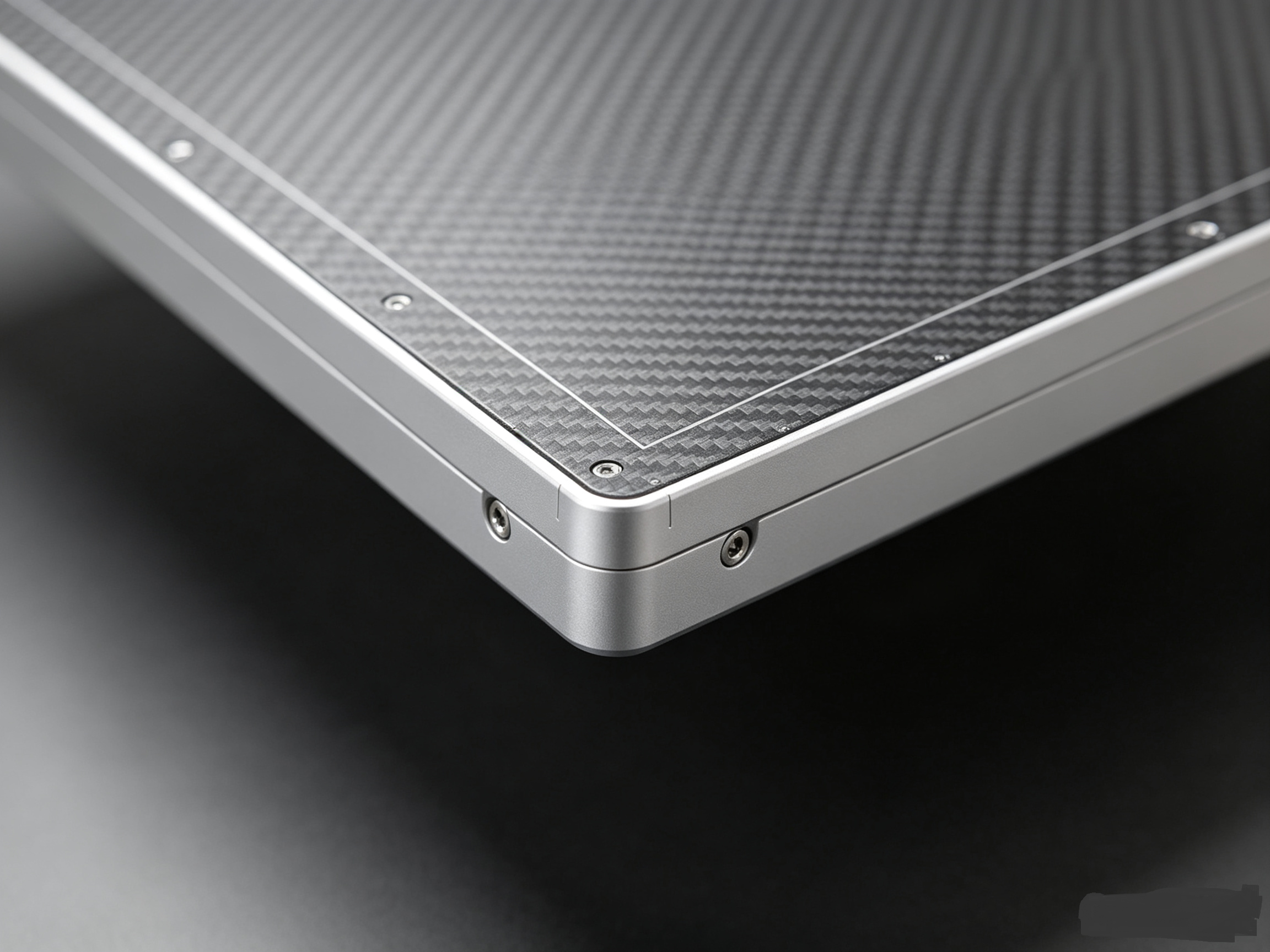

Front Panel Carbon fiber

The narrowest side distance ≤5mm

Enviromental

Temperature -20-50°C (operating)；-20-50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP54 can be updated to IP67


Sensor
Receptor Type a-Si

Scintillator Gos / CsI:TI

Active Area 350 x 430 mm

Resolution 2560 x 3072

Pixel Pitch 139 μm


Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W


Image Quality
Limiting Resolution 3.5 LP/mm

Energy Range 40-160 KV

Dynamic Range ≥84 dB

Sensitivity ≥0.54 LSB/nGy

Ghos <1% 1st frame

DQE 42% @(1 LP/mm)

28% @(2 LP/mm)

MTF 68% @(1 LP/mm)

38% @(2 LP/mm)

20% @(3 LP/mm)
