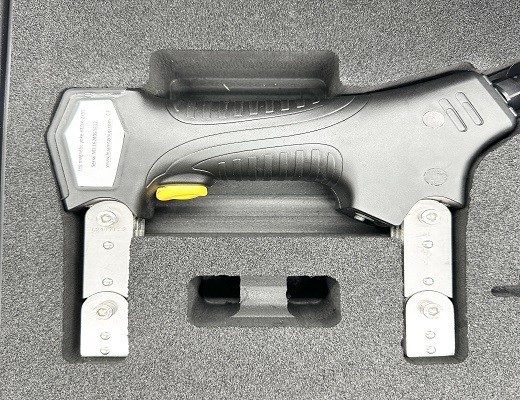

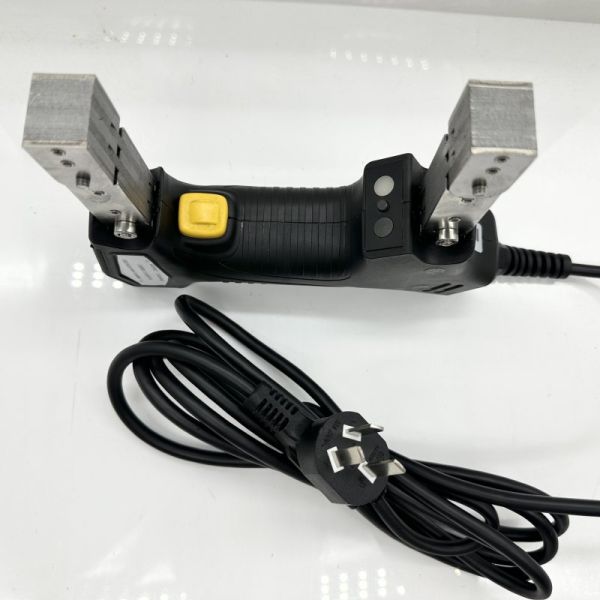

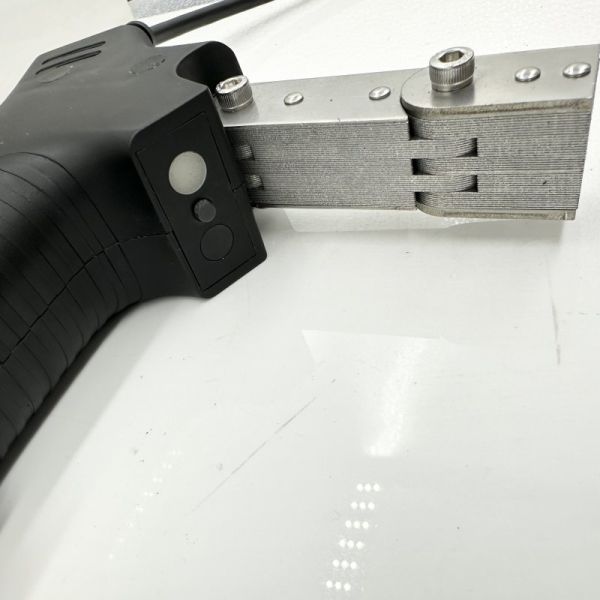

HCDX-220S Portable AC Magnetic Yoke UV White Light Switchable Magnetic Particle Testing Yoke for Weld Inspection
HCDX-220S Portable AC Magnetic Yoke UV White Light Switchable Magnetic Particle Testing Yoke for Weld Inspection
HCDX-220S Portable AC Magnetic Yoke UV White Light Switchable Magnetic Particle Testing Yoke for Weld Inspection
HCDX-220S Portable AC Magnetic Yoke UV White Light Switchable Magnetic Particle Testing Yoke for Weld Inspection
Specifications
Payment Terms :
T/T,Paypal
Lifting force :
AC ≥68.6N (7kg)
Probe volume :
200mm*48mm*158mm
Probe light source :
white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/c㎡
Model Number :
HCDX-220S
MOQ :
1 pc
Delivery Time :
7-10 working days after receipt of your payment
Probe weight :
2.0kg
Price :
USD333/set - USD377/set
Probe pole distance :
60mm-205mm (spacing range is adjustable)
Certification :
CE
Supply Ability :
10sets/Month
Sensitivity :
A1 type standard test film 15/100 grooves display clearly, better than the national standard
Brand Name :
HUATEC
Packaging Details :
Carton packing box
Place of Origin :
China
Description

HCDX-220S Portable AC Magnetic Yoke UV White Light Switchable Magnetic Particle Testing Yoke for Weld Inspection


Application

•Surface and subsurface testing for field testing

•Surface and subsurface for spot inspections

•Surface and subsurface for in-service inspections

•Surface and subsurface for demanding environments

•Surface and subsurface for weld inspection


Technical parameter

Sensitivity A1 type standard test film 15/100 grooves display clearly, better than the national standard
Lifting force AC ≥68.6N (7kg)
Probe pole distance 60mm-205mm (spacing range is adjustable)
Probe light source

white light illuminance ≥2000Lux;

Uv lamp irradiance ≥5000μw/c㎡
Probe volume 200mm*48mm*158mm
Probe weight 2.0kg


Functional characteristics

1. AC working mode, the probe can be directly connected to the AC220V power supply for flaw detection work;

2, The lamp is automatically lit when magnetized, the UV and white light can be switched, and the fluorescent magnetic particle detection and ordinary magnetic particle detection can be performed;

3, High sensitivity, strong lifting force, high flaw detection efficiency.

4. Duty time: 5 minutes on,1 minute off

5. Sealed, durable construction


Standards conform

• ASME BPVC

• ASTM E709

• ASTM E1444

• ASTM E3024

• ISO 9934-3


Configuration list

1, D type yoke 1 set (including 3 meters probe line)

2. 1 set of auxiliary tools

3, User manual, warranty card, certificate of 1

4, Instrument box
