TG-2200CN High Accuracy Eddy Current Thickness Meter Single Continuous Mode for Anodizing Paint Enamel Coating Test
TG-2200CN High Accuracy Eddy Current Thickness Meter Single Continuous Mode for Anodizing Paint Enamel Coating Test
TG-2200CN High Accuracy Eddy Current Thickness Meter Single Continuous Mode for Anodizing Paint Enamel Coating Test
TG-2200CN High Accuracy Eddy Current Thickness Meter Single Continuous Mode for Anodizing Paint Enamel Coating Test
Specifications
Supply Ability :
10sets/Month
Min. Radius Workpiece :
convex 2 mm / concave 4 mm
Accuracy :
± 1~3%n or ± 2.5 um
Min. Sample Thickness :
0.1 mm
Model Number :
TG-2200CN
Certification :
CE
MOQ :
1 pc
Packaging Details :
Carton packing box
Operating Conditions :
Temp. 0~40 °C, Humidity: 10~90 %RH
Payment Terms :
T/T,Paypal
Min. Measuring Area :
2 mm
Delivery Time :
7-10 working days after receipt of your payment
Resolution :
0.1 um
Brand Name :
HUATEC
Measuring Range :
0~200 um / 0~8 mil
Place of Origin :
China
Description

TG-2200CN High Accuracy Eddy Current Thickness Meter Single Continuous Mode for Anodizing Paint Enamel Coating Test


Applications:

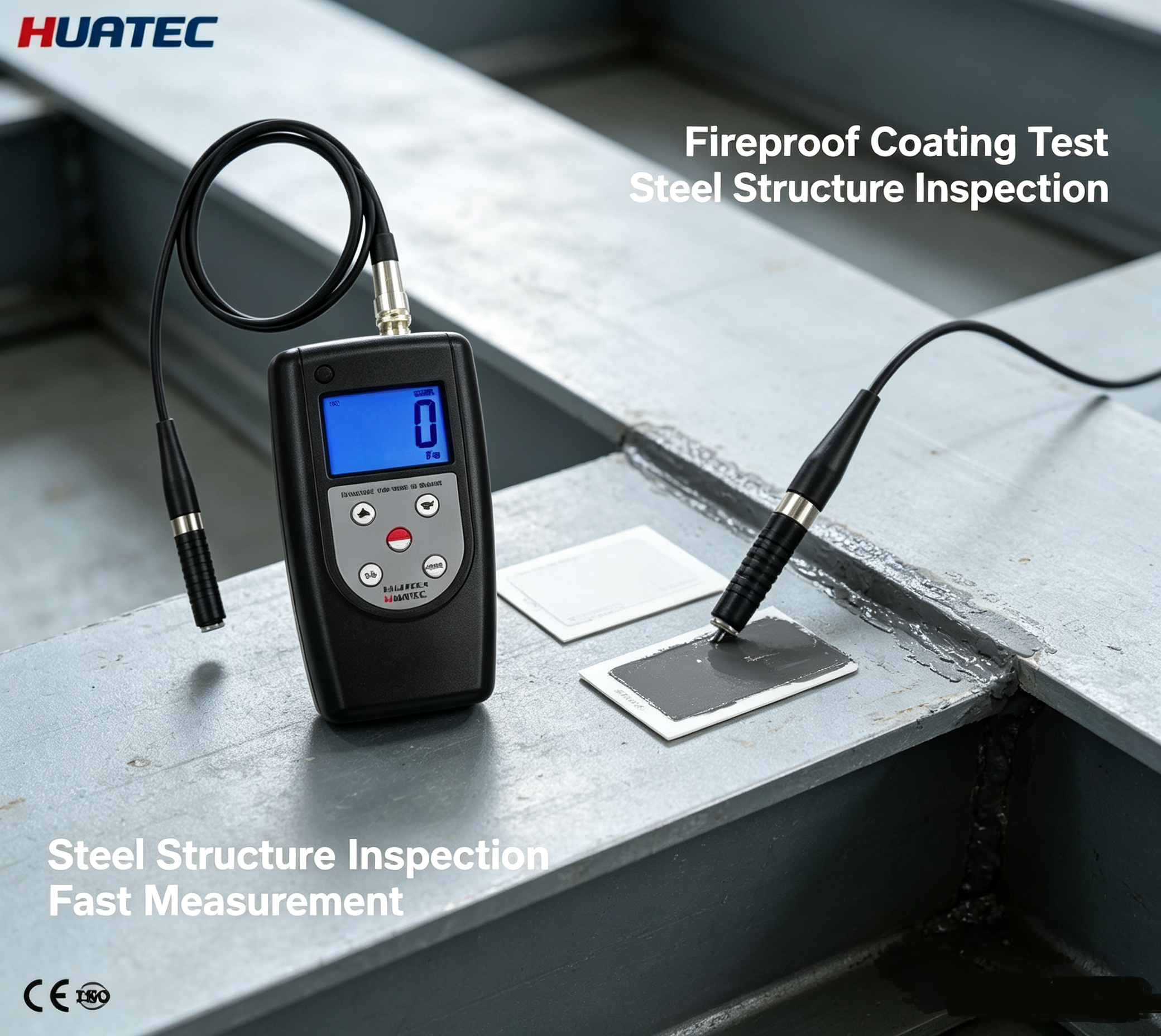

The TG-2200CN measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Operating Principle

Eddy Current (NF)

Measuring Range

0~200 um / 0~8 mil

Resolution

0.1 um

Min. Radius Workpiece

convex 2 mm / concave 4 mm

Min. Measuring Area

2 mm

Min. Sample Thickness

0.1 mm

Accuracy

± 1~3%n or ± 2.5 um

Auto Power Off

Metric / Imperial

Convertible

Battery Indicator

Low Battery Indicator

Operating Conditions

Temp. 0~40 °C, Humidity: 10~90 %RH

Power Supply

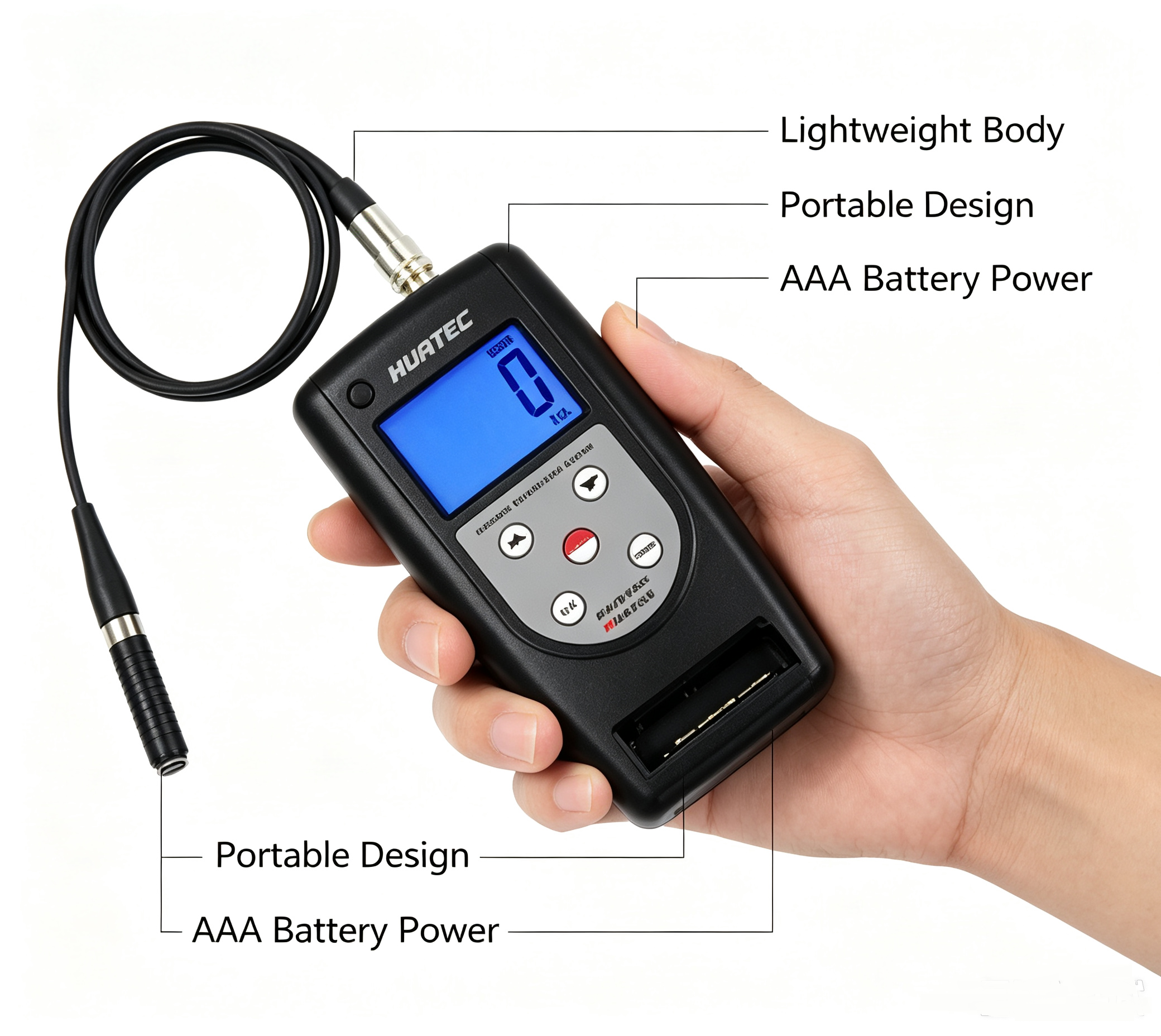

4 x 1.5 V AAA (UM-4) Battery

Dimensions

140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )

Weight

215 g (Not Including Batteries)

Features Details Accessories:

* Specially for the thickness measurement of coating on small work piece.

* Measuring methods: eddy current (N).

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Auto memory of calibration value, and auto recognize the substrate.

* Operation process have buzzing reminder, while no buzzing in continuous mode.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth data output” choice.

* Separate Type can provide several type probe, measure can be more flexibility.

Standard Accessories:

1. Main Unit

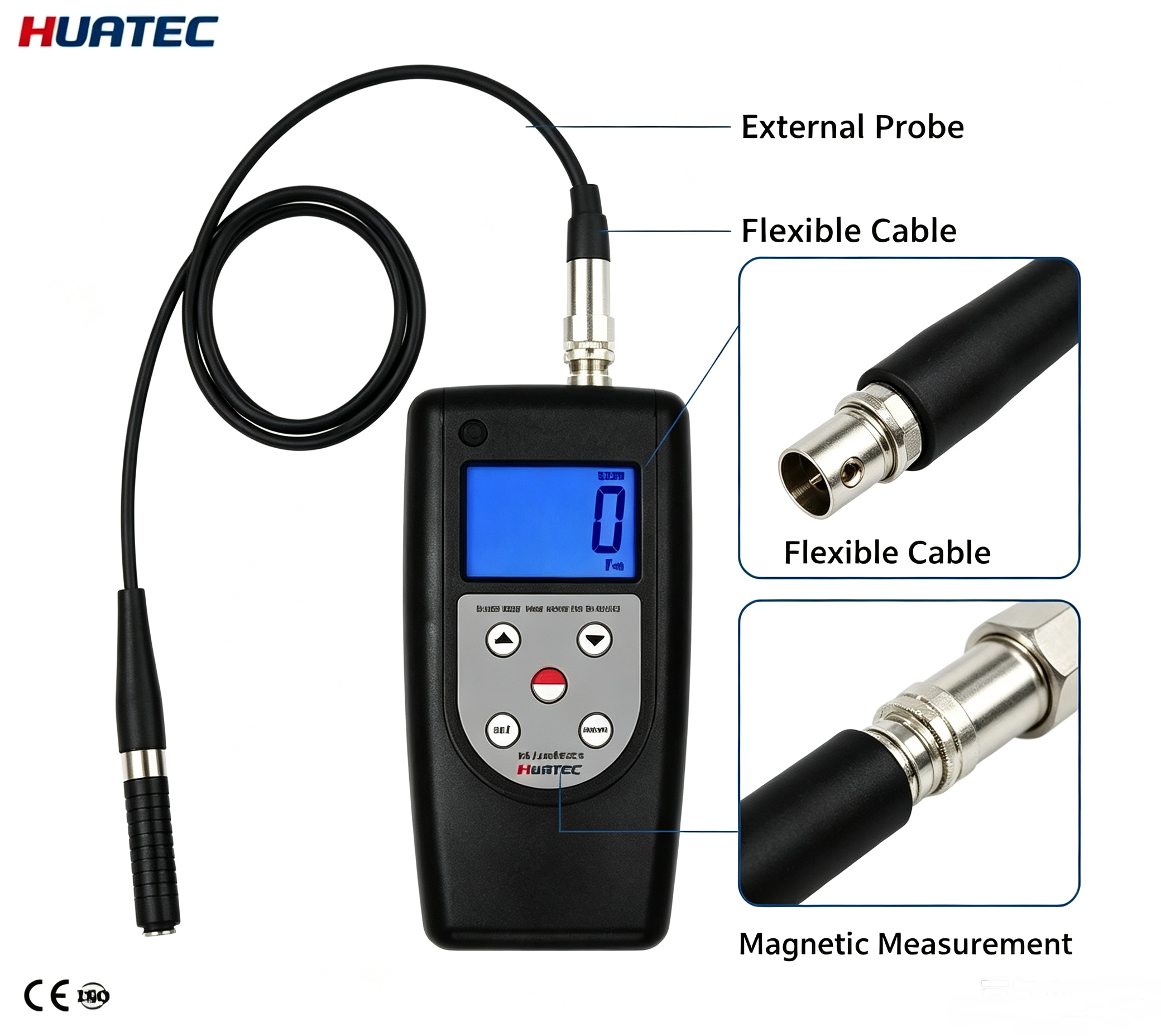

2. Probe (NF Type)

3. Calibration Base Set (NF Type)

4. Calibration Foils (1 set, 4 pieces)

5. Carrying Case

6. Operation Manual

Optional accessories:

1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
