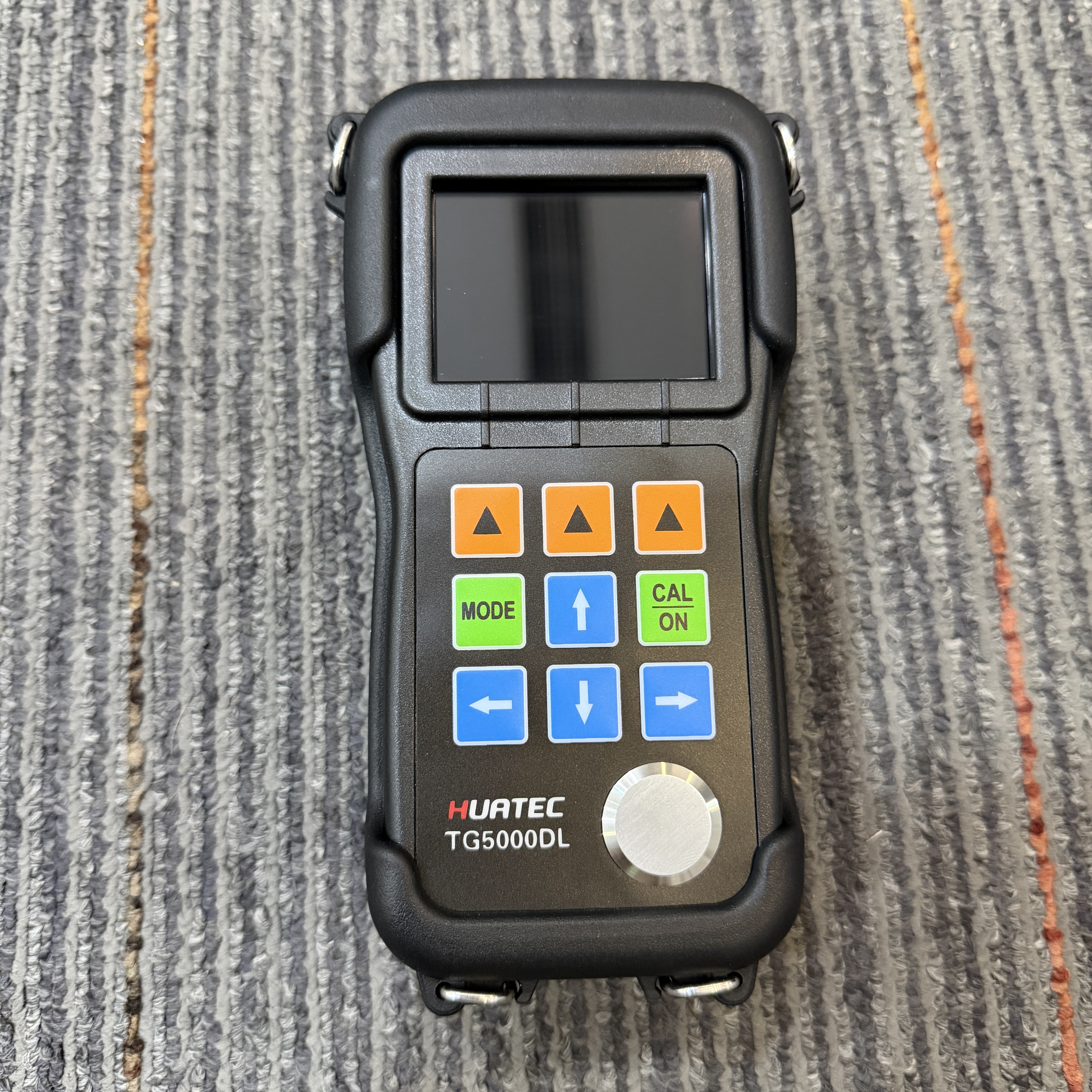

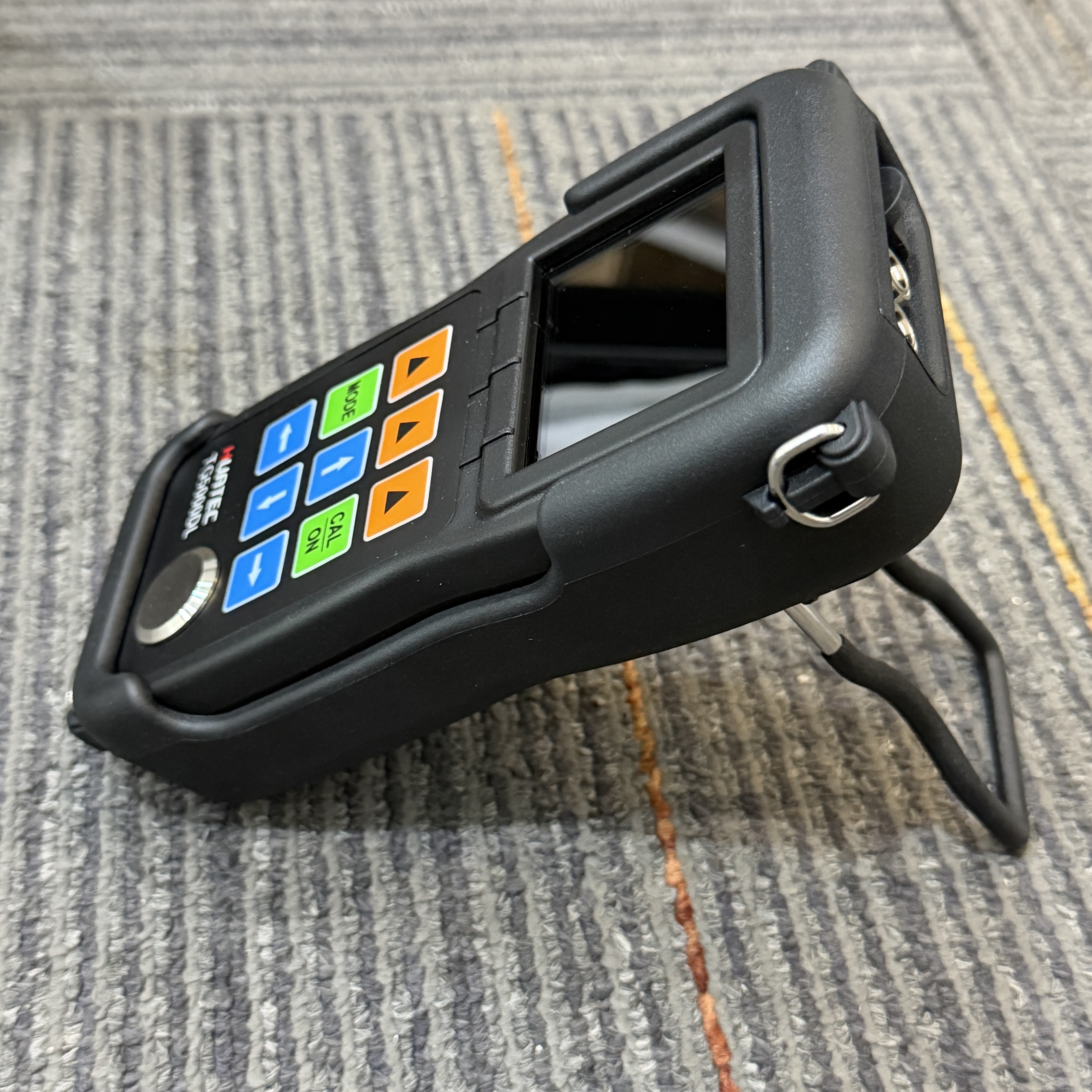

TG5000DL Ultrasonic Thickness Tester with Data Logger Store 100000 Readings & 1000 Waveforms Industrial Non-destructive Tester
TG5000DL Ultrasonic Thickness Tester with Data Logger Store 100000 Readings & 1000 Waveforms Industrial Non-destructive Tester
TG5000DL Ultrasonic Thickness Tester with Data Logger Store 100000 Readings & 1000 Waveforms Industrial Non-destructive Tester
TG5000DL Ultrasonic Thickness Tester with Data Logger Store 100000 Readings & 1000 Waveforms Industrial Non-destructive Tester
Specifications
Supply Ability :
10 Sets/Month
Measuring Resolution :
Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
Rectify Modes :
RF+, RF-, HALF+, HALF-, FULL
Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan Display Mode :
Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan
Model Number :
TG5000DL
MOQ :
1 SET
Packaging Details :
ABS box+Outer carton packaging
Units :
Inch or Millimeter
Payment Terms :
T/T,Western Union,Paypal
Material Velocity Range :
500 to 9999m/s (0.0197 to 0.3937in/us)
Certification :
CE
Delivery Time :
7-10 working days after receipt of your payment
Measuring Range :
0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition
Brand Name :
HUATEC
Display Type :
2.4" color OLED, 320 X 240 pixels, contrast 10,000:1
Place of Origin :
China
Description

TG5000DL Ultrasonic Thickness Tester with Data Logger Store 100000 Readings & 1000 Waveforms Industrial Non-destructive Tester


TG-5000 series ultrasonic thickness gauge, Launch the ultrasonic through one side of the object, measure the digitized thickness real-timely, without cutting the object. As a subminiature measuring gauge, is researched and developed by our company according to the ultrasonic measuring theory. The features include fast response, non-destruction and precise measuring. In addition, A/B-scan waveform display is available by showing the echoes, which enables the more extensive measure range, more precise result and very little measurement error and finally makes the measuring processes more controllable.

TG-5000 series ultrasonic thickness gauge, as the essential NDT instrument, can be widely applied in the detecting fields like manufacturing, metal processing, chemical industry, commercial inspecting and so on. It can not only precisely measure various kinds of panels and processing components but also monitors the thickness minus of tubes and pressure vessels in the manufacturing instruments after corrosion.


SPECIFICATIONS

Display Type

2.4" color OLED, 320 X 240 pixels, contrast 10,000:1

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition

Measuring Resolution

Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Units

Inch or Millimeter

Rectify Modes

RF+, RF-, HALF+, HALF-, FULL

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

Material Velocity Range

500 to 9999m/s (0.0197 to 0.3937in/us)

Languages

English

Alarm Settings

Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity

Operating Temperature

-10°C to +50°C (+10°F to +120°F)

Size

153mm × 76mm ×37mm(H ×W ×D)

Weight

280g including batteries

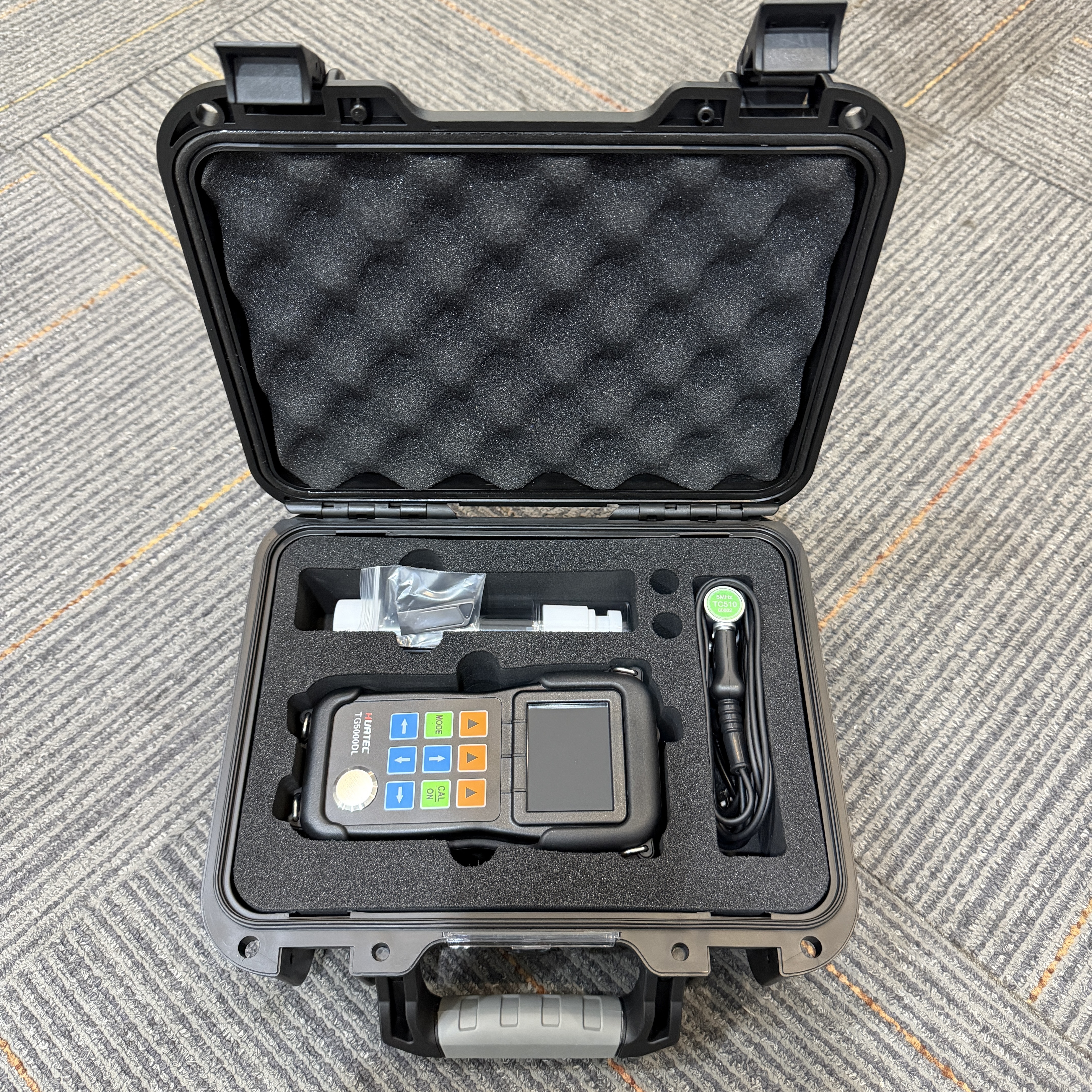

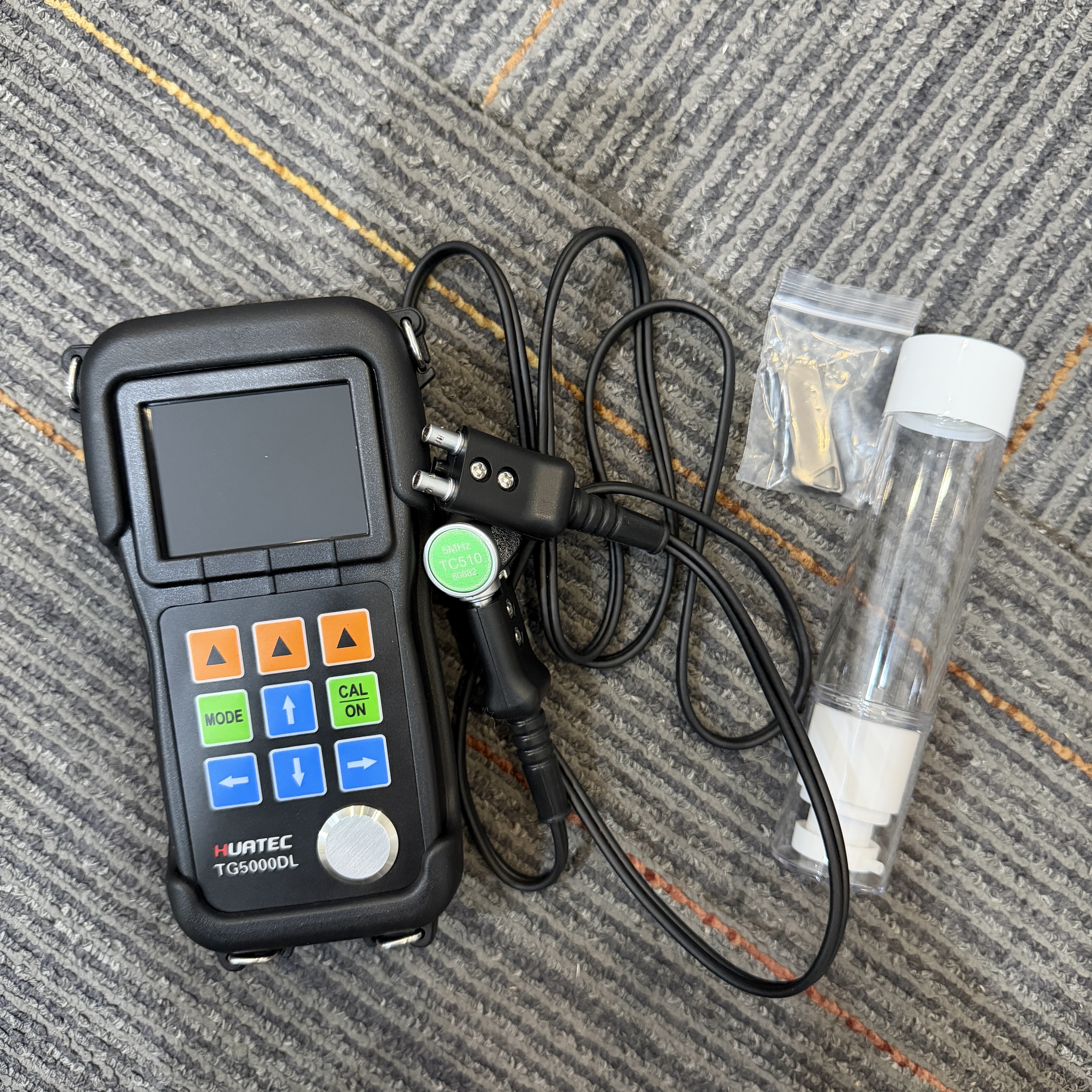

STANDARD CONFIGURATIONS

NAME

NUMBER

THICKNESS GAUGE

1

PROBE

1

ALKALINE BATTERY

2

COUPLANT

1

CARRYING CASE

1

OPERATING MANUAL

1

USB CABLE

1(ONLY TG-5000DL)

SOFTWARE CD

1(ONLY TG-5000DL)

OPTIONAL CONFIGURATIONS

HIGH-TEMPERATURE PROBE

CAST IRON PROBE

SMALL PROBE

MINI PROBE

PROBE CABLE

STEPPED CALIBERATION BLOCK

RUBBER SHEATH

STORAGE OPTION(ONLY TG-5000)
