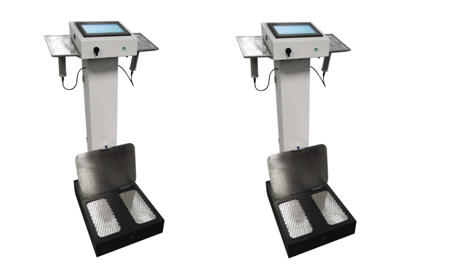

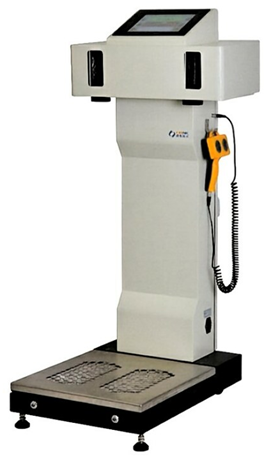

FJ-HF11 High Sensitivity Nuclear Pollution Monitor Alpha Beta Radiation Detection for Nuclear Power Plant
FJ-HF11 High Sensitivity Nuclear Pollution Monitor Alpha Beta Radiation Detection for Nuclear Power Plant
FJ-HF11 High Sensitivity Nuclear Pollution Monitor Alpha Beta Radiation Detection for Nuclear Power Plant
FJ-HF11 High Sensitivity Nuclear Pollution Monitor Alpha Beta Radiation Detection for Nuclear Power Plant
Specifications
Supply Ability :
5sets/Month
Alarm methods :
audible and visual alarms
Measurement areas :
feet, hands (palms and backs of hands), and forearms
Display :
10-inch touchscreen color display, resolution 1024*600
Model Number :
FJ-HF11
MOQ :
1 pc
Packaging Details :
Carton packing box
Payment Terms :
T/T,Paypal
Detection efficiency :
α: Hands ≥35%, Feet ≥30%; β: Hands ≥40%, Feet ≥30%
Certification :
CE
Delivery Time :
10-15 working days after receipt of your payment
Power supply :
AC 220V (50/60H)
Brand Name :
HUATEC
Detector :
4 thin-film plastic scintillators + ZnS coated detector
Place of Origin :
China
Description

FJ-HF11 High Sensitivity Nuclear Pollution Monitor Alpha Beta Radiation Detection for Nuclear Power Plant

Product Introduction

This product is mainly used in nuclear power plants, nuclear facilities, and mining sites. It is used to measure the alpha and beta contamination on the hands, feet, and clothing surfaces of researchers and workers handling radioactive materials. When the alpha and beta radiation detected on the hands, feet, and clothing surfaces exceeds the threshold, the instrument will issue an alarm to ensure the personal safety of the staff and prevent internal radiation exposure.


Technical indicators

Detector 4 thin-film plastic scintillators + ZnS coated detector
Measurement type α, β
Display 10-inch touchscreen color display, resolution 1024*600
Measurement areas feet, hands (palms and backs of hands), and forearms.
Detection dimensions 350mm × 200mm (foot), 250 × 180mm (hand)
Minimum detectable α activity

≤0.037 Bq/cm2 (background <0.1 cps; 239 Pu)
Minimum detectable β activity ≤0.37 Bq/cm2 (background <20 cps; 90 Sr- 90 Y)
Detection efficiency α: Hands ≥35%, Feet ≥30%; β: Hands ≥40%, Feet ≥30%
Alarm methods audible and visual alarms
Alarm Mode Dynamic Alarm: Two-level alarm threshold settings: alarm coefficient and severity alarm coefficient.
Static alarms Two-level alarm threshold settings: alarm threshold and critical alarm threshold
Alarm recovery Alarm self-recovery can be freely configured according to usage requirements
High and low background alarm settings After performing forced background measurement, high and low background alarm thresholds can be set according to the background conditions, based on the on-site usage environment
Equipment indicator lights Real-time display of equipment status
Communication interface and hardware configuration requirements

1 USB interface; 1 national standard power cord interface
Power suppl AC 220V (50/60H)

Application areas

l Radionuclide laboratory;

l Nuclear fuel plant;

l Environmental surveying, national security;

l nuclear medicine;

l PET equipment.

Features

l The 10-inch touchscreen color display makes it easy to operate.

l Intelligent operation with self-diagnosis function;

l The hand detector can be easily detached and used for measuring key areas of the body;

l The personnel location sensor can indicate the accurate location and provide voice prompts to guide the measurement.

l It uses a touch screen, allowing healthcare personnel to operate it independently, while the person being examined does not need to perform any operation, making it convenient to use;

l Radiation measurement parameter setting, status indication, and voice alarm functions;

l Local data storage, query, and dynamic display functions;

l It has a self-diagnostic function, and self-test items include: hand infrared detection and foot infrared detection;

l
When the measurement result is contaminated, a voice prompt, a text prompt, the location of the contamination, and the measurement result will be provided.


Environmental characteristics

l Temperature range: -10℃ ~ +40℃

l Relative humidity: ≤90% (35℃, non-condensing)


Mechanical properties

l Dimensions: 130 × 70 × 60cm

l Weight: 35kg
