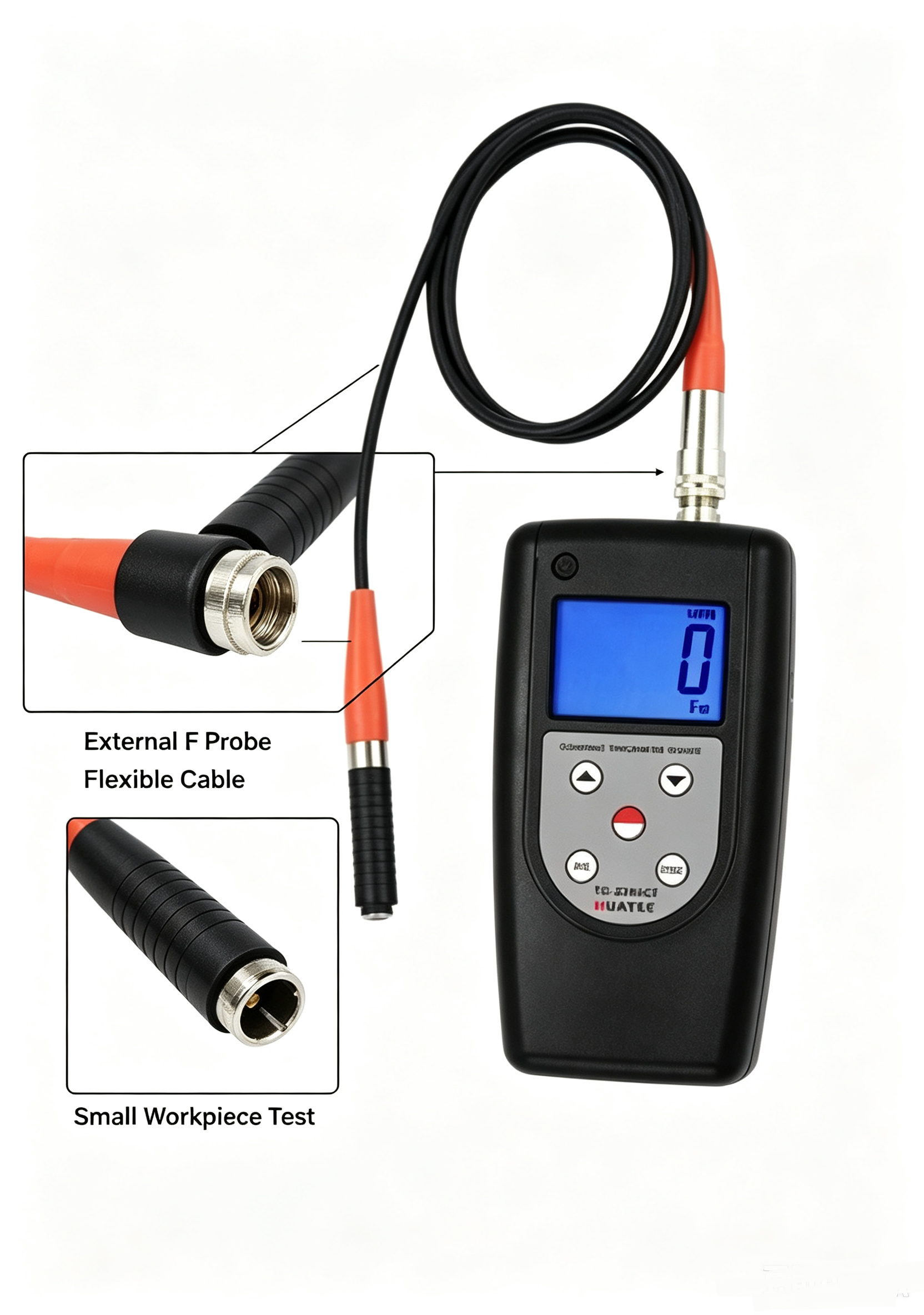

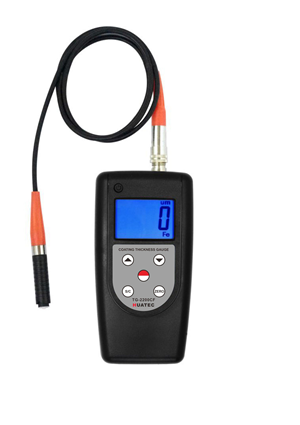

TG‑2200CF Portable Coating Thickness Gauge 0.1μm Resolution Single Continuous Measurement Galvanized Paint Enamel Tester
TG‑2200CF Portable Coating Thickness Gauge 0.1μm Resolution Single Continuous Measurement Galvanized Paint Enamel Tester
TG‑2200CF Portable Coating Thickness Gauge 0.1μm Resolution Single Continuous Measurement Galvanized Paint Enamel Tester
TG‑2200CF Portable Coating Thickness Gauge 0.1μm Resolution Single Continuous Measurement Galvanized Paint Enamel Tester
Specifications
Supply Ability :
10sets/Month
Operating Conditions :
Temp. 0~40 °C, Humidity: 10~90 %RH
Model Number :
TG‑2200CF
Resolution :
0.1 um
Payment Terms :
T/T,Paypal
Accuracy :
± 1~3%n or ± 2.5 um
Certification :
CE
Min. Radius Workpiece :
convex 2 mm / concave 4 mm
MOQ :
1 pc
Packaging Details :
Carton packing box
Min. Sample Thickness :
0.1 mm
Delivery Time :
7-10 working days after receipt of your payment
Brand Name :
HUATEC
Measuring Range :
0~200 um / 0~8 mil
Place of Origin :
China
Min. Measuring Area :
2 mm
Description

TG‑2200CF Portable Coating Thickness Gauge 0.1μm Resolution Single Continuous Measurement Galvanized Paint Enamel Tester


Applications:

The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.

Operating Principle

Magnetic Induction (F)

Measuring Range

0~200 um / 0~8 mil

Resolution

0.1 um

Min. Radius Workpiece

convex 2 mm / concave 4 mm

Min. Measuring Area

2 mm

Min. Sample Thickness

0.1 mm

Accuracy

± 1~3%n or ± 2.5 um

Auto Power Off

Metric / Imperial

Convertible

Battery Indicator

Low Battery Indicator

Operating Conditions

Temp. 0~40 °C, Humidity: 10~90 %RH

Power Supply

4 x 1.5 V AAA (UM-4) Battery

Dimensions

140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )

Weight

215 g (Not Including Batteries)

Features Details Accessories

* Specially for the thickness measurement of coating on small workpiece.

* Measuring methods: magnetic induction (F).

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Auto memory of calibration value,and auto recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.


* Separate Type can provide several type probe, measure can be more flexibility.

Standard Accessories:

1. Main Unit

2. Probe (F Type)

3. Calibration Base Set (F Type)

4. Calibration Foils (1 set, 4 pieces)

5. Carrying Case

6. Operation Manual


Optional accessories:

1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
