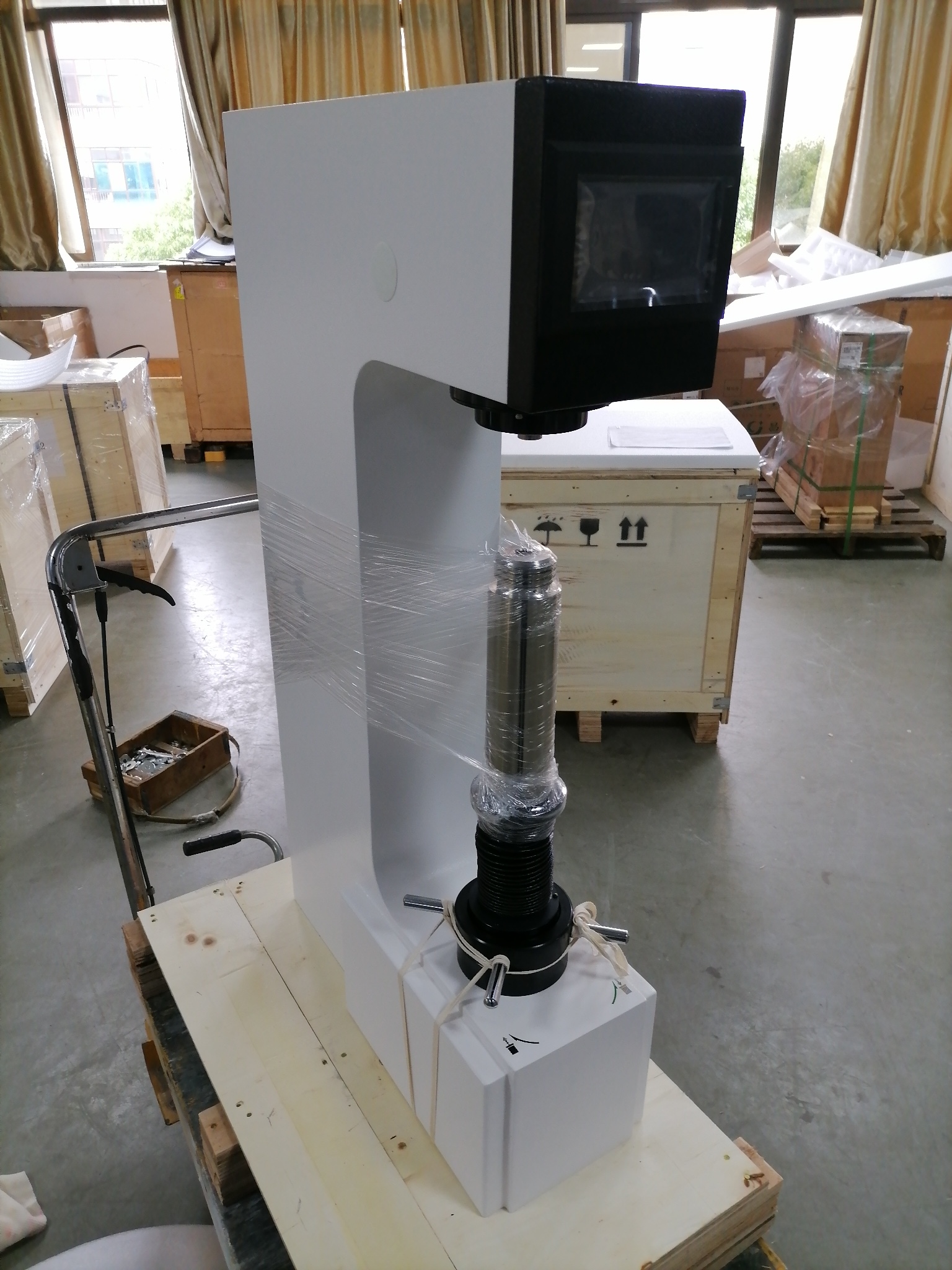

Heightened Brinell Hardness Tester HB-3000S(H)
Heightened Brinell Hardness Tester HB-3000S(H)
Heightened Brinell Hardness Tester HB-3000S(H)
Heightened Brinell Hardness Tester HB-3000S(H)
Heightened Brinell Hardness Tester HB-3000S(H)
Heightened Brinell Hardness Tester HB-3000S(H)
Heightened Brinell Hardness Tester HB-3000S(H)
Heightened Brinell Hardness Tester HB-3000S(H)
Specifications
Model Number :
HB-3000S(H)
MOQ :
1set
Product name :
Heightened Brinell Hardness Tester
Delivery Time :
7~10 days after payment
Maximum Height of Specimen :
400mm
Supply Ability :
50 sets per month
Certification :
ISO,CE
Packaging Details :
in wooden box
Hardness Range :
8～650 HBW
Brand Name :
HUATEC
Place of Origin :
China
Test Force :
62.5kgf(612.9N)、100kgf(980.7N)...
Description

Heightened Brinell Hardness Tester HB-3000S(H)


Main Technical Specifications

Test Force 62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N),
187.5kgf(1839N),250kgf(4903N),500kgf(4903N),750kgf(7355N),1000kgf(9807N),1500kgf(1471N),3000kgf(29420N)
Hardness Range 8～650 HBW
Enlargement Factor of Reading Microscope 20times
Minimum Division Value of Micrometer Drum Wheel 0.01mm
Maximum Height of Specimen 400mm
Distance from the Indenter Central Point to the Instrument Body 155mm
Time-delayed Control 0~99 seconds, adjustable
Power Source AC220V±5%/50~60HZ
Overall Dimension (L×W×H) (540×280×1040)mm
Main Body Weight 130kg

To ensure the correctness of Brinell hardness test, it should meet the requirements in the table as follows:

Table.1

Material

Brinell hardness

F/D2

Steel and Cast iron

＜140

10

≥140

30

Copper & copper alloy

＜35

5

35~130

10

＞130

30

Light metal & its alloy

<35

2.5

35~80

5,10

＞80

10

F—test force (kg) ; D—ball diameter (mm)

The displayed value’s repetition and tolerance of the hardness tester:

Table.2

Standard hardness test block

Tolerance of displayed value%

Repetition of displayed value%

≤125

±3

3

125<HBW≤225

±2.5

2.5

＞225

±2

2

Correspondent relations among scale, indenter and test force:

Table.3

Hardness symbol

Diameter of Indenter

mm

F/D2

Test Force

N(kg)

HBW 10/3000

10

30

29420(3000)

HBW 10/1500

10

15

14710(1500)

HBW 10/1000

10

10

9807(1000)

HBW 10/500

10

5

4903(500)

HBW 10/250

10

2.5

2452(250)

HBW 10/125

10

1.25

1226(125)

HBW 10/100

10

1

980.7(100)

HBW 5/750

5

30

7355(750)

HBW 5/250

5

10

2452(250)

HBW 5/125

5

5

1226(125)

HBW 5/62.5

5

2.5

612.9(62.5)

HBW 2.5/187.5

2.5

30

1839(187.5)

HBW 2.5/62.5

2.5

10

612.9(62.5)

Operational Conditions

3.1.1 Room temperature within 10~30 ℃;

3.1.2 Relative room humidity inferior to 65%;

3.1.3 In an environment without any shock or vibration;

3.1.4 In a surrounding without any corrosive medium

Accessories (The Packing List)

1

20×reading microscope

1

2

φ2.5mm ball indenter

1

3

φ5mm ball indenter

1

4

φ10mm ball indenter

1

5

Small plane testing table

1

6

Big plane testing table

1

7

V-shaped testing table

1

Standard hardness test block:

8

HBW/3000/10 (175~250)

1

9

HBW/1000/10(75~125)

1

10

HBW/187.5/2.5(150~250)

1

11

Spare fuse (2A)

2

12

Power cord

1

13

Dust-proof plastic bag

1

14

Usage instruction manual

1

Heightened Brinell Hardness Tester HB-3000S(H)
