SRT-5100S Digital Surface Profile Gauge Blast Cleaning Surface Roughness Tester
SRT-5100S Digital Surface Profile Gauge Blast Cleaning Surface Roughness Tester
SRT-5100S Digital Surface Profile Gauge Blast Cleaning Surface Roughness Tester
SRT-5100S Digital Surface Profile Gauge Blast Cleaning Surface Roughness Tester
Specifications
Model Number :
SRT-5100S
Principle :
Inductance Type
MOQ :
1 SET
Delivery Time :
3-5 working days after receipt of your payment
Operating :
Temperature :0℃ ~ 50℃
Payment Terms :
T/T,Western Union,Paypal
Range :
0 ~ 800 ɥm/29.5 mils
Power Supply :
4x1.5V AAA(UM-4)Battery
Price :
US$472.00 - 535.00/set
Accuracy :
±5%or±5ɥm,(whichever is the greater)
Resolution :
0.1ɥm/ 1ɥm
Supply Ability :
10 Sets/Month
Display :
LCD
Brand Name :
HUATEC
Certification :
CE
Place of Origin :
China
Packaging Details :
Blue ABS box+Outer carton packaging
Description

SRT-5100S Digital Surface Profile Gauge Blast Cleaning Surface Roughness Tester


Application

This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces. It is widely used in field of blast cleaned surface measurement.


Specification

Display LCD
Range 0 ~ 800 ɥm/29.5 mils
Accuracy ±5%or±5ɥm,(whichever is the greater)
Resolution 0.1ɥm/ 1ɥm
0.1mils
Principle Inductance Type
Operating Temperature :0℃ ~ 50℃
Conditions Humidity :< 80% RH
Power Supply 4x1.5V AAA(UM-4)Battery
Dimensions 126x65x28mm
Weight 280 g

Standard

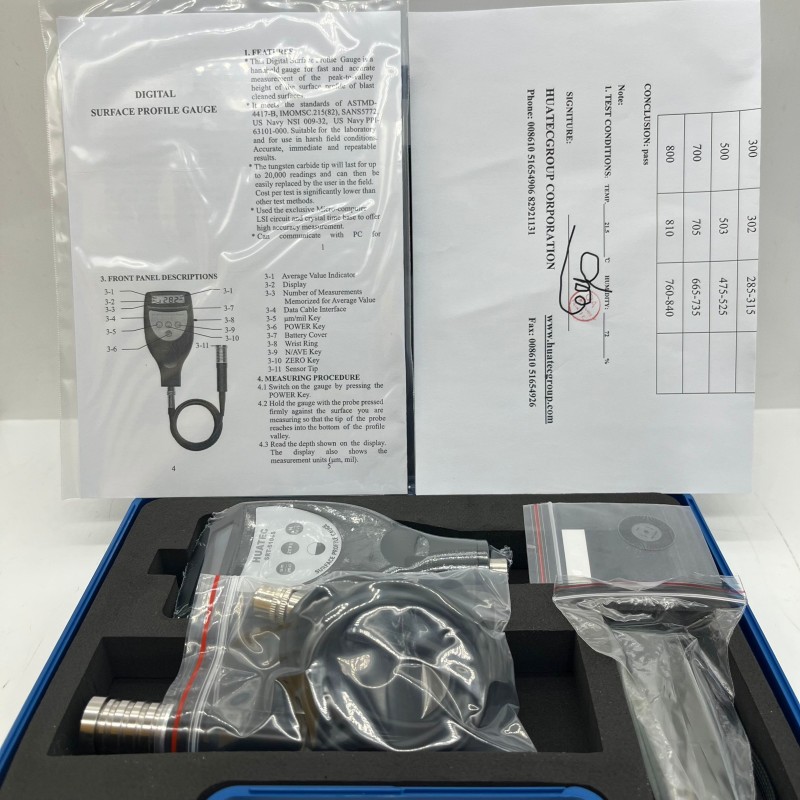

Accessories

 Main Unit
Sensor
Standard Sample Plate
Carrying Case
Operation Manual

Optional

Accessories

 USBCable with Software
Blue tooth Adapter with Software


Feature

* It meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
* Small in size, light in weight and easy to use.
* Manual or automatic power off.
* Metric/Imperial Conversion.
* With average calculation function.
* Separate Probe.
* Use USB data output to connect with PC.
* Provide Blue tooth data output choice.

SRT-5100S Digital Surface Profile Gauge Blast Cleaning Surface Roughness TesterSRT-5100S Digital Surface Profile Gauge Blast Cleaning Surface Roughness TesterSRT-5100S Digital Surface Profile Gauge Blast Cleaning Surface Roughness Tester
