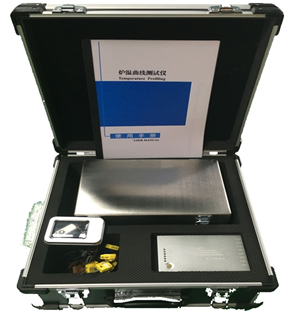

HJT‑6‑300‑K Furnace Temperature Tester 6 Channels K‑Type Thermocouple Temperature Profiler with Insulation Box
HJT‑6‑300‑K Furnace Temperature Tester 6 Channels K‑Type Thermocouple Temperature Profiler with Insulation Box
HJT‑6‑300‑K Furnace Temperature Tester 6 Channels K‑Type Thermocouple Temperature Profiler with Insulation Box
HJT‑6‑300‑K Furnace Temperature Tester 6 Channels K‑Type Thermocouple Temperature Profiler with Insulation Box
Specifications
Model Number :
HJT-6-300-K
Payment Terms :
T/T,Western Union,Paypal
resolution :
0.1℃
Maximum internal operating temperature :
85℃
MOQ :
1 SET
Packaging Details :
Wooden box packaging
Storage (per channel reading) :
8M 246,000 data points
Supply Ability :
10 Sets/Month
precision :
±0.5℃
Measuring range :
0℃-1370℃
Delivery Time :
7-10 working days after receipt of your payment
Sampling interval :
0.05 second~16 minute
Brand Name :
HUATEC
Certification :
CE
Place of Origin :
China
The test channel :
6
Description

HJT‑6‑300‑K Furnace Temperature Tester 6 Channels K‑Type Thermocouple Temperature Profiler with Insulation Box


【Product introduction】

The furnace temperature tester is characterized by high reliability, high performance-price ratio and high test accuracy.Suitable for testing various temperature curves.

【Main technical indicators of host】

The host model

HJT-6-300-K

The test channel

6

Thermocouple type

K type

Sampling interval

0.05 second~16 minute

precision

±0.5℃

Accuracy of protection

Cold end compensation - recorder accuracy within 85 degrees

The resolution

0.1℃

Maximum internal operating temperature

85℃

Measuring range

0℃-1370℃

memory

with thermal data protection function

Continuous testing

Maximum 4 times of storage at one time

Storage (per channel reading)

8M 246,000 data points

Start method of data collection

Button start, delay start, temperature start

battery capacity

Li-ion 1000mA

working voltage

DC3.7V~DC4.2V

LED directive function

It can always indicate the process

















【Heat insulation box Parameters】

Heat resistance temperature

300℃

Heat resistance time

60Min


【Main configuration list】

SN

Name

Quantity

SN

Name

Quantity

1

Instrument packaging box

1PCS

6

High-temperature gloves

1PCS

2

Thermometer Main unit

1PCS

7

Thermocouple (clamp)

6PCS

3

Heat insulation box

1PCS

8

Software

1PCS

4

Operating Manual

1PCS

9

Certificate of Conformity

1PCS

5

Data connection line

1PCS

10

Warranty card

1PCS
