Integral DUAL OLED Surface Roughness Tester SRT5030
Integral DUAL OLED Surface Roughness Tester SRT5030
Integral DUAL OLED Surface Roughness Tester SRT5030
Integral DUAL OLED Surface Roughness Tester SRT5030
Integral DUAL OLED Surface Roughness Tester SRT5030
Integral DUAL OLED Surface Roughness Tester SRT5030
Integral DUAL OLED Surface Roughness Tester SRT5030
Integral DUAL OLED Surface Roughness Tester SRT5030
Specifications
Model Number :
SRT5030
Payment Terms :
L/C,T/T,Western Union
Display Accuracy :
0.01μm
Battery :
3.7V Lithium Rechargeable battery
MOQ :
1set
Packaging Details :
in carton
Supply Ability :
50 sets per month
Optional Parameter :
Ra, Rz, Rq, Rt
Dimensions in mm :
110×81×32
Delivery Time :
5-7 days after payment
Light weight :
150g
Brand Name :
HUATEC
Certification :
ISO,CE
Place of Origin :
China
Product name :
Roughness Tester
Description

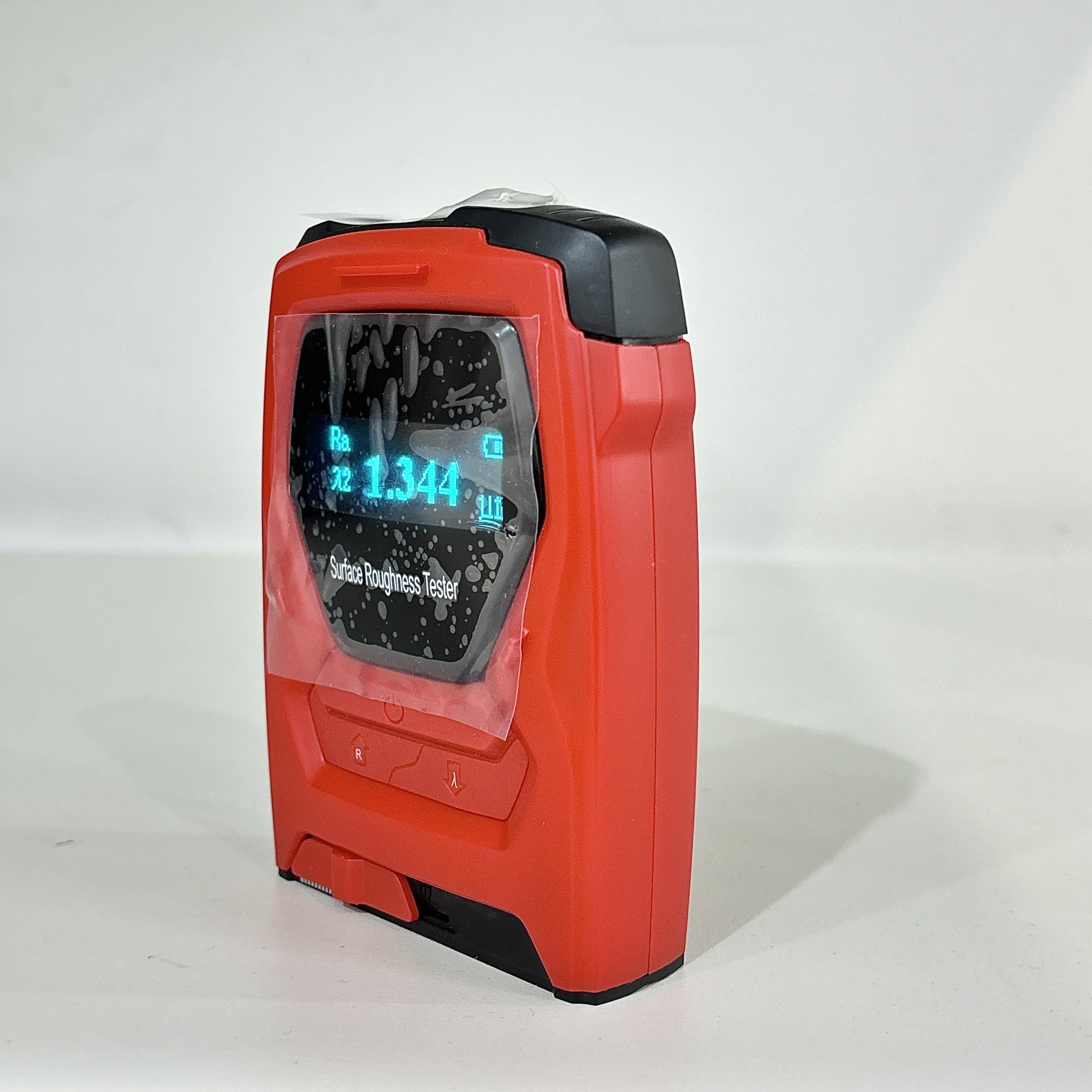

Integral DUAL OLED Surface Roughness Tester SRT5030


Features

Dual OLED displays to suit your applications;

2 start keys ( the left key & the right key) to satisfy the different using habits;

Mobile app compatible to get the higher accuracy, convenient to be used in a small space

ARM processor to offer higher speed, low power consumption and fast accurate measurement.

Light weight of 150g, easy & convenient to use.


Main Technical Specifications

Optional Parameter

Ra, Rz, Rq, Rt

Measuring Range(μm)

Ra, Rq: 0.05 ~ 10.0; Rz, Rt: 0.1 ~ 50

Sampling Length(mm)

0.25/ 0.80/ 2.5

Evaluation Length(mm)

1.25/ 4.0/ 5.0

Running Length(mm)

6

Display Accuracy

0.01μm

Display Deviation

±(7-10)%

Display Repeatability

＜12%

Stylus Radius

10 μm±1 μm

Static Contact Force

≤ 0.016N

Force Change Rate

≤ 800N/m

Sensor Lead Pressure

≤ 0.5N

Battery

3.7V Lithium Rechargeable battery

Dimensions in mm

110×81×32

Weight

150g

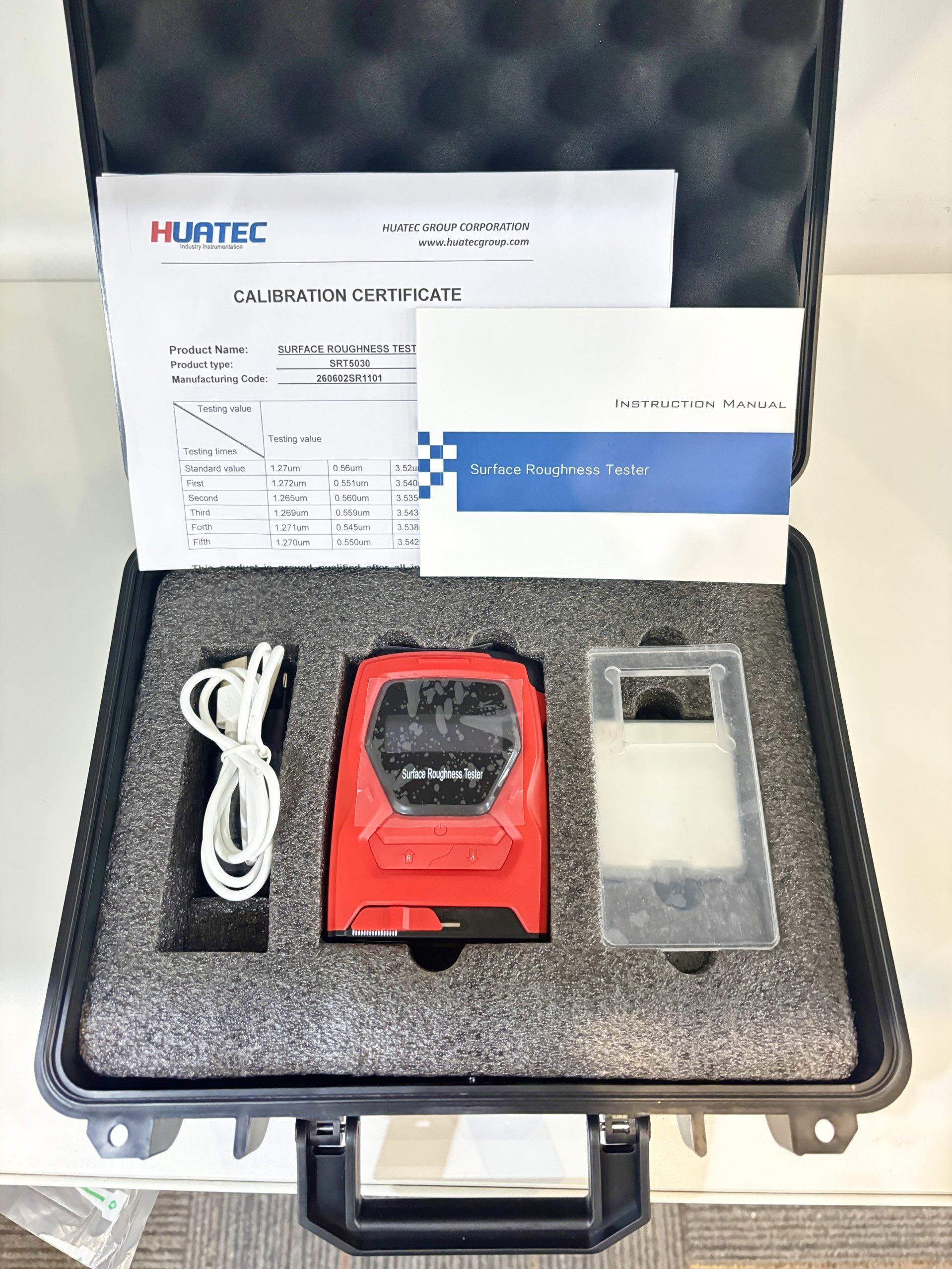

Standard Delivery

Main Unit

1 pc

calibration block

1pc

Power adapter

1pc

USB cable

1 pc

User Manual

1 pc

Calibration certificate

1 pc
