HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector
HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector
HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector
HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector
Specifications
Model Number :
HFM100
Supply Ability :
5sets/Month
Power supply :
AC 220 V±10%, 50 Hz±10%
Payment Terms :
T/T,Paypal
Power rate :
≤ 70W
Backup capacity :
≥ 2.5 hours
MOQ :
1 pc
Packaging Details :
Carton packing box
Delivery Time :
10-15 working days after receipt of your payment
Detection efficiency (2π, surface source, protected mesh surface) :
α(239Pu): hands ≥ 40%, feet ≥ 30% (α/β type) β(90Sr-90Y): hands ≥ 40%, feet ≥ 30%
Brand Name :
HUATEC
Certification :
CE
Place of Origin :
China
Measurement type :
alpha/beta or beta rays
Description

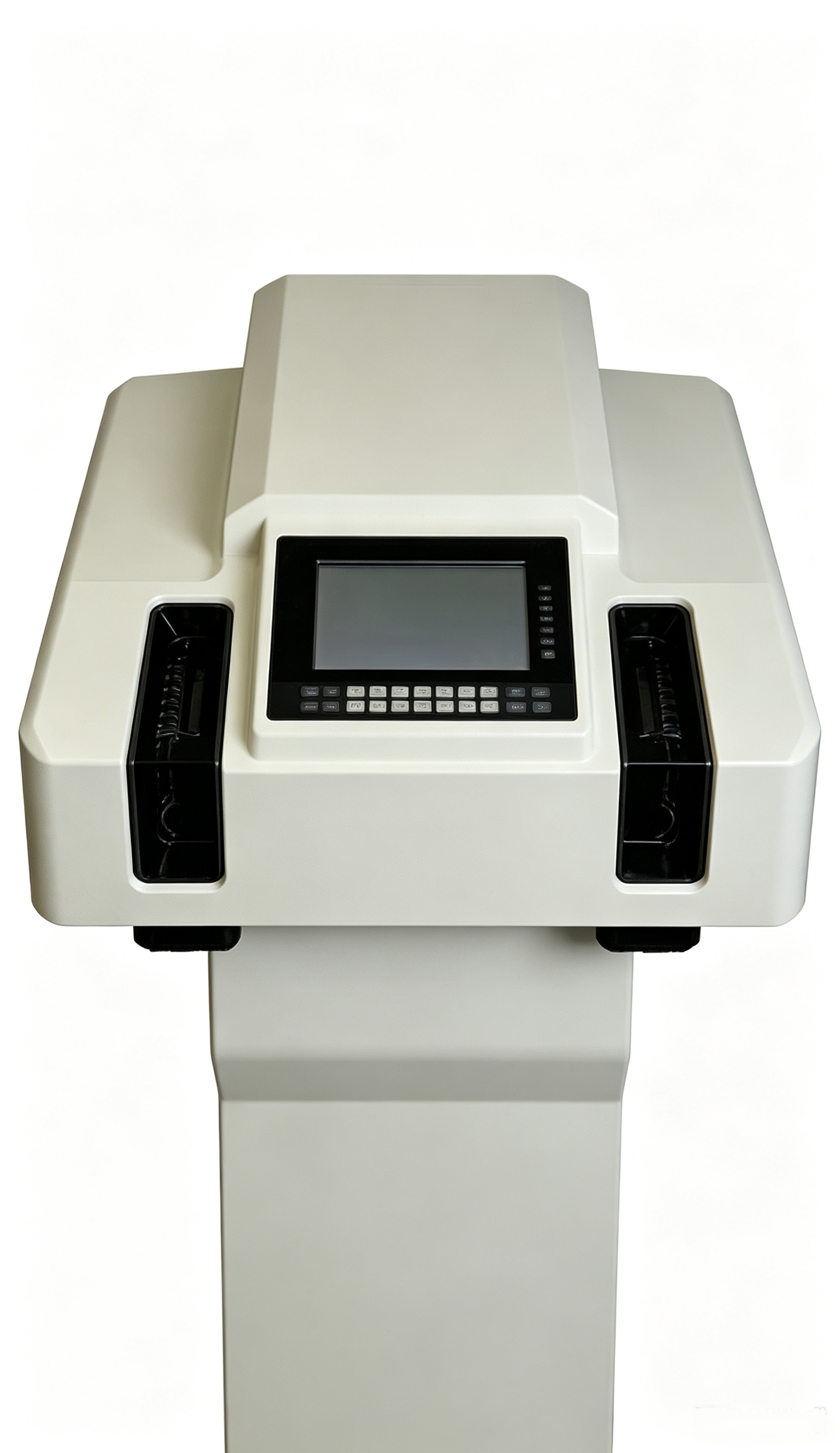

HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector

HFM100 hand and foot surface contamination monitor (α/β type and β type) is mainly used in nuclear power plants or related nuclear facilities on the radioactive control channel, from the control area of the hands and feet of the staff surface pollution monitoring, through the analysis of data to timely discover the potential accident, in order to timely detect pollution and prevent pollution transfer. It is one of the means to ensure safe production in nuclear power plants or related nuclear facilities and other radioisotope application departments, and can also be used in other radioisotope application departments.

Physical property:

Measurement type alpha/beta or beta rays
Detection efficiency (2π, surface source, protected mesh surface)

α(239Pu): hands ≥ 40%, feet ≥ 30% (α/β type)

β(90Sr-90Y): hands ≥ 40%, feet ≥ 30%
Lower detection limit (measurement time 10s, environmental background 0.2μGy/h, confidence 95%)

α: 0.04Bq /cm²(α/β type)

Beta: 0.4 Bq/cm²
Dimensions 1400mm × 620mm × 850mm(height × width × depth)
Clothing probe 2×15cm² (optional)
Weight 98kg
Power supply AC 220 V±10%, 50 Hz±10%
Power rate ≤ 70W
Backup capacity ≥ 2.5 hours

Functional characteristics:

*6 ZnS(Ag) plastic-flash composite detectors (α/β type) or plastic-flash detectors (β type), no working air source, no heat engine time, ready to start

*Optional clothing measuring probe

*One-step measurement, short measuring time, high working efficiency

*Automatic measurement and auxiliary calibration software, easy to operate

*Measurement process voice reminder, pollution voice alarm

*Comprehensively record measurement data, alarm data, scale data and probe parameter information, provide report output and printing functions

*TCP/IP Ethernet interface, can achieve networking function, remote transmission of measurement data, alarm information, or control instrument working status, modify parameters

*Calibration source and source stand are available

HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector

HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector

HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector

HFM100 Hand and Foot Surface Contamination Monitor α/β Nuclear Radiation Contamination Detector
