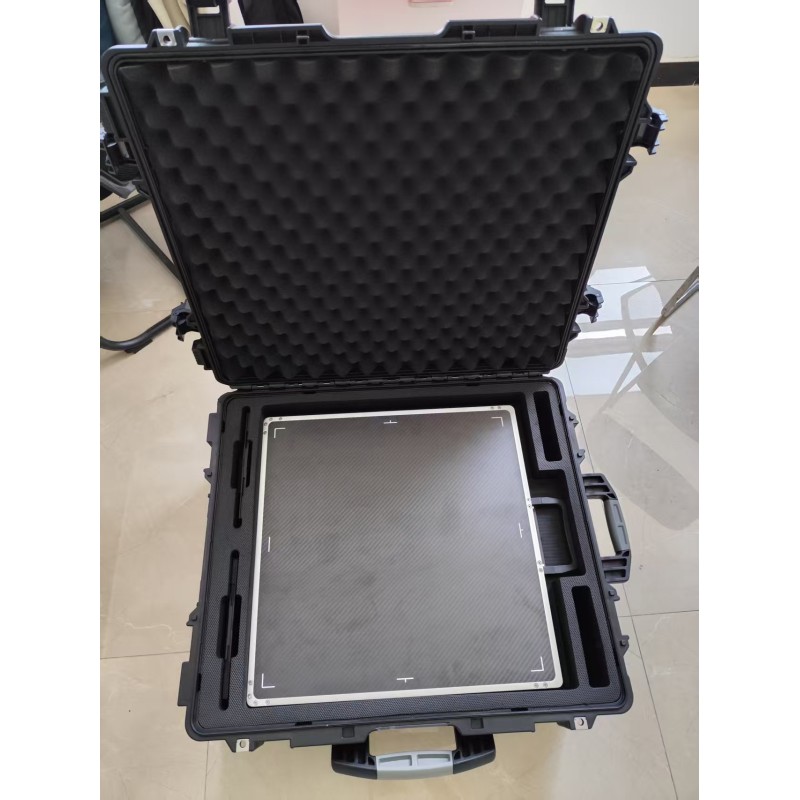

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
Specifications
Model Number :
H4343DA
MOQ :
1pc
Product name :
DR panel
Delivery Time :
7-10 days after payment
Active Area :
430 x 430 mm
Supply Ability :
50 pcs per month
Certification :
ISO,CE
Packaging Details :
in carton box
Adapter In :
AC 100-240V,50-60Hz
Brand Name :
HUATEC
Place of Origin :
China
Model :
H4343DA
Description

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)


Sensor

Receptor Type a-Si
Scintillator Gos / CsI:TI
Active Area 430 x 430 mm
Resolution 3072x 3072
Pixel Pitch 139 μm


Power Supply & Battery

Adapter In AC 100-240V,50-60Hz
Adapter Out DC 24V,2.7A
Power Dissipation <20 W


Image Quality

Limiting Resolution 3.5 LP/mm
Energy Range 40-160 KV
Dynamic Range ≥84 dB
Sensitivity ≥0.54 LSB/nGy
Ghos <1% 1st frame
DQE 42% @(1 LP/mm)
28% @(2 LP/mm)
MTF 68% @(1 LP/mm)
38% @(2 LP/mm)
20% @(3 LP/mm)


Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet

Frame rate 1x1 4fps/2x2 15fps/3x3 25fps

Exposure Control Free Run/SYNC Acquire

Mechanical
Dimension 460 × 460 × 14.8 mm
Weight 3.8kg

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51
