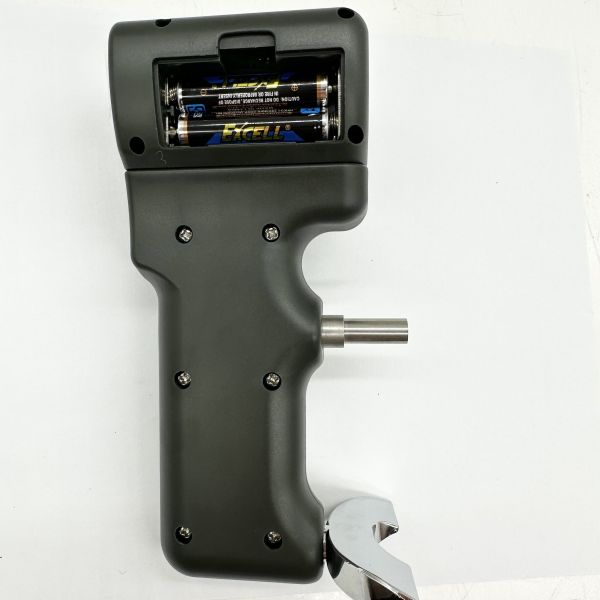

HBA-110 Aluminum Hardness Tester Data Memory Barcol Impressor
HBA-110 Aluminum Hardness Tester Data Memory Barcol Impressor
HBA-110 Aluminum Hardness Tester Data Memory Barcol Impressor
HBA-110 Aluminum Hardness Tester Data Memory Barcol Impressor
HBA-110 Aluminum Hardness Tester Data Memory Barcol Impressor
HBA-110 Aluminum Hardness Tester Data Memory Barcol Impressor
HBA-110 Aluminum Hardness Tester Data Memory Barcol Impressor
HBA-110 Aluminum Hardness Tester Data Memory Barcol Impressor
Specifications
Brand Name :
Huatec
Model Number :
HBA-110
Certification :
ISO CE GOST
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
100 sets per month
Delivery Time :
3~7 working days
Packaging Details :
in High quality carton
Product name :
Barcol Impressor
Model :
HBA-110
Range :
0~100HBa, Amount to 25~150HBW
Resolution :
0.1HBa
Description

HBA-110 Aluminum Hardness, Data Memory Portable Hardness Tester Barcol Impressor

A digital indentation hardness tester which is the latest design and development of our company.

* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.

* It is with good stability, convenient calibration, and high accuracy of detection.

* Small in size, portable. single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.

* Wide test range can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.

* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.

* With the maximum hold function, recording the maximum hardness value during measurements.

* Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).

* Provide Bluetooth data output choice

Specifications

Model HBA-110
Range 0~100HBa, Amount to 25~150HBW
Resolution 0.1HBa
Indication Error 81~88HBa ±1HBa
42~48HBa ±2Hba
Repeatability Error 81~88HBa ±1.5HBa
42~48HBa ±2.5HBa
Maximum Hold √
Operating Condition Temperature: 0~50°C
Humidity: <80%RH
Power Supply 2 x 1.5 V AAA (UM-4) Battery
Weight 390g (Not Including Batteries)

Standard Accessories :

1. Main Unit HBA-110

2. 2 Pins

3. 2 Standard Blocks

4. Pin Length Calibration Block

5. Screw Driver

6. Spanner

7. Carrying Case

8. Operation Manual

Optional Accessories:

  1. Bluetooth data output with software
