Specifications
Brand Name :
HUATEC
Model Number :
HG908
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union,PAYPAL
Supply Ability :
500 Set per month
Delivery Time :
3-5 work days
Packaging Details :
carton
Display :
3 1/2 LCD digital display, sampling per second
Suit for :
monitoring machinery vibration caused by imbalance, misalignment, gear & bearing faults and etc.
Overall accuracy :
±5%
Temperature range :
0 - 50C
Battery :
: 9V 6F22/Rechargeable, 25/10 hours of continuous operation
Pickup :
Accelerometer with handheld probe and/or magnetic mount
Dimension :
13×6×2.3 cm
Weight :
200g
Description

HG908
Vibration Analyzer

True RMS measurement

4 parameters Metric version

High Accuracy Hand-Held Vibrometer HG908 Temperature Range 0 50C

Features:

• Measuring vibration velocity, displacement,

acceleration and high-frequency acceleration

• Small size, transducer included,

battery powered, Accelerometer may be

integrated or external cable connected.

• One button control both power and

measurement. Very easy to use.

• 3 1/2 LCD digital display, sampling

per second.

• Holding function.
• Automatic power off.
• True RMS measurement.
• Suitable for monitoring machinery

vibration caused by imbalance,

misalignment, gear & bearing

faults and etc.

Specifications:

• Amplitude Ranges:

Displacement 1—1999 m m (or 200 mil) Eq. peak-peak

Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS

Acceleration 0.1—199.9 m/s2 (or 20 g) Eq. Peak

High Frequency Acceleration: 0.1—199.9 m/s2 (or 20 g) Eq. Peak

• Overall accuracy: ±5%
•Temperature range: 0 - 50°C
• Frequency response:

Displacement 10-1000Hz

Velocity 10-1000Hz

Acceleration 10-1000Hz (908B)

10-5000Hz (908)

High Frequency Acceleration: 1000-5000Hz ±10%

• Configuration:

HG908B: Integrated accelerometer with handheld probe

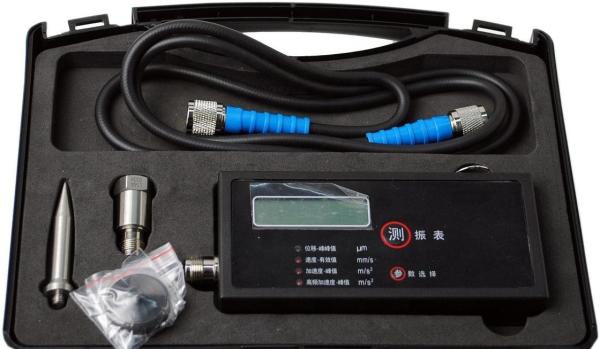

HG908: Outside accelerometer with magnetic mount & probe

• Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.
• Pickup: Accelerometer with handheld probe and/or magnetic mount
• Dimensions: 13×6×2.3 cm; Weight: 200 g

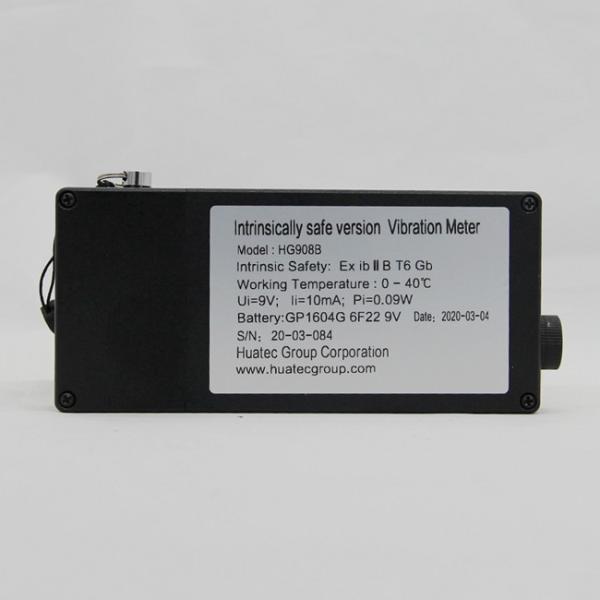

• Optional Intrinsically safe version with internal accelerometer
