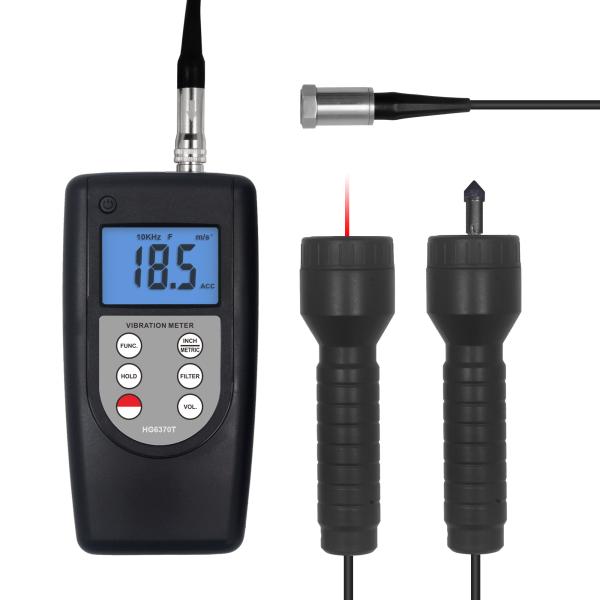

Vibration Tachometer HG-6370T For Contact Tachometer / Photo Tachometer
Vibration Tachometer HG-6370T For Contact Tachometer / Photo Tachometer
Specifications
Brand Name :
HUATEC
Model Number :
HG-6370T
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
500
Packaging Details :
Carton
Rotation Rate Range :
60~99,990RPM(r/min) (Reading should be multiplied by 10 if the display shows ‘10’)
Frequency Range :
1~20,000Hz (Reading should be multiplied by 10 if the display shows ‘10’)
Accuracy :
5% of Reading+2 digits
Temperature :
0~50ºC
Humidity :
<90%RH
Power Supply :
4x1.5V AAA(UM-4)Battery
Dimensions :
140x72x34mm
Description

Vibration Tachometer HG-6370T can be used for contact tachometer and photo tachometer

Vibration Tachometer HG-6370T

Vibration Tachometer HG-6370T For Contact Tachometer / Photo Tachometer

Application

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Also can be used as contact tachometer and photo tachometer.

Features

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Multifunctional, one instrument combines Photo Tachometer & Contact Tachometer. Be able to measure rotation rate RPM(r/min) & Frequency Hz.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank Rev(rpm) H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
80<H<132 132<H<225 225<H<400
Normal 600~3600 1.8 2.8 4.5
Good(R) 600~1800 0.71 1.12 1.8
1800~3600 1.12 1.8 2.8
Excellent(S) 600~1800 0.45 0.71 1.12
1800~3600 0.71 1.12 1.8

Specification

Sensor Piezoelectric Transducer
Measuring Range Acceleration 0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak
Velocity 0.01~400mm/s 0.004~16.0inch/sTrue RMS
Displacement 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range Acceleration 10Hz~10kHz
Velocity 10Hz~1kHz
Displacement 10Hz~1kHz
Rotation Rate Range 60~99,990RPM(r/min) (Reading should be multiplied by 10 if the display shows ‘10’)
Frequency Range 1~20,000Hz (Reading should be multiplied by 10 if the display shows ‘10’)
Accuracy 5% of Reading+2 digits
Operating Conditions Temperature 0~50ºC
Humidity <90%RH
Power Supply 4x1.5V AAA(UM-4)Battery
Dimensions 140x72x34mm
Weight 380g(Not Including Batteries)

Standard accessories:

Main unit

Piezoelectric Transducer

Probe (cone)

Probe Spherical

Contact Tachometer Sensor

Refiective Tape Marks 350mm

Carrying case

Manual

Test Report

Optional accessories:

Headset

USB data cable with software

Bluetooth date adapter with sofrware
