Specifications
Brand Name :
Neide
Model Number :
ND-P04
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100sets/month
Delivery Time :
7-22 work days
Packaging Details :
Wooden Box(standard export packaging)
Brand :
Neide
Customized :
Welcome
Factory :
Yes
Customer :
More than 500+
Material :
SUS304 or customized
After-sales service :
Yes
Transportation :
By Sea
Reply for probme :
Within 24 hours
Description

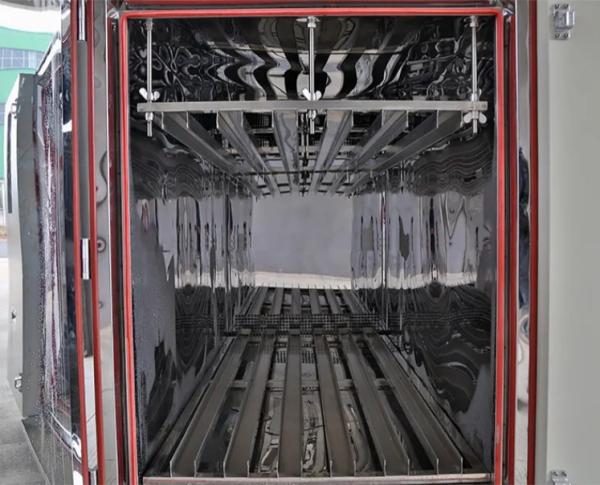

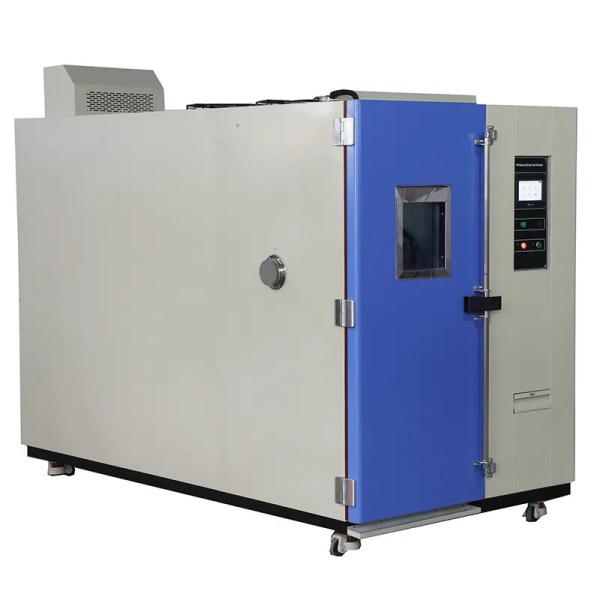

Photovoltaic Solar Panel Simulator Test Chamber PV Test Equipment

Product Description:

The Photovoltaic Solar Panel Simulator Test Chamber, an advanced and highly specialized piece of PV test equipment, is meticulously engineered to meet the most rigorous and exacting demands of the rapidly evolving photovoltaic industry. This state-of-the-art chamber, equipped with cutting-edge technology and sophisticated control systems, plays an indispensable and pivotal role in comprehensively evaluating and fine-tuning the performance of solar panels under a wide array of simulated conditions. These conditions span from extreme temperature variations, mimicking both scorching desert heat and frigid polar cold, to diverse levels of humidity, replicating the dampness of tropical rainforests and the aridity of arid deserts, as well as different solar irradiance intensities, mirroring everything from bright, cloudless days to overcast, low-light scenarios.

Specification:

Model
ND-P04
Internal Dimension (mm)
1300*700*1350
Overall Dimension (mm)
1900*1100*1750
Temperature Range
-60℃ ～ +100 ℃
Humidity Range
20% ~ 98% RH
Humidity Deviation
± 2.5% RH
Temperature Change Rate
1 ~ 3.4℃ / Min
Panel Size
1M*2M
Panel Capacity
4 / 6 / 8 / 10 / 12 Pieces
Cooling
Environmentally friendly refrigerant
Controller
Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB
Sensor
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Safety Device
Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection;
Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection
Exterior Material
Steel Plate with protective coating
Interior Material
SUS304 stainless steel
Standard Configuration
1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply
220V 50Hz / 380V 50HZ
Standard
IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345
