Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter
Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter
Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter
Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter
Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter
Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter
Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter
Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter
Specifications
Brand Name :
Neide
Model Number :
ND-800
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100sets/month
Delivery Time :
7-22 work days
Packaging Details :
Wooden Box(standard export packaging)
Brand :
Neide
Customized :
Welcome
Factory :
Yes
Customer :
More than 500+
Material :
SUS304 or customized
After-sales service :
Yes
Transportation :
By Sea
Reply for probme :
Within 24 hours
Description

Environmental Climate Hot And Cold Impact Testing Chamber

Production Introduction:

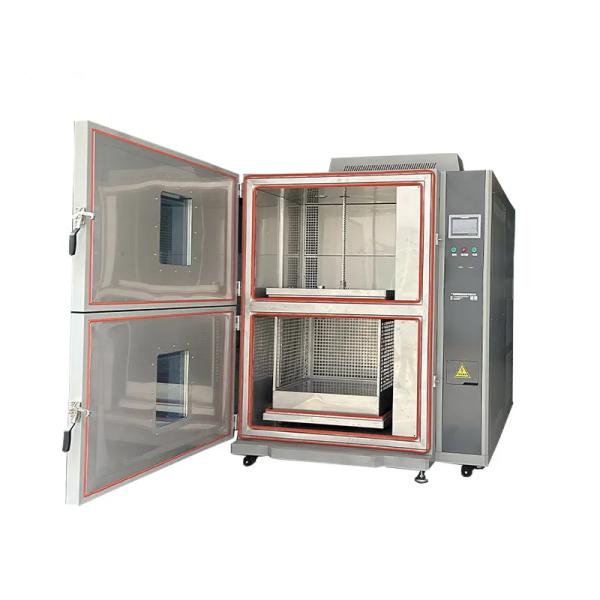

The Two - zone Thermal Shock Test Chamber operates on a specific testing principle. It primarily controls a portable basket (the test sample area) to rapidly shuttle between a cryogenic tank and a high - temperature tank. This enables the achievement of rapid thermal shock tests. Throughout the entire testing process, the test samples move in unison with the mobile gondola.

This test chamber is highly versatile and suitable for examining a wide range of items, including complete sets of products, components, parts, and materials that are exposed to rapid temperature changes. The temperature impact test chamber is designed to efficiently evaluate, within the shortest possible time, the test samples for any chemical or physical damage resulting from thermal expansion and contraction caused by temperature variations.

Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter

Environmental Climate Hot And Cold Thermal Impact Testing Chamber Two Zone 100 Liter

Specification:

Item

Specification

Internal dimension(W*D*H)

400*500*500mm

External dimension(W*D*H)

600*1080*1380mm

Working capacity

100 liter

Internal chamber material

SUS#304 stainless steel, mirror finished

External chamber material

Stainless steel with paint spray

Temperature range

-70℃~+150℃

Temperature fluctuation

±1C

Sample tray

SUS#304 stainless steel, 2pcs

Observation window

Tempered glass: 250*300mm

Testing hole

Diameter 50mm, for cable routing

Power supply source

Three-phase, 380V, 50Hz

Safety protection device

Protection for leakage

Over-temperature

Compressor over-voltage and overload

Heater short circuit

Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
