Specifications
Brand Name :
HUWEI
Model Number :
HW-4.5、5.0
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
500-1000usd/set
Payment Terms :
T/T,Western Union,MoneyGram,L/C
Supply Ability :
1000pcs within one month
Delivery Time :
15days
Packaging Details :
standard export packing
Weight :
3.0kg
product name :
film viewer for industrial use
Window Size :
253mm × 68mm
Power Supply :
AC 220V (±10%) 50Hz
Power Consumption :
200W
Dimensions :
380mm × 102mm × 152mm
Description

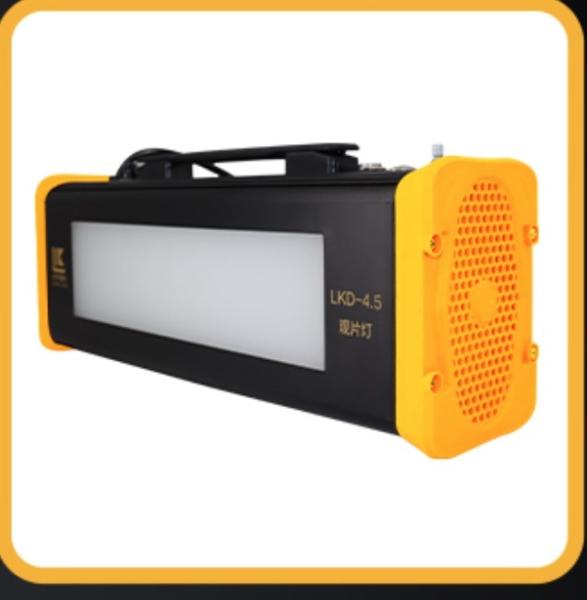

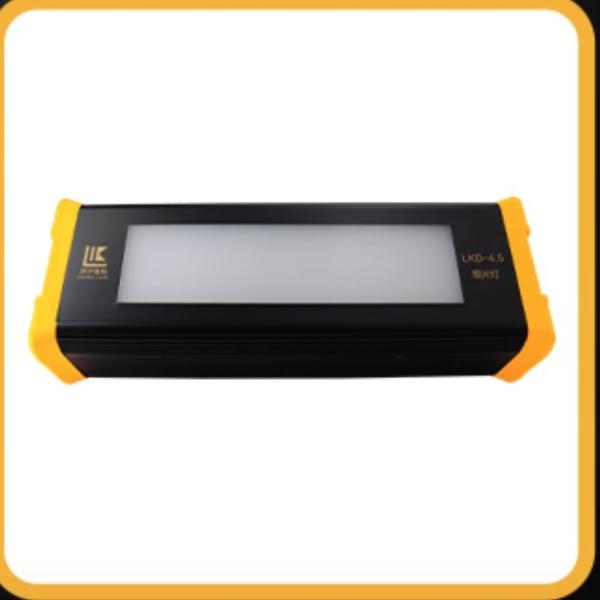

Digital Led Industrial Radiographic Film Viewer Black-and-White Density

Features
1. Multi-level digital dimming function allows users to view films with varying darkness levels.

2. Top-mounted knob design for convenient operation.

3. Adjustable film review area, adjustable via the zoom button, eliminating the need for a sunshade.

4. Large viewing window with a well-spaced LED matrix for uniform illumination.

5. Cold light source design for extended life, no film damage, and reduced eye irritation.

6. Foot switch for convenient viewing.

7. Aluminum alloy housing with large-diameter axial fans on both sides for optimal heat dissipation.

8. Imported optical diffuser panel on the window for superior light transmittance, exceeding 92%, ensuring even illumination.

Technical Parameters
1. Brightness:

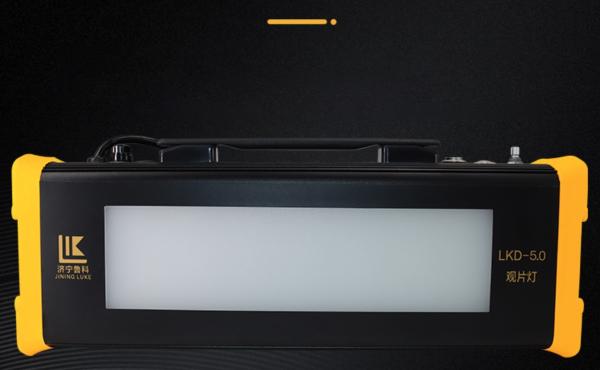

LKD-5.0: 300,000 cd/m²;

LKD-4.5: 200,000 cd/m²;

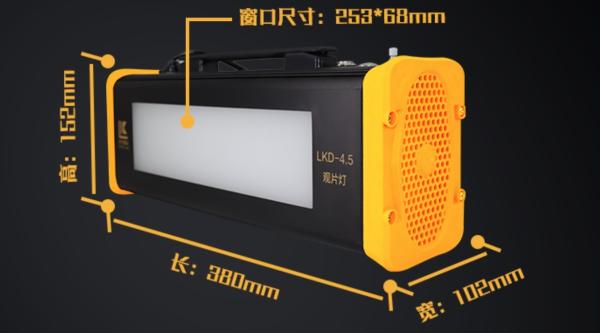

2. Window Size: 253mm × 68mm;

3. Power Supply: AC 220V (±10%) 50Hz;

4. Power Consumption: 200W;

5. Dimensions: 380mm × 102mm × 152mm;

6. Weight: 3.0kg.

Included:
1. Film Viewer (1 unit);

2. Foot Switch (1 unit);

3. Magnifier (1 unit);

4. Film Barrier (1 unit);

5. Sunshade (1 unit);

6. Fuses (2 units, 3A);

7. Random Documents (1 unit);

8. Instrument Case (1 unit).
