HUIWEI Magnetic Particle Testing Yoke Flaw Detector NDT MPI Equipment AC DC Power
HUIWEI Magnetic Particle Testing Yoke Flaw Detector NDT MPI Equipment AC DC Power
Specifications
Brand Name :
HUIWEI
Model Number :
HW-M61S
Certification :
ISO9001, CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
4000-8000USD/SET
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500SETS WITHIN ONE MONTH
Delivery Time :
15WORKING DAYS
Packaging Details :
Standard export packaging
Product name :
Magnetic Flaw Detector
Temperature :
≤40℃
Yoke dimensions :
193x166x40(mm3)
Charge time :
4H
Battery capacity :
8000mAh
Main unit weight :
0.9KG
Magnetic pole spacing :
30～190mm
UV radiation intensity :
≥6000μW/cm2
Maximum charge current :
2A
Description

HUIWEI Magnetic Particle Testing Yoke Flaw Detector NDT MPI Equipment AC and DC Power

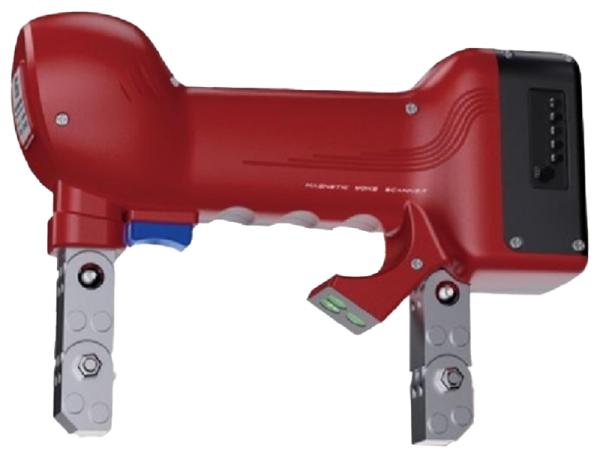

HW-M61S is a new type of ideal magnetic particle flaw detector. Its lightweight and portable main unit and light horseshoe-shaped electromagnetic yoke design greatly improve the operator's comfort. It has its own power supply, making on-site testing more convenient.

Functional features::

◆ Selectable AC or DC detection modes
◆ High-brightness LED lighting and rust-resistant magnetic yoke switch
◆ Ultra-long battery life, approximately 16 hours of continuous operation on a single charge
◆ Capable of detecting defects near the surface and deep within the area
◆ Strong lifting force and high sensitivity, compact and portable, and easy and flexible operation
◆ Multiple protections (overvoltage, overcurrent, overtemperature, and short-circuit) ensure safe and reliable operation

Technical parameter

Sensitivity

Displays clear magnetic traces on A1 15/100 sensitivity test strips

Pole spacing

10～190mm

AC boost

69N

DC lifting force

225N

White light illuminance

≥3000Lx

UV radiation intensity

≥6000μW/cm2

Battery capacity

8000mAh

Continuous power-on time

≤15s

Maximum charge current

2A

Handle temperature

≤40℃

Charge time

4h

Yoke weight

2Kg

Operating temperature

-20°C to 50°C

Main unit weight

0.9Kg

Duty cycle at 30°C

≥10%

Yoke dimensions

193x166x40(mm3)

Duty cycle at maximum output

≥10%

Main unit dimensions

177x75x49 (mm3)

Single battery capacity

Continuous working time available ≥ 16 hours (normal operation according to specifications)
Our Advantages

Installation and training:

If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.
After Service

One year guarantee for whole machine.

24 hours technical support by email or calling.
