High Performance Welding Rt Equipment for Petrochemical Industrial NDT Inspection

Main introduction:

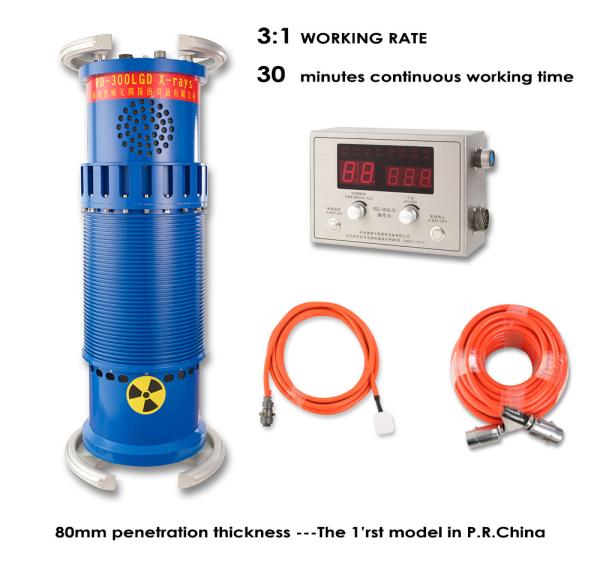

Advanced 300kV Industrial Radiography System (RD-300LG)‌

‌Core Technical Specifications‌

• ‌Dual-Mode Operation‌: Configurable for both directional and panoramic exposure modes
• ‌Enhanced Tube Technology‌: Features a 300kV ceramic emitter with superior thermal stability
• ‌Optimized Duty Cycle‌:
  • ‌Mainland China‌: 4:1 operational ratio for intensive industrial applications
  • ‌International Markets‌: 3:1 ratio adapted for diverse field conditions
• ‌Extended Runtime‌: Supports uninterrupted 30-minute continuous exposures

‌Performance Highlights‌

• ‌Material Penetration‌: Capable of inspecting 66mm-thick A3 steel structures, with peak performance reaching 80mm penetration in equivalent materials
• ‌Safety Integration‌: Automated door interlock system ensures operator protection during active imaging

‌Innovative Engineering Features‌

• ‌Cooling Solution‌: Combines SF6 gas insulation with advanced anode air cooling for sustained thermal management1
• ‌Environmental Design‌:
  • Zero ozone emission during operation
  • Reduced electromagnetic interference for safer workspaces3

‌Industry Applications‌

Primarily deployed for integrity assessment of critical energy infrastructure, including:

• Cross-country petroleum pipelines
• High-pressure gas transmission networks5

‌Compliance & Adaptability‌

• Meets PRC's GB/T standards for non-destructive testing equipment
• Modular architecture supports rapid configuration for both fixed-site and mobile deployments

RD-300LG Technical Parameter

Item	Technical Data
	AC Power	AC 220V+/-10%, 50Hz
Output	Tube current	5mA
	High voltage transfer input voltage fluctuation	+/- 1%
X Ray Generator	Cooling method	Force air cooling
	Insulated method	SF6 gas insulation
	Soft working pressure (20ºC)	0.35~0.45Mpa
Working Condition	Temperature	-30-40ºC
	Relative Humidity	<85%
	Altitude	1000m
Max Penetration Condition	Steel	A3(mm)
	Focal length	600m
	Exposure	≤30mAmin
	Film	Double-sided lead foil sensitization
	Darkroom treatment	20+/-2ºC, 5min
	Optic density	D≥2.0
The controller	Size
	Weight
	Timing error	5min +/- 10%
Working Rate	Working & rest 2:1 working rate, the max exposure time 9.5min
