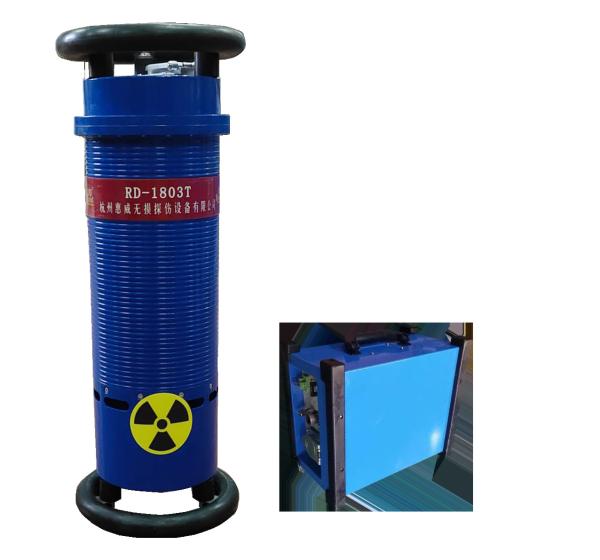

50-180kv Industrial Non Destructive Testing Equipment For Weld Inspection
50-180kv Industrial Non Destructive Testing Equipment For Weld Inspection
Specifications
Brand Name :
HUIWEI
Model Number :
RD-1803T
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
6000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Application :
Industrial field
Function :
steel defect,NDT inspection welding
Color :
Stainless Steel,Silver gray
Warranty :
12 Months
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Film type :
Any kinds of industrial film
Max.penetration :
25mm(A3 STEEL)
Exposure time :
5 minutes
Voltage :
50-180kv
Tube current :
3mA
Name :
NDT industrial x-ray machine
Focus Spot :
0.9*0.9
Weight :
12kg
Description

PRODUCT DESCRIPTION

Non-Destructive Testing Equipment Supplier Industrial X Ray Machine Manufacturers For Weld Inspection

X-ray flaw detectors are specialized instruments crafted to identify and examine internal imperfections or defects within materials and components without causing any damage. As a non-destructive testing (NDT) technique, it's extensively applied across multiple industries to guarantee the integrity, quality, and safety of products and structures.

Core applications:
HUIWEI's flaw detector products have been broadly utilized for non-destructive testing in fields such as aerospace, welding engineering, shipbuilding, boiler piping, petrochemical engineering, aircraft manufacturing and maintenance, automotive industry, and defense sectors, among others.

RD-1803T the technical parameters

Project

RD-1803T

input

Input power

Single-phase 50Hz AC 220± 10% V

Power supply capacity

No less than 2.0 KVA

output

X - ray tube voltage

50~ 180 KVp

X ray tube current

3mA

mA Stability degree

± 1%

Ray tube

Focal size

0.9× 0.9

X-ray irradiation range

45±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

Φ210×580

12

Maximum penetration

Thickness steel A3(mm)

25 mm (5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 1:1 Work and rest,Longest continuous exposure time 5mins

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. why should you buy from us not from other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO.,LTD is a professional manufacturer specilizing in NDT equipment for 30 years long, integrating development and manufacturing in-house. and it is one of companies strong supported by country.

3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Escrow;
