X Ray NDT Radiographic Testing Ut Used For Welding Engineering Industry
X Ray NDT Radiographic Testing Ut Used For Welding Engineering Industry
Specifications
Brand Name :
HUIWEI
Model Number :
RD-2805TH
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
12000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Product name :
Industrial x ray testing xxg3005,x-ray welding machine ndt,X-ray Inspection Systems,NDT industrial film processing machine,industrial NDT equipment NDT x ray testing machine
Warranty :
12 Months
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Power supply :
AC220V±10%
Application :
Industrial field
Function :
steel defect,NDT inspection welding
Color :
Stainless Steel,Silver gray,blue and white
Max.penetration :
40mm(A3 STEEL)
Film type :
Any kinds of industrial film
Voltage :
150-280kv
Exposure time :
15 minutes
Name :
NDT industrial x-ray machine
Tube current :
5mA
Controller Weight :
12kg
Focus Spot :
1.0*2.4
Generator Weight :
27kg
Description

X Ray Ndt Testing Radiographic Testing Ut Used For Welding Engineering Industry

Main introduction:

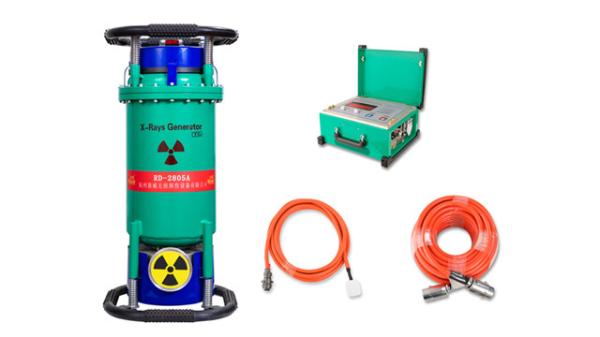

RD-2805 is an X-ray machine with automatic intelligent training machine control system. Its biggest feature is its high intensity anti-interference ability. Its working mode is continuous 4:1 working exposure, and the maximum exposure time is 15 minutes. This series of models is divided into directional and circumferential radiation models. The radiation angle of the directional machine is 40 ± 5 °, the circumferential radiation angle is 360 °, and the maximum penetration of A3 steel thickness is 45mm.

This model is a classic model for field and aerial operations with small size, light weight (generator weight 26kg), strong penetration ability and high stability.

Product features:

The designated product for non-destructive testing of the first 1 million KW construction unit in China Jianan, which has been tested for a long time.
Technical breakthrough, high voltage, short exposure, performance test, 10,000 films in 30 days
Small and light, strong penetration, earthquake and impact resistance
Suitable for filming in high-altitude and narrow spaces such as large-scale power construction unit installation and shipyards
Small size, light weight, easy to carry, time-saving and labor-saving, strong stability, low failure rate, continuous exposure without 1:1 rest, which improves filming efficiency by 50%.

Main uses:

X Ray NDT Radiographic Testing Ut Used For Welding Engineering Industry

RD-2805TH the technical parameters

Project

RD-2805TH

input

Input power

Single-phase 50Hz AC 220± 10% V

Power supply capacity

No less than 2.0 KVA

output

X - ray tube voltage

150-280 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

1.0× 2.4

X-ray irradiation range

360°*25°

Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

Φ280mm´280mm´620mm

27

Maximum penetration

Thickness steel A3(mm)

40 mm Fe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 2.5:1 Work and rest,Longest continuous exposure time 15mins

FAQ

Q1. Are you a factory or a trading company?
We are a factory with 30 years of experience.

Q2. What's the MOQ ?
(1). Normally, MOQ is 1 piece. The quantity is depending on the clients’ needs.
(2)According to customer order, the quantity still can be negotiated and we will product immeditaly if we dont have stock.

Q3. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.

Q4.Which payment can be acceptable ?
We could accept the payment by T/T, Paypal, Western Union,L/C, etc.

Q5. How about the lead time?
If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment.
If in stock, 2-4 working days are possible. But it depends on the exact products and quantity.

Q6. What certificates will be offered?
CE and ISO are certified for most products.
Always high quality is offered to avoid any defective products. Also, protective packaging is offered to avoid destroy during
delivery.
