RD-G300 Top Notch X Ray Weld Inspection Equipment For Non Destructive Testing And Inspection
RD-G300 Top Notch X Ray Weld Inspection Equipment For Non Destructive Testing And Inspection
Specifications
Brand Name :
HUIWEI
Model Number :
RD-2805
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
40000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Warranty :
12 Months
Power supply :
AC220V±10%
Application :
Industrial field
Function :
steel defect,NDT inspection welding
Color :
Stainless Steel,Silver gray,blue and white
Max.penetration :
80mm(A3 STEEL)
Film type :
Any kinds of industrial film
Exposure time :
5 minutes
Voltage :
30-300kv
Name :
NDT industrial x-ray machine
Tube current :
5mA
Controller Weight :
12kg
Generator Weight :
30kg
Type :
Non-destructive Testing Equipment
Inspection Speed :
Up to 20m/min
Focus Spot :
0.9*0.9
Detector Pixel Size :
200μm
Power Supply :
AC 220V/50Hz
X Ray Tube Voltage :
100kV
Inspection Method :
Real-time Imaging
Detector Type :
Flat Panel Detector
Image Processing Software :
Included
X Ray Tube Current :
5mA
Inspection Accuracy :
±0.5mm
Image Resolution :
1024 x 1024 pixels
Description

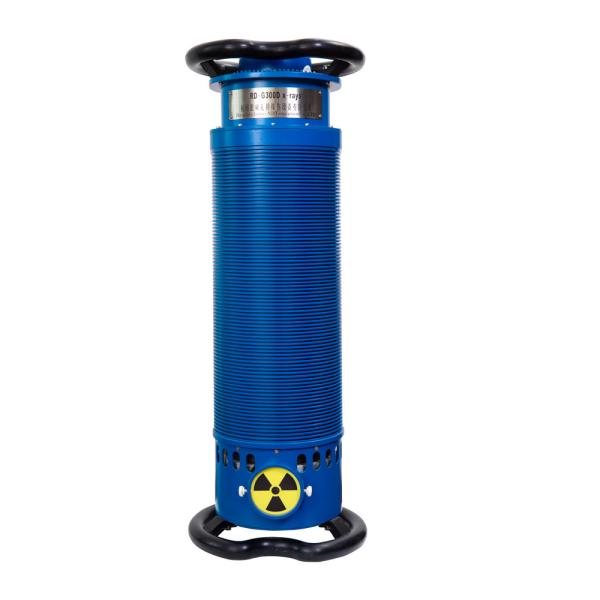

RD-G300 The Top-Notch X Ray Weld Inspection Equipment for Non-Destructive Testing and Inspection in Industrial Applications

Technical Overview:‌
Featuring advanced high-frequency voltage stabilization technology, this system delivers exceptional material penetration with minimized exposure duration.

‌Core Components:‌

  • Utilizes a custom-engineered metal-ceramic X-ray tube assembly for enhanced vibration resistance and operational dependability
  • Supports uninterrupted operation at maximum duty cycle, optimizing workflow efficiency

‌Portable Design:‌

  • Compact tube head weighing merely 30kg for easy mobility
  • Integrated voltage regulation module compatible with wide-range AC input (85-264V, 45-65Hz), ensuring energy-efficient performance

‌Field Application Advantages:‌

  • Ideal for mobile power sources including portable generators and battery packs
  • Rated IP65 with military-grade metal connectors for rugged environments
  • Operational range: -10°C to +50°C ambient temperature

‌System Compatibility & Service:‌

  • Fully compatible with digital radiography (DR) systems
  • Rapid deployment capability with minimal maintenance requirements

‌Key Benefits:‌

  • Significant time savings through continuous 100% duty cycle operation
  • Reduced operational costs with low-power consumption design
  • Durable construction for demanding field conditions

RD-G300 Top Notch X Ray Weld Inspection Equipment For Non Destructive Testing And Inspection

FAQ

  • Q1. What certificates will be offered?
    CE and ISO are certified for most products.
    Always high quality is offered to avoid any defective products. Also, protective packaging is offered to avoid destroy during
    delivery.
  • Q2. How about the lead time?
    If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment.
    If in stock, 2-4 working days are possible. But it depends on the exact products and quantity.
  • Q3. What's the MOQ ?
    (1). Normally, MOQ is 1 piece. The quantity is depending on the clients’ needs.
    (2)According to customer order, the quantity still can be negotiated and we will product immeditaly if we dont have stock.
