High Performance Welding Rt Equipment for Petrochemical Industrial NDT Inspection

About Huiwei Detection

Product Overview

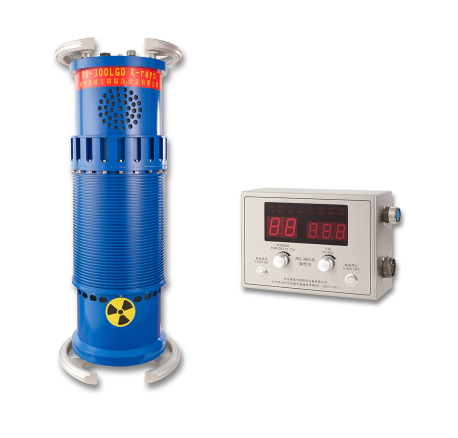

RD-300LG Technical Parameter

Item	Technical Data
	AC Power	AC 220V+/-10%, 50Hz
Output	Tube current	5mA
	High voltage transfer input voltage fluctuation	+/- 1%
X Ray Generator	Cooling method	Force air cooling
	Insulated method	SF6 gas insulation
	Soft working pressure (20ºC)	0.35~0.45Mpa
Working Condition	Temperature	-30-40ºC
	Relative Humidity	<85%
	Altitude	1000m
Max Penetration Condition	Steel	A3(mm)
	Focal length	600m
	Exposure	≤30mAmin
	Film	Double-sided lead foil sensitization
	Darkroom treatment	20+/-2ºC, 5min
	Optic density	D≥2.0
The controller	Size
	Weight
	Timing error	5min +/- 10%
Working Rate	Working & rest 2:1 working rate, the max exposure time 9.5min

Why Choose the RD-300LG?

• Gamma-Ray Replacement Solution: Safely replace Ir-192 gamma-ray sources, eliminating radioactive material handling risks, regulatory burdens, and associated costs.
• Ultra-High Penetration Power: Delivers up to 80mm steel penetration, ideal for thick-wall pressure vessels and large-diameter components.
• Industry-Leading Continuous Operation: 99-minute uninterrupted exposure capability breaks free from conventional work-rest cycles, enabling faster inspection of heavy components.
• Superior Performance: Specifications exceed comparable domestic and international products, ensuring reliable results in demanding industrial applications.
• Versatile Configurations: Directional and panoramic models cover both flat welds and full-circle radiography, adapting to diverse testing needs.

Primary Applications & Use Cases

1. Pressure Vessel Manufacturing
   • Class I and Class II pressure vessel weld inspection
   • Thick-wall boiler and reactor component radiographic testing
   • Compliance-driven quality control for industrial pressure equipment
2. Heavy Industrial Fabrication
   • Large-diameter pipe and component butt weld inspection
   • Thick-wall steel structure and heavy machinery testing
   • Fabrication yard and workshop NDT for high-thickness components
3. Oil & Gas and Petrochemical Industries
   • Thick-wall pipeline and storage tank inspection
   • Refinery and chemical plant equipment installation and maintenance testing
   • Replacement for gamma-ray testing in remote or regulated environments
4. Nuclear and Energy Sector
   • Power plant component and piping inspection
   • Safe, isotope-free radiographic testing for regulated facilities
   • Compliance-focused NDT for critical energy infrastructure

Packaging & Shipping

• Secure, Heavy-Duty Packaging: Each unit is packed in shock-resistant, moisture-proof wooden crates with custom foam inserts, protecting the generator, control unit, and accessories from impact and vibration during transit. All components are individually labeled for quick identification.
• Complete Documentation: Every order includes factory calibration certificates, operation manuals, safety guidelines, and all necessary customs documents for seamless international shipments.
• Flexible Delivery Options: We offer sea freight, air freight, and express shipping solutions tailored to your timeline and location, with full tracking and door-to-door delivery support available.
• Pre-Shipment Quality Check: Every unit undergoes a final performance and safety inspection before dispatch, ensuring it meets our strict quality standards.

• 12-month comprehensive warranty against manufacturing defects
• Lifetime technical support and remote troubleshooting from our NDT experts
• Fast delivery of original spare parts to minimize downtime
• Optional on-site training for equipment operation, safety procedures, and calibration
• Custom technical consultation to optimize testing parameters for your specific projects
