HS-225/320/450 High Energy Industrial CT Scanner NDT Inspection System for Distributor Reseller Partnership Asia
HS-225/320/450 High Energy Industrial CT Scanner NDT Inspection System for Distributor Reseller Partnership Asia
Specifications
Input Power Supply :
230VAC±10% (225) / 380VAC±10% (320/450)
Focal Spot Size :
0.4 mm / 1.0 mm
Active Area :
427×427 mm (225) / 430×430 mm (320/450)
Supply Ability :
8 Sets per Month
Delivery Time :
60-90 working days after order confirmation
Dimensions L×D×H :
2700×2800×2365mm (225) / 2620×2585×2775mm (320/450)
Pixel Pitch :
139 µm (225) / 140 µm (320/450)
Brand Name :
HUIWEI
Tube Voltage :
225 kV / 320 kV / 450 kV
A/D Conversion :
16 bit
Maximum Workpiece Size :
Φ830×1100 mm
MOQ :
1 Set
X-Ray Tube Type :
Closed Tube
Detector Type :
CsI (Cesium Iodide)
Maximum Inspection Capacity :
100 kg
Weight :
About 5000kg (225) / 10000kg (320) / 12000kg (450)
Model Number :
HS-225/320/450
Certification :
ISO 9001:2015, CE, FDA 21 CFR 1020.40, IEC 61010-1
Payment Terms :
T/T,L/C at sight
Maximum Power Consumption :
3.8 kVA (225) / 4.5 kVA (320) / 6 kVA (450)
Maximum Output Power :
1.8 kW (225) / 1.5 kW (320/450)
Pixel Matrix :
3072×3072 pixels
FOD/FDD (Max) :
36 mm / 1150 mm
Packaging Details :
Export-grade heavy-duty wooden crate with vacuum-sealed moisture barrier, shock indicators, and reinforced steel strapping
Place of Origin :
Hangzhou, Zhejiang, China
Price :
USD 150,000-500,000 / Set
Description

HS-225/320/450 High Energy Industrial CT Scanning System

Premium NDT Solution for Authorized Distributors Across Asia

225kV / 320kV / 450kV Closed Tube Source CsI Detector 3072²

Product Overview

The HS-225/320/450 series is a high-energy industrial computed tomography (CT) scanning system designed for the most demanding non-destructive testing applications. Available in three powerful configurations—225kV, 320kV, and 450kV—each equipped with a closed-tube radiation source for long-term reliability and a CsI (Cesium Iodide) flat panel detector with 3072×3072 pixel matrix and 16-bit A/D conversion for exceptional image quality. The system accommodates workpieces up to Φ830×1100mm with a maximum inspection capacity of 100kg, making it ideal for castings, forgings, engine blocks, and heavy industrial components across Asia's growing manufacturing sectors.

As a distributor partner, you gain access to a complete ecosystem of support: competitive wholesale pricing with healthy margin structures, protected sales territories, comprehensive technical training, co-branded marketing materials, and dedicated after-sales engineering support. With manufacturing hubs expanding across Southeast Asia, India, and South Korea, the demand for advanced industrial CT inspection has never been stronger. Position your business at the forefront of this growth.

Product Views

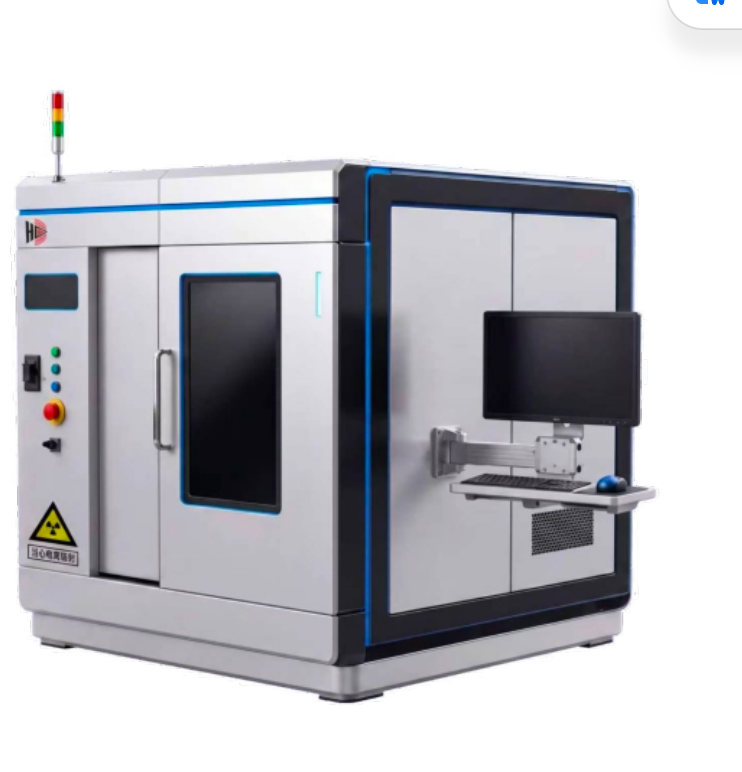

HS-225/320/450 System — Front View
HS-225/320/450 System — Interior Configuration

Distributor Partnership Advantages
