Aviation NDT Testing Equipment Electronic Industrial Endoscope Detector
Aviation NDT Testing Equipment Electronic Industrial Endoscope Detector
Specifications
MOQ :
1 set
Payment Terms :
visa,online bank payment
Delivery Time :
sets1 - 10: 20days sets>10:To be negotiated
Place of Origin :
XIAMEN,china
Brand Name :
COBE
Certification :
ISO9001
Price :
Negotiable
Packaging Details :
Special toolbox or wooden box
Supply Ability :
50 Set/Sets per Month
Measuring range :
1-10m
Effective pixels :
400000
Size of display screen :
5.7 inches
Probe perspective :
360
Waterproof :
IP67
Size :
357*150*85mm
Description
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
COBE
Model Number:
COBE-ESP02
Product name:
Portable industrial endoscope
Measuring range:
1-10m
Effective pixels:
400000
Size of display screen:
5.7 inches
Probe perspective:
360
Waterproof:
IP67
Size:
357*150*85mm
Weight:
0.9kg
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Portable industrial endoscope will be packed by special toolbox and wooden box.
Port
XIAMEN
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 To be negotiated

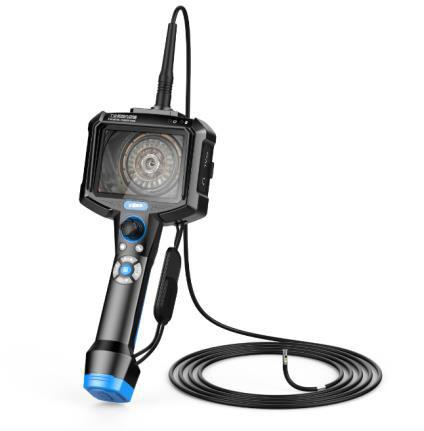

HIE series industrial endoscope:

It is widely used in the internal video inspection of various devices and pipelines, so as to improve the accuracy and sensitivity of video detection. Equipped with different size, diameter of the probe. To meet your requirements, the probe can rotate 360°, vertically 270 °, will not miss any corner. Easy to operate with clear images.

Large screen, high brightness 5.7"color TFT-LCD display
Electric adjustment of optical focal length: 2X
Signal to noise ratio :≧52Db
The probe "electric" rotation: four direction (including center reset) 360° horizontally, 360° vertically
Probe Cable Length:1m~10m
Probe Diameter:6mm~30mm
Lens Length:20mm
Image/Vedio will be stored in the SD card (8G)
Image/Vedio: View, Delete, Print
Built in rechargeable lithium battery 8000mAh

Aviation NDT Testing Equipment Electronic Industrial Endoscope Detector
Aviation NDT Testing Equipment Electronic Industrial Endoscope Detector

Industrial Endoscope Application:

1) Auto industry:used to check the engine,hydraulic components,the nozzle part of the quality inspection and assembly testing.

2) Industrial machinery:used to check boiler,heat ex-changer,mechanical equipment and manufacturing equipement.

3) Petrochemical industry:for craft-oriented configuration pipes,pressure vessels,piping and other equipment inspection.

4) Aerospace and aviation:applied to the turbine,blade,combustor regular inspection and the body flaw detecting,also applied to the R&D and manufacturing of the rocket engine.

5) Railways,ships:adopt to turbines,heaters,diesel engines,boilers,fire,pipe inspection.

Aviation NDT Testing Equipment Electronic Industrial Endoscope Detector
Aviation NDT Testing Equipment Electronic Industrial Endoscope Detector
Aviation NDT Testing Equipment Electronic Industrial Endoscope Detector
