Specifications
Brand Name :
UNMAG
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T L/C
Supply Ability :
100 tons per month for NdFeB magnet
Delivery Time :
20-25days
Packaging Details :
cartons,pallets
Price :
As negotiation
Matetrail :
A3 Steel case+NdFeB magnet
Max. Working temperature :
80°C
Customization :
Custom-made Strength
Direction of Magnetization :
Axial
Tolerance :
±0.1
Coating :
Nickel
Description

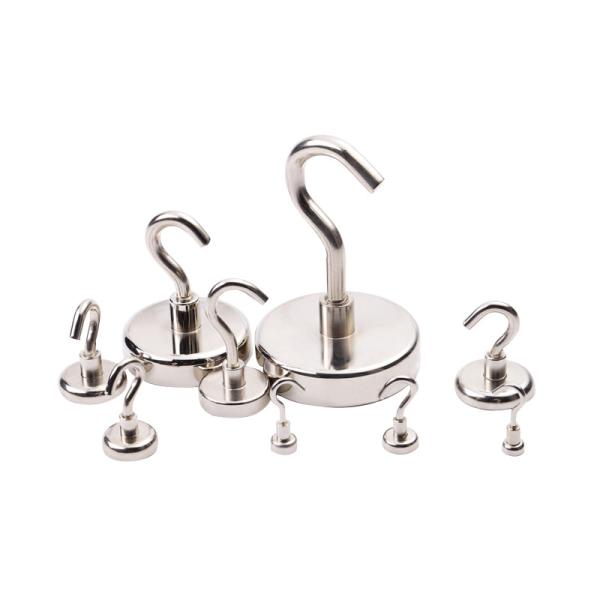

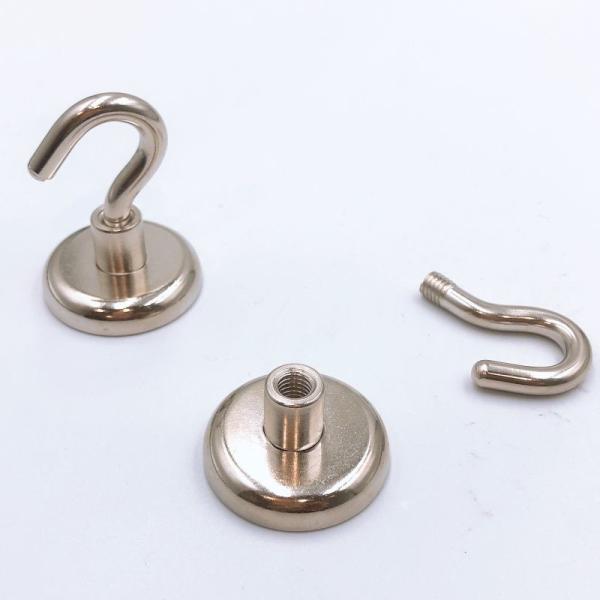

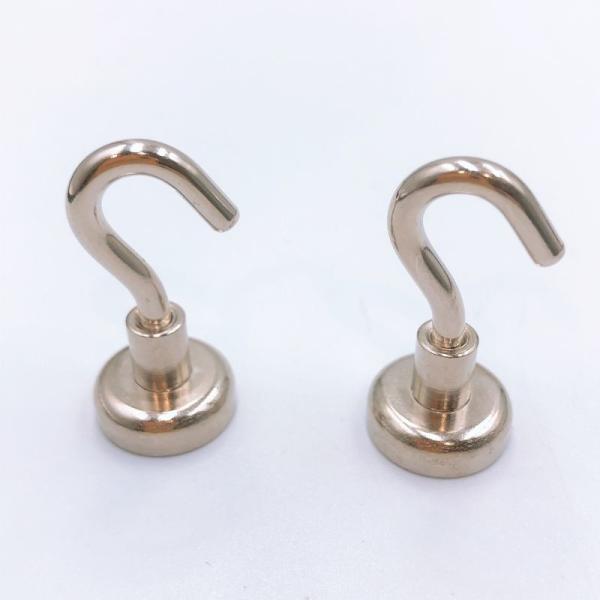

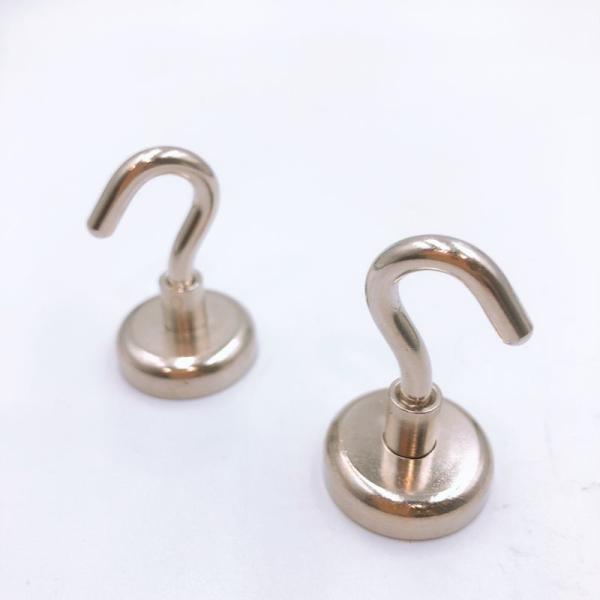

NdFeB Pot Magnet With Hook

Material: A3 Steel case+NdFeB magnet

+Pvc ring/Epoxy gule

Coating: Nickel

Magnetization direction: Axial

Max. Working temperature: 80°C

Customization: Custom-made Strength

A type neodymium magnetic hook is equipped with a

hook on the iron shell,which can attact the magnetic hook

sucker to the iron interface for lifting objects.

Model E--NdFeB Pot Magnet With Hook

Nickel Coated Industrial Strength Magnetic Hooks Custom Made Antirust

Model

D

(mm)

D1

(mm)

M

(mm)

H

(mm)

h

(mm)

Strength

(kg)
UN-E10 10 6 3 12 4 3
UN-E12 12 6 4 12 5 4
UN-E16 16 6 4 13 5 5.5
UN-E20 20 8 4 15 7 9
UN-E25 25 10 5 17 8 22
UN-E32 32 10 6 18 8 34
UN-E36 36 10 6 18 8 41
UN-E42 42 12 8 20 9 68
UN-E48 48 12 8 24 11.5 81
UN-E60 60 14 8 30 15 113
UN-E75 75 16 10 34 18 164

The forces have been determined at room temperature on a plate in polished steel (Q235B) with

a thickness of 10 mm (80mm/min).A maximum deviation of -10% compared to the specified value is

possible in exceptional cases. Value is exceeded in general.Depending on the type of application

(installation situation,,temperatures, counter anchor etc.) the forces can be influenced enormously.

The indicated values are serving as an orientation. Please get advice and help from our experts.
