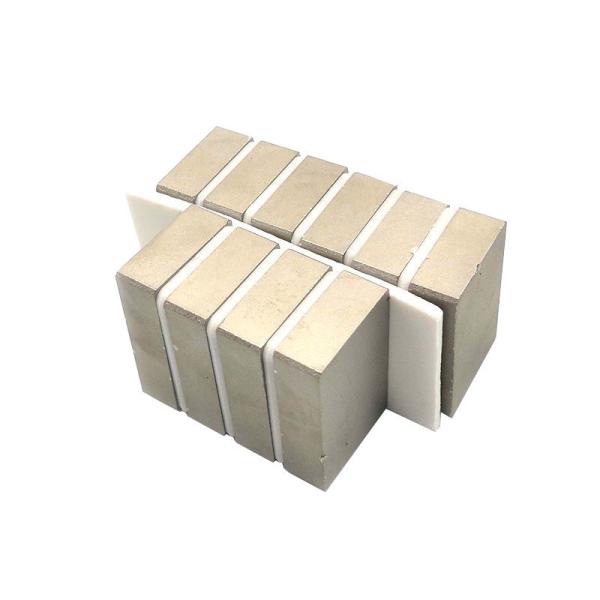

Smco Samarium Cobalt Block Magnets Uncoated YXG-26H YXG-30H YXG-28
Smco Samarium Cobalt Block Magnets Uncoated YXG-26H YXG-30H YXG-28
Smco Samarium Cobalt Block Magnets Uncoated YXG-26H YXG-30H YXG-28
Smco Samarium Cobalt Block Magnets Uncoated YXG-26H YXG-30H YXG-28
Smco Samarium Cobalt Block Magnets Uncoated YXG-26H YXG-30H YXG-28
Smco Samarium Cobalt Block Magnets Uncoated YXG-26H YXG-30H YXG-28
Specifications
Brand Name :
UNMAG
Place of Origin :
China
Delivery Time :
20-25days
MOQ :
100pcs
Price :
As negotiation
Packaging Details :
cartons,pallets
Payment Terms :
T/T L/C
Supply Ability :
20 tons per month for SmCo magnet
Material :
Samarium Cobalt
Grade :
YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32
Magnetization :
Through Axial,Thickness Or Customized
Coating :
Uncoated
Operating Temperature :
250-500°C
Application :
Spaceflight,National Defense,Microwave,Sensors
Description

YXG-32 Grade Samarium Cobalt Magnet Material

Product Description:

Samarium Cobalt Magnet

Samarium-Cobalt Alloy Magnets, also known as Samarium Cobalt Magnet, are composed of an alloy of samarium and cobalt. They are widely used in spaceflight, national defense, microwave, sensors and other fields. These magnets have excellent temperature stability, corrosion resistance, and high magnetic properties.

The samarium cobalt magnet has a wide range of grades. Including YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32 and other grades. The magnetization of the magnet can be through axial, thickness or customized according to the needs. The samarium cobalt magnets are generally uncoated and have excellent temperature stability and corrosion resistance.

The Samarium Cobalt Magnet has a wide range of applications in the aerospace, automotive, medical and other industries. Its good temperature stability and corrosion resistance make it a good choice for many applications.

Features:

  • Product Name: Samarium Cobalt Magnet
  • Rare Earth Magnet: Samarium-Cobalt Magnet
  • Operating Temperature: 250-500°C
  • Grade: YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32
  • Magnetization: Through Axial,Thickness Or Customized
  • Material: Samarium Cobalt
  • Application: Spaceflight,National Defense,Microwave,Sensors

Technical Parameters:

Grade Coating Operating Temperature Application Magnetization Material
YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32 Uncoated 250-500°C Spaceflight,National Defense,Microwave,Sensors Through Axial,Thickness Or Customized Samarium Cobalt

Magnetic Properites Of SmCo Magnet:

Grade Remanence
(Br)		 Coercivity
(Hcb)		 Intrinsic Coercivity
(Hcj)

Max Energy Product

(BH)max

 Curie Temperature
(TC)		 Max Work Temp
(TW)		 Temperature Coefficient of Br
(Br)		 Temperature Coefficient of Hcj
(Hcj)
T kGS kA/m KOe KA/m KOe KJ/m3 MGOe ℃ ℃ %℃ %℃
YX-16s 0.79-0.84 7.9-8.4 620-660 7.8-8.3 ≥1830 ≥23 118-135 15-17 750 250 -0.035 -0.28
YX-18s 0.84-0.89 8.4-8.9 660-700 8.3-8.8 ≥1830 ≥23 135-151 17-19 750 250 -0.040 -0.28
YX-20s 0.89-0.93 8.9-9.3 684-732 8.6-9.2 ≥1830 ≥23 150-167 19-21 750 250 -0.045 -0.28
YX-22s 0.92-0.96 9.2-9.6 710-756 8.9-9.5 ≥1830 ≥23 167-183 21-23 750 250 -0.045 -0.28
YX-24s 0.96-1.00 9.6-10.0 740-788 9.3-9.9 ≥1830 ≥23 183-199 23-25 750 250 -0.045 -0.28
LTc(YX-10) 0.62-0.66 6.2-6.6 485-517 6.1-6.5 ≥1830 ≥23 75-88 9.5-11 750 300 Temp Range Br Temp Coefficient％℃
　 　 　 　 　 　 　 　 　 　 20-100℃ +0.0156％℃
　 　 　 　 　 　 　 　 　 　 100-200℃ +0.0087％℃
　 　 　 　 　 　 　 　 　 　 200-300℃ +0.0007％℃
YX-12 0.70-0.74 7.0-7.4 358-390 4.5-4.9 358-478 4.5-6 80-103 10-13 450 200 　 　
YXG-24H 0.95-1.02 9.5-10.2 692-764 8.7-9.6 ≥1990 ≥25 175-191 22-24 800 350 -0.025 -0.20
YXG-26H 1.02-1.05 10.2-10.5 748-796 9.4-10.0 ≥1990 ≥25 191-207 24-26 800 350 -0.030 -0.20
YXG-28H 1.03-1.08 10.3-10.8 756-812 9.5-10.2 ≥1990 ≥25 207-220 26-28 800 350 -0.035 -0.20
YXG-30H 1.08-1.10 10.8-11.0 788-835 9.9-10.5 ≥1990 ≥25 220-240 28-30 800 350 -0.035 -0.20
YXG-32H 1.10-1.13 11.0-11.3 812-860 10.2-10.8 ≥1990 ≥25 230-255 29-32 800 350 -0.035 -0.20
YXG-22 0.93-0.97 9.3-9.7 676-740 8.5-9.3 ≥1433 ≥18 160-183 20-23 800 300 -0.020 -0.20
YXG-24 0.95-1.02 9.5-10.2 692-764 8.7-9.6 ≥1433 ≥18 175-191 22-24 800 300 -0.025 -0.20
YXG-26 1.02-1.05 10.2-10.5 748-796 9.4-10.0 ≥1433 ≥18 191-207 24-26 800 300 -0.030 -0.20
YXG-28 1.03-1.08 10.3-10.8 756-812 9.5-10.2 ≥1433 ≥18 207-220 26-28 800 300 -0.035 -0.20
YXG-30 1.08-1.10 10.8-11.0 788-835 9.9-10.5 ≥1433 ≥18 220-240 28-30 800 300 -0.035 -0.20
YXG-32 1.10-1.13 11.0-11.3 812-860 10.2-10.8 ≥1433 ≥18 230-255 29-32 800 300 -0.035 -0.20
YXG-26M 1.02-1.05 10.2-10.5 676-780 8.5-9.8 955-1433 12-18 191-207 24-26 800 300 -0.035 -0.20
YXG-28M 1.03-1.08 10.3-10.8 676-796 8.5-10.0 955-1433 12-18 207-220 26-28 800 300 -0.035 -0.20
YXG-30M 1.08-1.10 10.8-11.0 676-835 8.5-10.5 955-1433 12-18 220-240 28-30 800 300 -0.035 -0.20
YXG-32M 1.10-1.13 11.0-11.3 676-852 8.5-10.7 955-1433 12-18 230-255 29-32 800 300 -0.035 -0.20
YXG-24L 0.95-1.02 9.5-10.2 541-716 6.8-9.0 636-955 8-12 175-191 22-24 800 250 -0.025 -0.20
YXG-26L 1.02-1.05 10.2-10.5 541-748 6.8-9.4 636-955 8-12 191-207 24-26 800 250 -0.035 -0.20
YXG-28L 1.03-1.08 10.3-10.8 541-764 6.8-9.6 636-955 8-12 207-220 26-28 800 250 -0.035 -0.20
YXG-30L 1.08-1.15 10.8-11.5 541-796 6.8-10.0 636-955 8-12 220-240 28-30 800 250 -0.035 -0.20
YXG-32L 1.10-1.15 11.0-11.5 541-812 6.8-10.2 636-955 8-12 230-255 29-32 800 250 -0.035 -0.20
LTC(YXG-22) 0.94-0.98 9.4-9.8 668-716 8.4-9.0 ≥1433 ≥18 167-183 21-23 840 300 Temp Range Br Temp Coefficient％℃
　 　 　 　 　 　 　 　 　 　 –50-25℃ ﹢0.005％℃
　 　 　 　 　 　 　 　 　 　 20-100℃ -0.008％℃
　 　 　 　 　 　 　 　 　 　 100-200℃ -0.008％℃
　 　 　 　 　 　 　 　 　 　 200-300℃ -0.011％℃

Physical Properties Of SmCo Magnet:

Parameter Name Unit SmCo5 Sm2Co17
Density g/cm³ 8.2 ~ 8.4 8.3 ~ 8.5
Curie Temperature ℃ 700 ~ 750 800 ~ 850
Max. Operating Temperature 250 350 ℃ 250 350
Temperature Coefficient Of Br -0.05 -0.03 %/℃ -0.05 -0.03
Vickers Hardness 450 ~ 500 550 ~600 HV 450 ~ 500 550 ~600
Electronic Ressistivity Ω.cm 5 ~ 6 x 10(-5) 8 ~ 9 x 10(-5)
Thermal Conductivity W/mK 12 13

Applications:

UNMAG Samarium Cobalt Magnets, also known as rare earth magnets, are manufactured in China with Grade YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32. UNMAG Samarium-Cobalt Magnet can be magnetized through axial, thickness or customized as required. Its material is samarium cobalt, and it is uncoated. The delivery time is 25-30 days. It is widely used in spaceflight, national defense, microwave and sensors.

Customization:

Samarium Cobalt Magnets

UNMAG is a leading manufacturer of Rare Earth Magnets, including Samarium Cobalt Magnets. Our Samarium Cobalt Magnets are made with the highest quality materials and are expertly crafted to meet your specific requirements. Our Samarium Cobalt Magnets are highly reliable and have a long service life.

Key Features:

  • Brand Name: UNMAG
  • Place of Origin: China
  • Delivery Time: 25-30days
  • Coating: Uncoated
  • Material: Samarium Cobalt
  • Application: Spaceflight,National Defense,Microwave,Sensors
  • Operating Temperature: 250-500°C
  • Magnetization: Through Axial,Thickness Or Customized

For your Samarium Cobalt Magnet needs, trust only UNMAG. Contact us today to get started.

Packing and Shipping:

Samarium Cobalt Magnet Packaging and Shipping:

  • The samarium cobalt magnet is packaged in a sealed and waterproof plastic bag to ensure the product remains in its original condition during shipping.
  • The package is then placed into a cardboard box for shipment. The package will be marked with the date of shipment and a tracking number.
  • The package will be shipped via an express shipping method and insured for the value of the product.
  • The customer will be provided with a tracking number and the estimated time of delivery.
