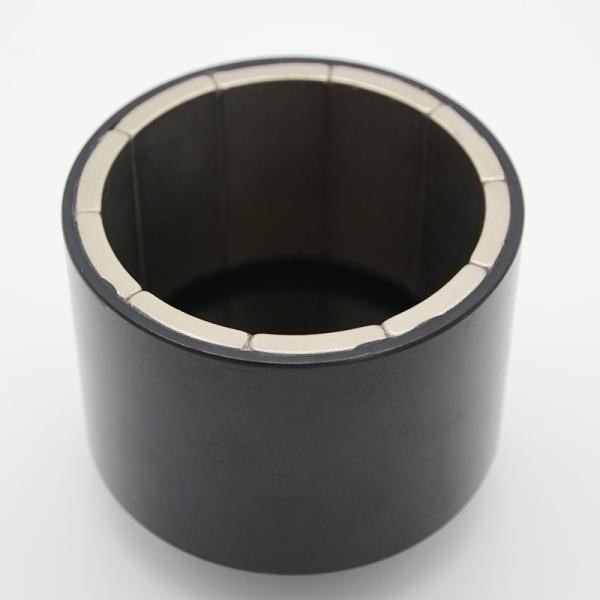

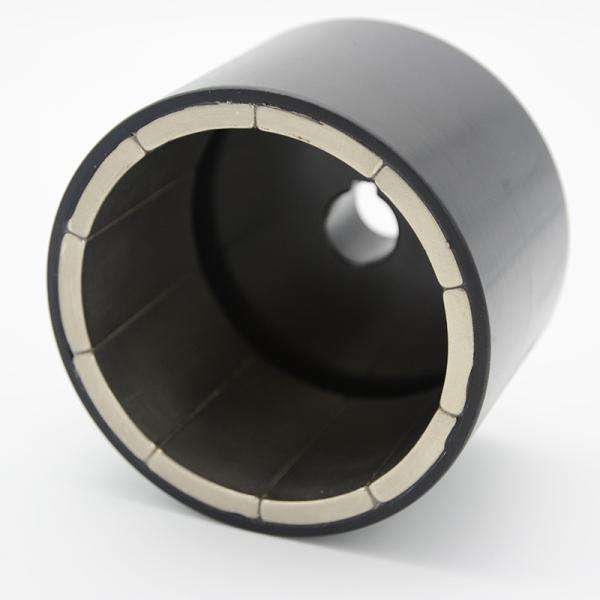

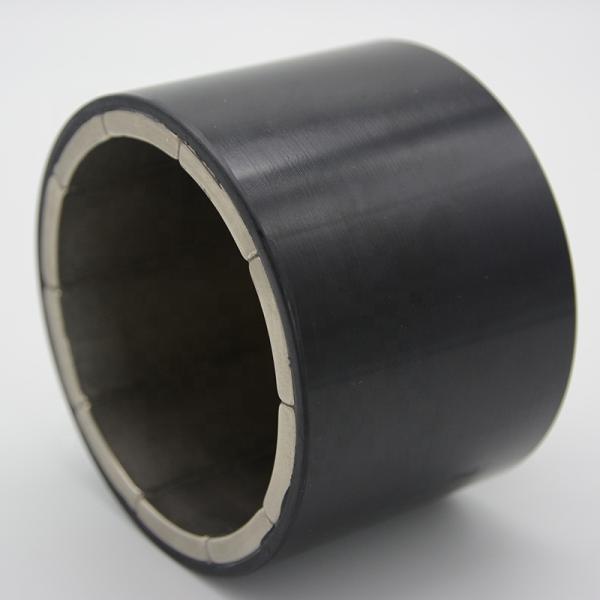

Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Specifications
Place of Origin :
Chongqing, China
Brand Name :
Great Well
Model Number :
Magnetic coupling
Supply Ability :
10000 Set/Sets per Month
Packaging Details :
Magnetism shield package for the Express and Air shipments by putting iron sheets/plates between foam form and outer carton.
MOQ :
1 Piece/Pieces
Price :
$10.00 - $500.00 / Piece
Type :
Permanent
Composite :
Neodymium Magnet
Shape :
Customize
Application :
Industrial Magnet
Tolerance :
±20%, Standard Tolerance
Processing Service :
Cutting
Grade :
Neodymium Magnet
Product name :
Permanent Magnetic Coupling
Features :
High Positioning Accuracy
Size :
Customized
Working Temperature :
20-500 Degree Celcius
Delivery Time :
25--30 working days
Magnetic Force :
Customized
Type of NdFeB :
N, NM, NH, SH, UH, EH, AH
Surface Treatment :
Zn coating etc.
Sample :
Avaliable
Port :
Shanghai
Description

Permanent Stainless Magnetic Coupling With Good Price

The structure of the magnetic coupling is simple, the shaft connection between the motor and the load is non-contact, the requirements for the accuracy are low, and the installation and debugging are fast. Because it is pure mechanical equipment, there is no complex electronic equipment. After a simple training, the maintenance personnel or electrical personnel of the power plant will quickly determine the cause of the fault, and quickly solve the problem by themselves, without having to ask someone from a professional company to repair it. Its service life can reach 30 years.

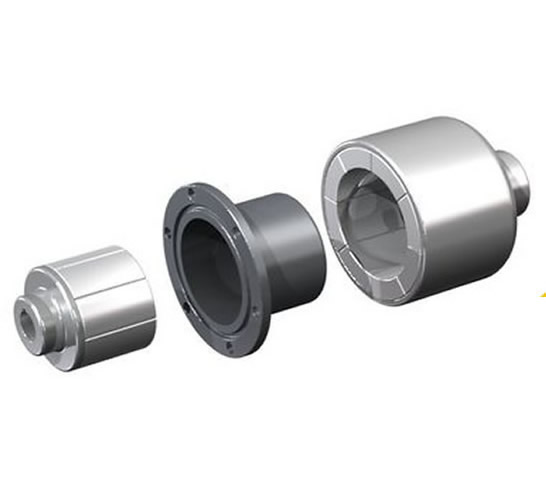

Magnetic coupling is also called magnetic coupling and permanent magnetic transmission device. It is mainly composed of copper rotor, permanent magnet rotor and controller. Generally, the copper rotor is connected with the motor shaft, and the permanent magnet rotor is connected with the working machine shaft. There is an air gap between the copper rotor and the permanent magnet rotor, and there is no mechanical connection to transfer torque. A soft (magnetic) connection is formed between the motor and the working machine, and the change of the shaft torque and speed of the working machine is realized by adjusting the air gap. Due to the different air gap adjustment methods, permanent magnet eddy current drive can be divided into standard type, delay type, torque limiting type, speed regulating type and other different types. Magnetic Coupling is mainly used in different types of fans, water pumps, material conveyors, bucket elevators, ball mills, hoists, crushers, blenders, stranders and other mechanical equipment.


Product Paramenters
Product Name
Permanent Stainless Magnetic Coupling With Good Price
Place of Origin
Chongqing,China
Size
Customised
Application
All kinds of industrial machine
Material
Permanent magnet
Certification
ROHS
Tolerance
Custom Drawing
Features
Environment Friendly
Applicable Industries
Manufacturing Plant, Machinery Repair Shop

Stainless Permanent Magnetic Coupling

Products Description
Stainless Permanent Magnetic Coupling
Product Display
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
Stainless Permanent Magnetic Coupling
