Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
Specifications
Brand Name :
YYMAG
Model Number :
Bonded Neodymium Magnet
Certification :
ISO9001:2015; SGS
Place of Origin :
China
MOQ :
100pcs
Price :
US$0.5-5/pc
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000000pcs/momth
Delivery Time :
20-25 days
Packaging Details :
Standard export packing
Type :
Permanent
Shape :
Ring
Application :
Industrial Magnet
Composite :
Neodymium-Iron-Boron
Coating :
Epoxy
Size :
Customers' Request
Tolerance :
+/-0.05mm
Material :
Neodymium iron boron
Magnetism direction :
Thickness. Axial. Radial. Radiation,according to requirement
Color :
Black
Testing :
Gaussmeter,SST,Salt Spray Testing,Tensiometer
Description

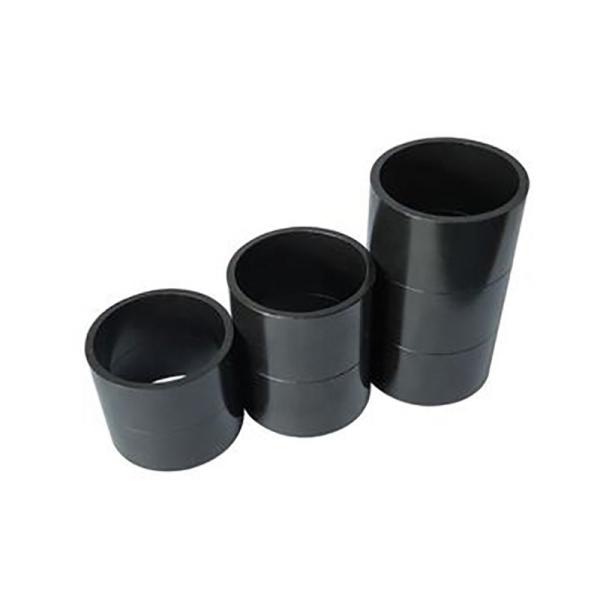

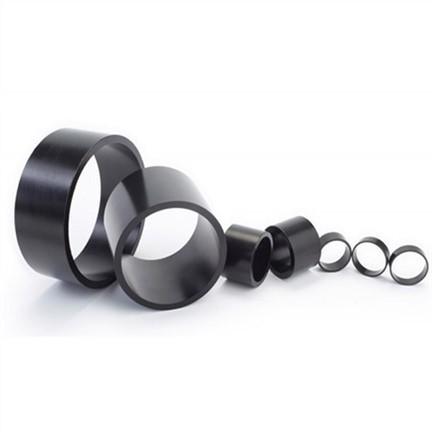

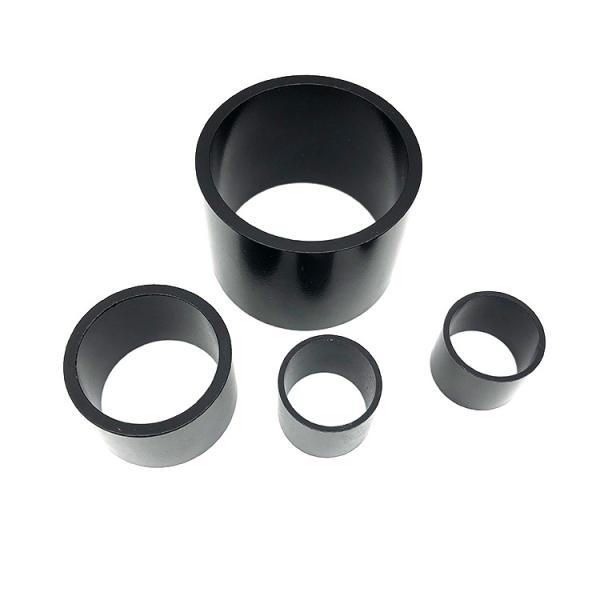

Customized Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating

Customized Multi Poles Injection Molded Anisotropic Bonded Neodymium Magnets

Bonded Neodymium magnets are made of the powerful Nd-Fe-B material mixed into an epoxy binder. The mix is approximately 97 vol% magnet material to 3 vol% epoxy. The manufacturing process involves combining Nd-Fe-B powder with an epoxy binder and compressing the mixture in a press and curing the part in an oven.

Product Name Customized Multi Poles Injection Molded Anisotropic Bonded Neodymium Magnets
Material Bonded NdFeB
Coating Black Epoxy
Max Operating Temp 150°C
Shape Ring
Used Industrial Magnet

Advantages Of Compression Bonded Magnets

1: Higher magnetic strength than injection molded magnet.

2: High corrosion resistance (Epoxy coating, parylene coating) and temperature resistance, the salt spray teasting >72 hours

3: Magnetizing with complex patterns (Multi-poles on OD, ID, end face (axial), radial, helical magnetization......)

4: Higher magnetic property (Br: 3500-8000G, BHmax: 3-12MGOe, Hcj: 4000-17000 Oe

5: Complicated shape

Typical Bonded Magnet Applications:

Sensors

Brushless DC Motors

General Bonded Magnet Applications:

Materials are isotropic and can be magnetized in any direction

Wide range of existing tool sizes are available in rings, discs and rectangles

Exsisting Multipole magnetizing fixtures for quick prototyping

Easily machined

Existing Multipole rings simplify assembly verse arc sepments

Multi Poles Anisotropic Bonded Neodymium Magnets With Epoxy Coating
