Pneumatic power tool Gas nail gun GN90

Application:

Widely used for concrete, metal, brickwork and rocky structures.

Fastening of doors and windows, interior finishing and electrical engineering.

Nail length: 15-40mm

Work theory:
Fixed amount of gas will come out by pressing the fuse one time, which comes out by the dosing pump in the top of the fuel cell. The gas go to the cylinder chamber and explode to generate impetus to push nails shooting.

GN90 Cordless Gas Concrete Nail Gun

Model:GN90
Weight:3.6kg
Dimension:455×388×110 mm
Magazine Capacity:30 nails

Fuel Cell Life:1200 nails
Battery Life:4000 nails per charge
Speed:2-3 nails per second, no more than 1500 nails/hour or 5000 nails/day

Feature:
Battery+fuel cell: 1000-12000 shot for one fuel cell, 3000-4000 shot for battery charge one time.
Nail load each time:30 pcs
No need gas pipe, no need air compressor.
It can work under off-power condition, the battery is chargeable and portable, high efficient.
Compared to the powder actuated nail gun, this gas actuated nail gun has 2 advantages:
Higher efficient
Low cost
Shorten working time
Labor-saving.

Equipped with CF165 Fuel Cell(31.5*165mm,80ml/40g)

Equipped with 15-40mm Nails

Company & Service

Established in 2013, Liyufujie professionally supply power actuated guns, gas nail guns and their accessories ( nails, powder loads, fuel cells) worldwide. A team of engineers engaged in this field for 8-25 years. A team of sales have good knowledge of products and high level of foreign language to give you good service. We exported our products to more than 20 countries.In China, we have more than 20 shops in the big construction market, all of the below listed items are on sale.

Advantage:

1. Our factory has already passed SGS/BV factory inspection;

2. Strict quality control process can guarantee the high quality;

3.Competitive price, good quality,fast shipment,good service.

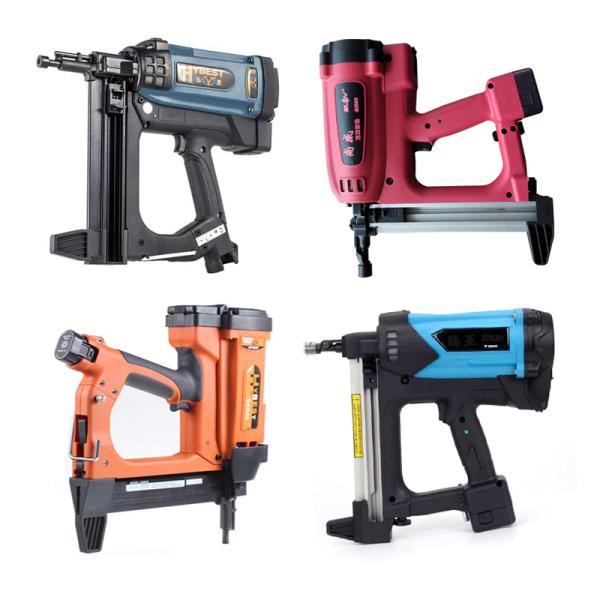

More Gas Concrete Nailers

Product Family Portrait
