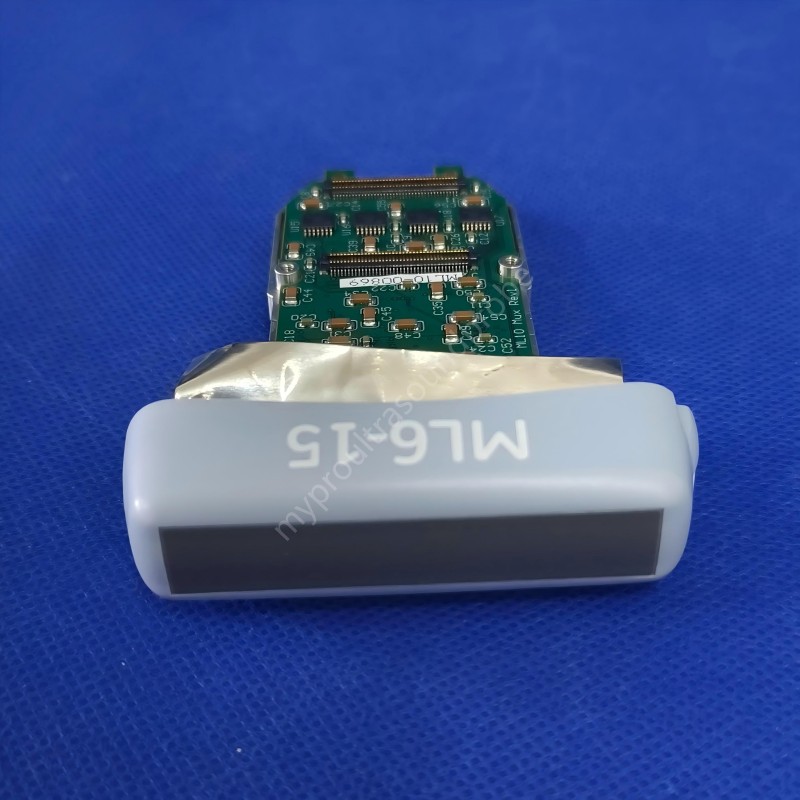

GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis
GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis
GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis
GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis
Specifications
Material :
Plastic,Metal
Service :
Online technical support; Return & Replacement; Send back for repair
Place of Origin :
China
Delivery Time :
5-8 work days
MOQ :
1 Piece
Brand Name :
MYPRO
Supply Ability :
2000 pieces per year
Price :
Negotiable
Packaging Details :
Carton, 420mm*270mm*100mm for 1 probe
Application :
Vascular, Smallparts, MSK etc.
Function :
Medical Diagnosis
Payment Terms :
T/T,Western Union
Description
GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead
GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis
Product Specifications
Product Property Details
Product Type Ultrasound Probe Array / Crystal / Scanhead / Acoustic Module / Transducer
Brand GE
Model Number ML6-15
Probe Type Matrix Linear
GE ML6-15 Matrix Linear Array Transducer Ultrasound Scanhead for Vascular Imaging and Medical Diagnosis
Ultrasound Transducer Technical Overview
1. Material Composition
The active element is typically made of piezoelectric crystals or newer materials for higher sensitivity and bandwidth. The lens or matching layer is often composed of acoustic polymers to optimize impedance matching between the transducer and tissue.
2. Frequency Range
Operates at specific frequencies, with higher frequencies offering better resolution but shallower penetration. Multi-frequency probes support adjustable frequencies for different imaging depths.
3. Array Configuration
  • Linear array: Flat footprint, high near-field resolution (e.g., vascular imaging)
  • Curved array (convex): Wider field of view for deep abdominal scans
  • Phased array: Small footprint with steering capability (e.g., cardiac imaging)
4. Aperture Size & Footprint
The physical size and shape vary by application (e.g., small footprints for interventional or pediatric use).
5. Damping Layer
A backing layer absorbs backward-directed vibrations to shorten pulse duration, improving axial resolution.
6. Matching Layer
Reduces acoustic impedance mismatch between the transducer and tissue, enhancing energy transmission.
7. Thermal & Electrical Safety
Designed to minimize heat generation (meeting FDA/IEC limits for surface temperature rise). Electrically insulated to protect patients and operators.
8. Beamforming Capability
Modern probes support dynamic focusing, electronic steering, and multi-line acquisition for real-time imaging.
9. Durability & Sterilization
Encased in robust materials (e.g., plastic, metal) resistant to wear and chemical disinfectants. Some probes are waterproof for intraoperative or endoscopic use.
10. Specialized Variants
3D/4D probes: Incorporate mechanical or matrix arrays for volumetric imaging. Intracavitary probes: Miniaturized designs for transvaginal/transrectal applications.
Available GE Transducer Models
Type Original Model
convex C36, CBF3.5, 3Cb, C358, 3C, 3.5C, 4C, 4C-RS, 3C-RS, 3.8C-RC, 4C-RC, C2-5-RC, C2-5-RS, AB2-7, AB2-7-RS, AB2-7-D, C1-5-D, C1-5-RS, C1-6-D
Linear L76, L39, LH, 7L-RC, 7.5L-RC, 8L, 8L-RS, 9L, 9L-RS, 9L-D, 11L, 12L, L6-12-RC, L6-12-RS
transvaginal E72, MTZ, E8C, E8Cs, E7C-RC, E8C-RS, E8Cs-RC, E8Cs-RS, IC5-9, IC5-9H, IC5-9-D
phased array 3S, 3Sp, 3Sp-D, 3S-RC, 3S-RS, 3Sc-RS, 6S-RS, 6S-D
Matrix Cardiac M3S, M4S, M4S-RS, M5S-D, M5Sc-D
Matrix Linear ML6-15, ML6-15-D
4D TV RIC5-9, RIC5-9H, RIC5-9W, RIC5-9W-RS, RIC5-9-D, RIC6-12-D
