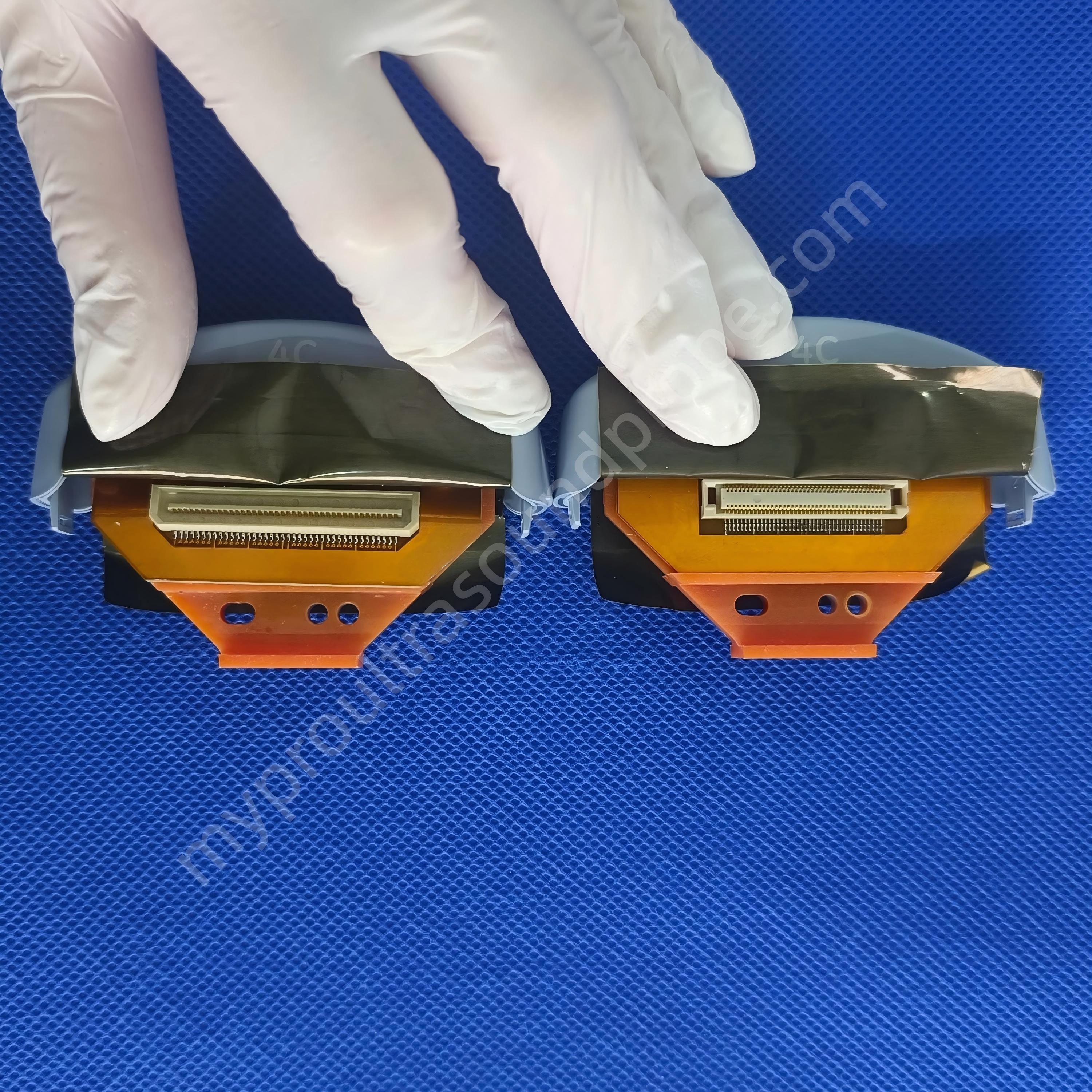

GE 4C Convex Ultrasound Probe with 3.5 MHz Frequency and 128 Elements Scanhead Acoustic Module
GE 4C Convex Ultrasound Probe with 3.5 MHz Frequency and 128 Elements Scanhead Acoustic Module
GE 4C Convex Ultrasound Probe with 3.5 MHz Frequency and 128 Elements Scanhead Acoustic Module
GE 4C Convex Ultrasound Probe with 3.5 MHz Frequency and 128 Elements Scanhead Acoustic Module
Specifications
Place of Origin :
China
Material :
Plastic,Metal
Payment Terms :
T/T,Western Union
Warranty :
1 Year
Delivery Time :
5-8 work days
Supply Ability :
2000 pieces per year
Service :
Online technical support; Return & Replacement; Send back for repair
MOQ :
1 Piece
Function :
Medical Diagnosis
Packaging Details :
420mm*270mm*100mm for 1 probe
Brand Name :
MYPRO
Application :
Abdominal, Ob/Gyn
Price :
Negotiable
Packing :
Carton
Description
GE 4C Crystal In Ultrasound Convex Ultrasound Scanner Scanhead Acoustic Module
Product Specifications
Product Property Details
Type Ultrasound Probe Array / Crystal / Scanhead / Acoustic Module / Transducer
Brand GE
Model Number 4C
Probe Type Convex
Central Frequency (MHz) 3.5
Elements Number 128
GE 4C Convex Ultrasound Probe with 3.5 MHz Frequency and 128 Elements Scanhead Acoustic Module
Ultrasound Probe Technical Overview
  • Material Composition: Active element made of piezoelectric crystals or newer materials for higher sensitivity and bandwidth. Lens or matching layer composed of acoustic polymers to optimize impedance matching between transducer and tissue.
  • Frequency Range: Operates at specific frequencies (e.g., 2-15 MHz for clinical use), with higher frequencies offering better resolution but shallower penetration. Multi-frequency probes support adjustable frequencies for different imaging depths.
  • Array Configuration: Curved array (convex) providing wider field of view for deep abdominal scans.
  • Aperture Size & Footprint: Physical size and shape vary by application, with small footprints for interventional or pediatric use.
  • Damping Layer: Backing layer absorbs backward-directed vibrations to shorten pulse duration, improving axial resolution.
  • Matching Layer: Reduces acoustic impedance mismatch between transducer and tissue, enhancing energy transmission.
  • Thermal & Electrical Safety: Designed to minimize heat generation (meeting FDA/IEC limits for surface temperature rise). Electrically insulated to protect patients and operators.
  • Beamforming Capability: Supports dynamic focusing, electronic steering, and multi-line acquisition for real-time imaging.
  • Durability & Sterilization: Encased in robust materials resistant to wear and chemical disinfectants. Some probes are waterproof for intraoperative or endoscopic use.
  • Specialized Variants: Includes 3D/4D probes with mechanical or matrix arrays for volumetric imaging, and intracavitary probes with miniaturized designs for transvaginal/transrectal applications.
Other Available GE Probe Models
Type Original Model
Convex C36, CBF3.5, 3Cb, C358, 3C, 3.5C, 4C, 4C-RS, 3C-RS, 3.8C-RC, 4C-RC, C2-5-RC, C2-5-RS, AB2-7, AB2-7-RS, AB2-7-D, C1-5-D, C1-5-RS, C1-6-D
Linear L76, L39, LH, 7L-RC, 7.5L-RC, 8L, 8L-RS, 9L, 9L-RS, 9L-D, 11L, 12L, L6-12-RC, L6-12-RS
Transvaginal E72, MTZ, E8C, E8Cs, E7C-RC, E8C-RS, E8Cs-RC, E8Cs-RS, IC5-9, IC5-9H, IC5-9-D
Phased Array 3S, 3Sp, 3Sp-D, 3S-RC, 3S-RS, 3Sc-RS, 6S-RS, 6S-D
Matrix Cardiac M3S, M4S, M4S-RS, M5S-D, M5Sc-D
Matrix Linear ML6-15, ML6-15-D
4D TV RIC5-9, RIC5-9H, RIC5-9W, RIC5-9W-RS, RIC5-9-D, RIC6-12-D
