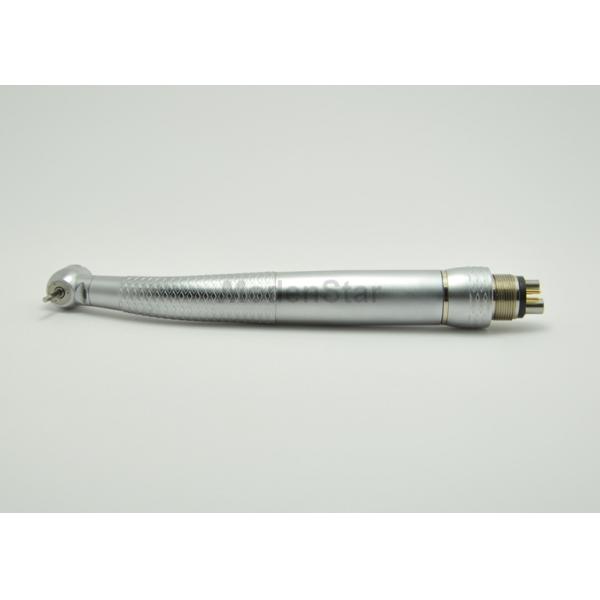

Hard Glass Fiber KAVO Surgical Handpiece Compatible With KAVO Multifelx Lux

KAVO Fiber Optic Handpiece

Description:

6-Hole Fiber Optic Handpiece With Quick Couplin

Chuck Type:Push Button, Compatible with KAVO Multifelx Lux

Bearing:Stainless bearing

Spray:Triple water spray

Working Air Pressure:0.20-0.25MPa(0.22MPa prefrred)

Rotation Speed:350,000-400,000R.P.M(Standard Head);

280,000-320,000R.P.M(Torque Head);

Bur Applicable:Φ1.595-1.600mm

Features:

1. Professional LED light xource, superior brightness, longevity 20,000 hours
2. Unique electric generator, just a little air can generate sufficient power
3. Four water spray and anti-retraction system to provide a fine spay mist for better

visibility,cooling and cutting speed
4. High-grade material with a stylish design
5. This fiber optic handpiece also equipped with fiber optic quick coupling head,

after treatment,the quick coupling does not need to disinfect, only disinfecting the

handpiece handle is enough. This design can extend the working life of the light

Product Parts:

Consists of handpiece head, handle, caudal thread, cartridge.
Working Conditions:
1. Air pressure 0.25~0.30mpa,must be filtrated.
2. Use high speed dental bur with shaft diameter Φ1.59~1.60mm×21-23mm and roghtness less than 0.8um.
3. The amount of handpieces spray or water spray should be able to adjusted.
4. Hard glass fiber,can be repeatedly sterilized in high temperautre and pressure.
Product Scope:
Only used for drilling, molar of stomatology clamping high-speed dental burs.

HPA012(N) Handpiece we Provide Two Kind Of Head For Choice

Environmet-friendly fiber opitic handpiece tube:
If the dental unit don’t have the optical fiber system,please insert our optical fiber tubing and electricity borad in the dental ubit,
then it can use our optical fiber handpiece and inclube the high speed handpiece which compliance with international standards.

Electricity board:
1. Power in:12-24VFIBER OPTIC HANDPIECE
2. Power out:2.5-3.5V(adjustable)FIBER OPTIC HANDPIECE
3. Output delay:0-12s(adjustable)
4. Linkage air pressure:P＞0.2Mpa
5. Control ways:2 ways
