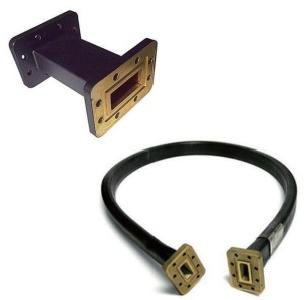

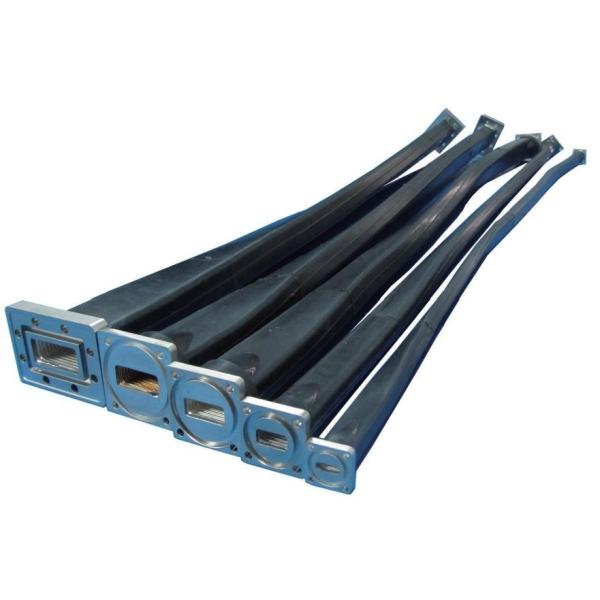

Twist Flex Waveguid Accessories For Microwave Antennas
Twist Flex Waveguid Accessories For Microwave Antennas
Twist Flex Waveguid Accessories For Microwave Antennas
Twist Flex Waveguid Accessories For Microwave Antennas
Specifications
Brand Name :
Famous
Model Number :
Twist-Flex Waveguid
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T ， L/C
Packaging Details :
Standard export packaging/customizable packaging
Certification :
CE，ISO9001
Name :
Twist-Flex Waveguid
Description

Construction

·Inner:Brass

·Outer:Silicone/S-7

Features

·Low VSWR,Low loss

·Good flexible and twistable

·Stabile capability during flexing and twisting

Application

·Microwave relay,Broadcast

lype

Freg

Flange

VSWR

nsertion loss

 Peak Power

Dimensions

Weight

 (mm) Min Bend Radius
GHz Max dB/100m Kw mm Kg/m E弯 H弯
BRA58 WR159 4.90~7.05 1.10 0.22 2.5 40.39×20.19 170 129 258
BRA70 WR137 5.85~8.20 1.10 0.25 2.0 34.85×15.80 205 100 200
5.850~6.425 6.425~7.125 7.125~7.725 7.725~8.200

1.06

1.06

1.06

1.06
BRA84 WR112 7.05~10.00 1.10 0.30 1.5 28.50×12.62 262 76 152
7.125~7.725 7.725~8.500

1.06

1.06
BRA100 WR90 8.20~12.40 1.10 0.40 1 22.86×10.16 308 66 132
10.70~11.70 1.06
BRA120 WR75 10.0~15.0 1.15 0.50 0.75 19.05×9.53 360 63 126
12.75~13.25 13.75~14.50

1.10

1.10
BRA140 WR62 12.4~18.0 1.15 0.80 0.4 15.80×7.90 436 56 112
12.70~13.25 14.25~15.35

1.10

1.10
BRA180 WR51 15.0~22.0 1.15 1.10 0.2 12.95×6.48 445 50 100
BRA220 WR42 17.7~26.5 1.20 1.20 0.1 10.67×4.32 510 38 76
21.2~23.6 1.15
BRA260 WR34 22.0~33.0 1.20 1.50 0.1 8.64×4.32 510 35 70
BRA320 WR28 26.5~40.0 1.20 2.00 0.075 7.11×3.56 510 20 40
BRA400 WR22 40.5~43.5 1.30 2.70 0.025 5.69×2.85 510 18 36

Twist Flex Waveguid Accessories For Microwave AntennasTwist Flex Waveguid Accessories For Microwave Antennas
