380V 220V Circuit Breaker Accessories Siemens Circuit Breaker Secondary Socket
380V 220V Circuit Breaker Accessories Siemens Circuit Breaker Secondary Socket
Specifications
Brand Name :
MacweyTEK
Model Number :
JN2-10 (24 cores)
Certification :
IEC Test Report
MOQ :
1pc
Price :
$10-$40
Payment Terms :
T/T
Supply Ability :
3000 pcs
Delivery Time :
10 days
Packaging Details :
carton
Name :
Circuit Breaker Accessories
Rated voltage :
AC380V, DC220V
Rated current :
AC16A, DC10A
Mechanical life :
2000 times
Contact Cores :
24 Contact Cores
Module :
JN2-10
Description

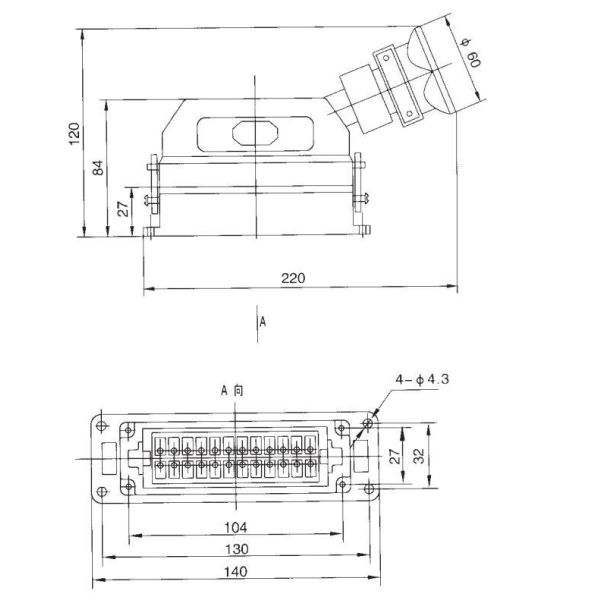

JN2-10(24 cores) Secondary Connector Socket for Siemens Circuit Breaker


Structural Features:

The connector socket's contact is with design of plug pin and plug hole, the quantity of contact get 24 cores

Compared with similar imported products, we improved the connector (between socket base and flexible pipe ) and fixed seat,

matched with plastic flexible pipe ( inside coated with metal spring ), beautiful outside design, comfortable hand feeling, easy operation,

what's more, it gets positioning device, which could avoid disoperation.

Connecting Way: Open the connector socket's locking device, separate plug from socket, respectively take down the cover plate,
put cable in plug pin or plug hole's wiring holes, an fasten it with special clamp. Plug pin or plug hole is respectively put in the matched
mounting holes of plug or socket base matched, when hearing a sound of crack, the mounting is in right place. The cable is out from
wire lead, and matched with professional plastic soft pipe M36*8 (inside coated with metal spring), cover plates respectively fixed on
plug and socket base, another side of cables fixed on equipment by a special turn head. Connector socket cables is lead out from the
bottom, and fixed on equipment.



Basic parameter

1. Rated voltage: AC380V, DC220V

2. Rated current: AC16A, DC10A

3. Mechanical life: 2000 times
